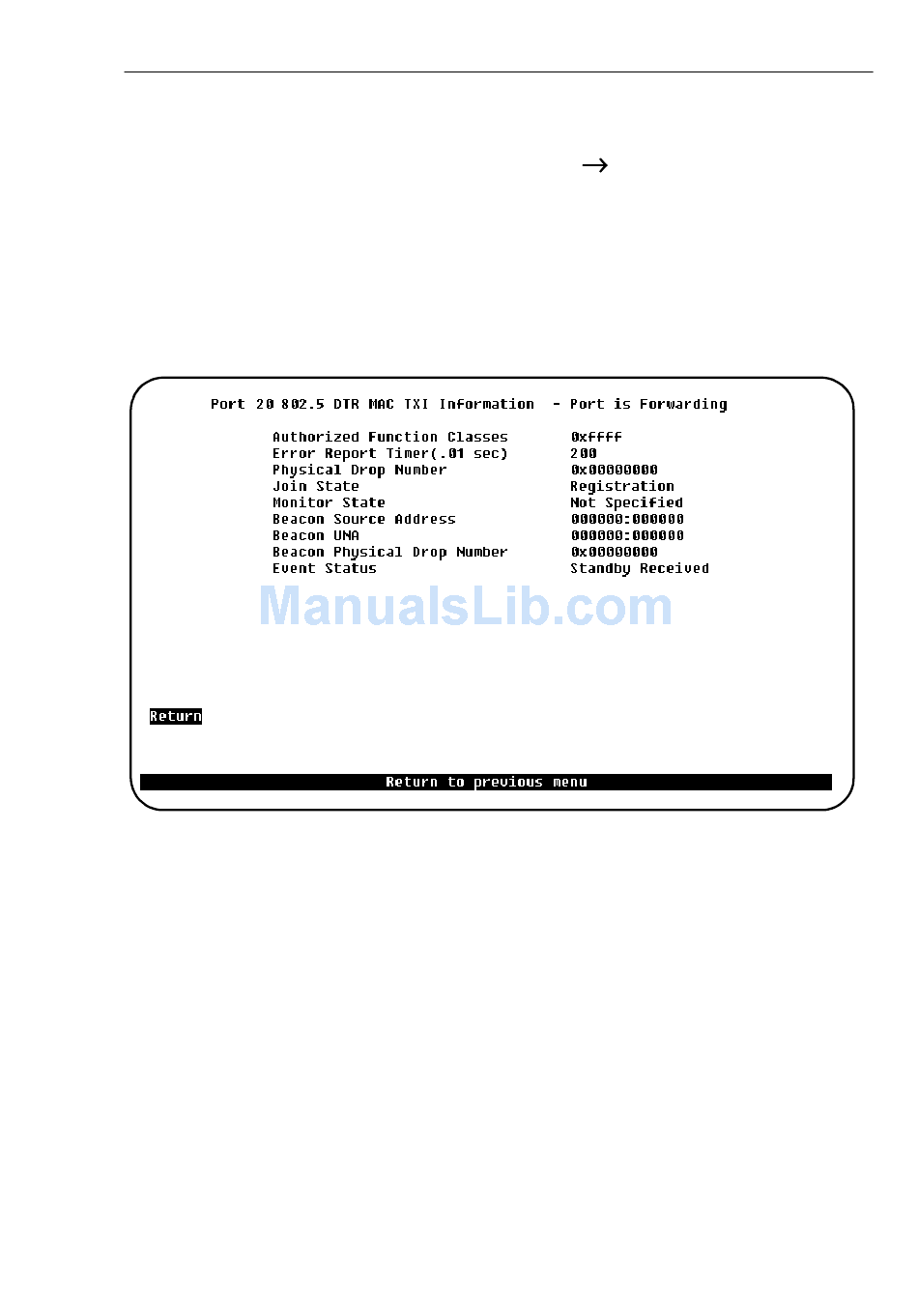

TXI Information Screen

To open this screen, do the following:
1. Starting from the main menu, select Statistics Port Statistics.
2. Enter a port number.
3. Select 802.5 DTR MAC Information...
4. Select TXI Information...
This screen provides information about IEEE 802.5 DTR MAC TXI.
Authorized Function Classes
Functional classes that a node is enabled to transmit. This field displays the value
set by the Authorized Function Classes subvector X'06' of the Change Parameters
MAC frame. Valid range is from 0x0000 to 0xFFFF. Each bit that is enabled('1')
corresponds to a function class that is enabled.
Error Report Timer
Time-out value of the ring station's soft error report timer. This field displays the
value of the timer TSER as set by the Error Timer Value subvector X'05' from the
Change Parameters or the Initialize Station MAC frame. This object indicates the
value in .01 second increments.
Physical Drop Number
Physical location of the sending ring station. This field displays the value set by the
Assign Physical Drop Number subvector X'04' of the Change Parameters or the
Monitoring the Network from the Console Statistics Menu SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
