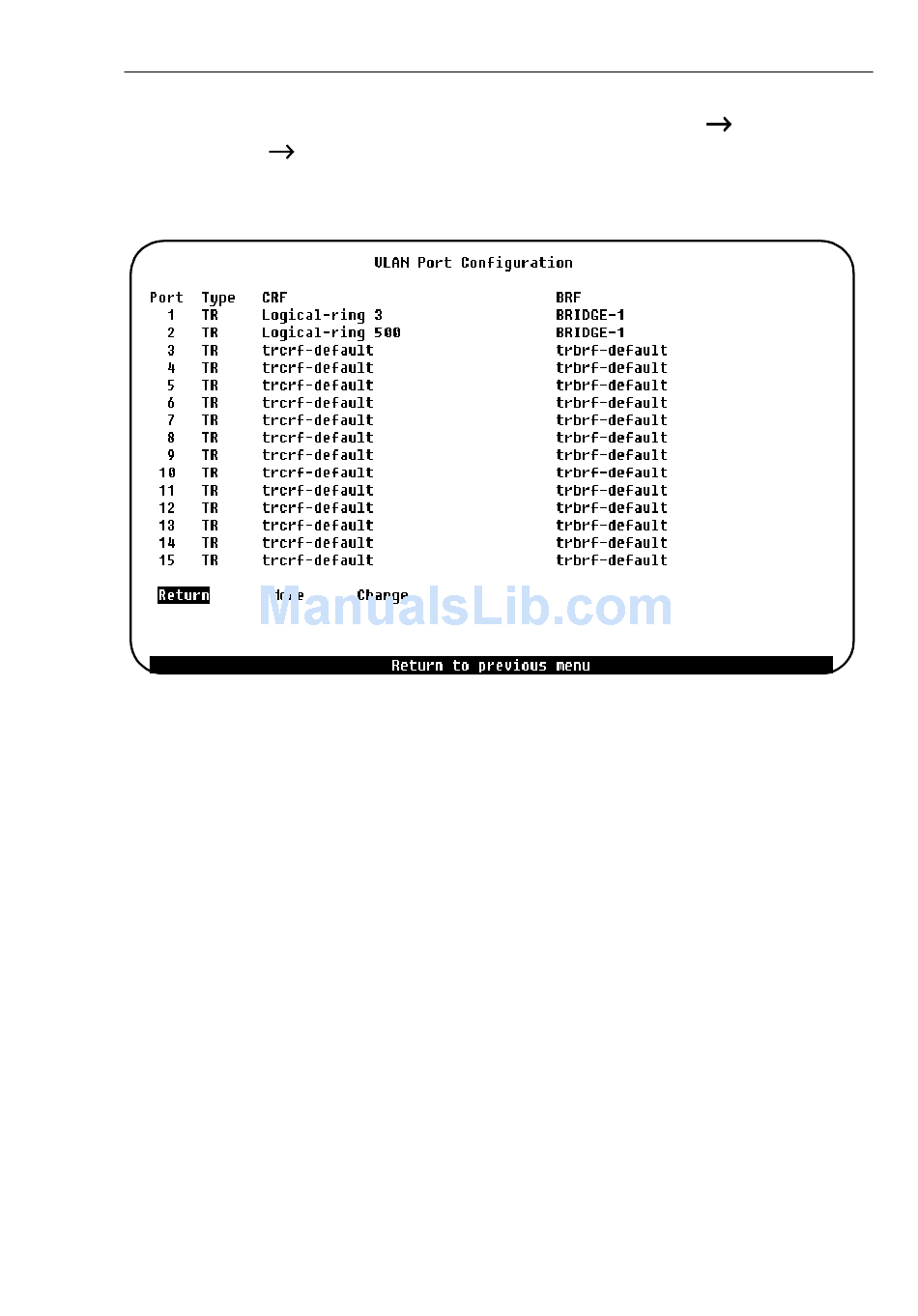

VLAN Port Configuration

To open this screen from the main menu, select Configuration
Configuration
This screen is used to view and edit current port assignments to CRFs.
Port
The port number.
Type
Port type. Possible values are:
•
TR
•
HSTR
•
ATM
•
TS
CRF
CRF to which the port is currently assigned.
BRF
Parent BRF of the CRF to which the port is currently assigned.
Switch Configuration
VLAN Port Configuration.
For Token-Ring ports.
For High-Speed Token-Ring ports.
For ATM ports.
For translational switching ports.
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
93
