Traffic to this address will be forced to ports (as specified)
Return
Return to the main menu.
More
Displays additional entries in the filter table if the table contains multiple pages.
Port (number) Security Mode
The type of security mode applied to this port.

Protocol Filters Menu

To open this menu from the main menu, select Configuration
Security. Then select Protocol Filters...
To filter data based on protocol, you can define protocol classes and then assign
filtering attributes to these classes on a per port basis. The classes in protocol
filtering are based on destination service access point (DSAP) information. In
protocol filtering, each incoming frame is assigned to one of the protocol classes
based on the DSAP or Ethertype of the frame. If the DSAP is 0xAA (which
indicates the Subnetwork Access Protocol [SNAP]), the assignment is based on the
Ethertype of the SNAP header. The mapping from DSAP or Ethertype to protocol
class is common for all switch ports in a stack.

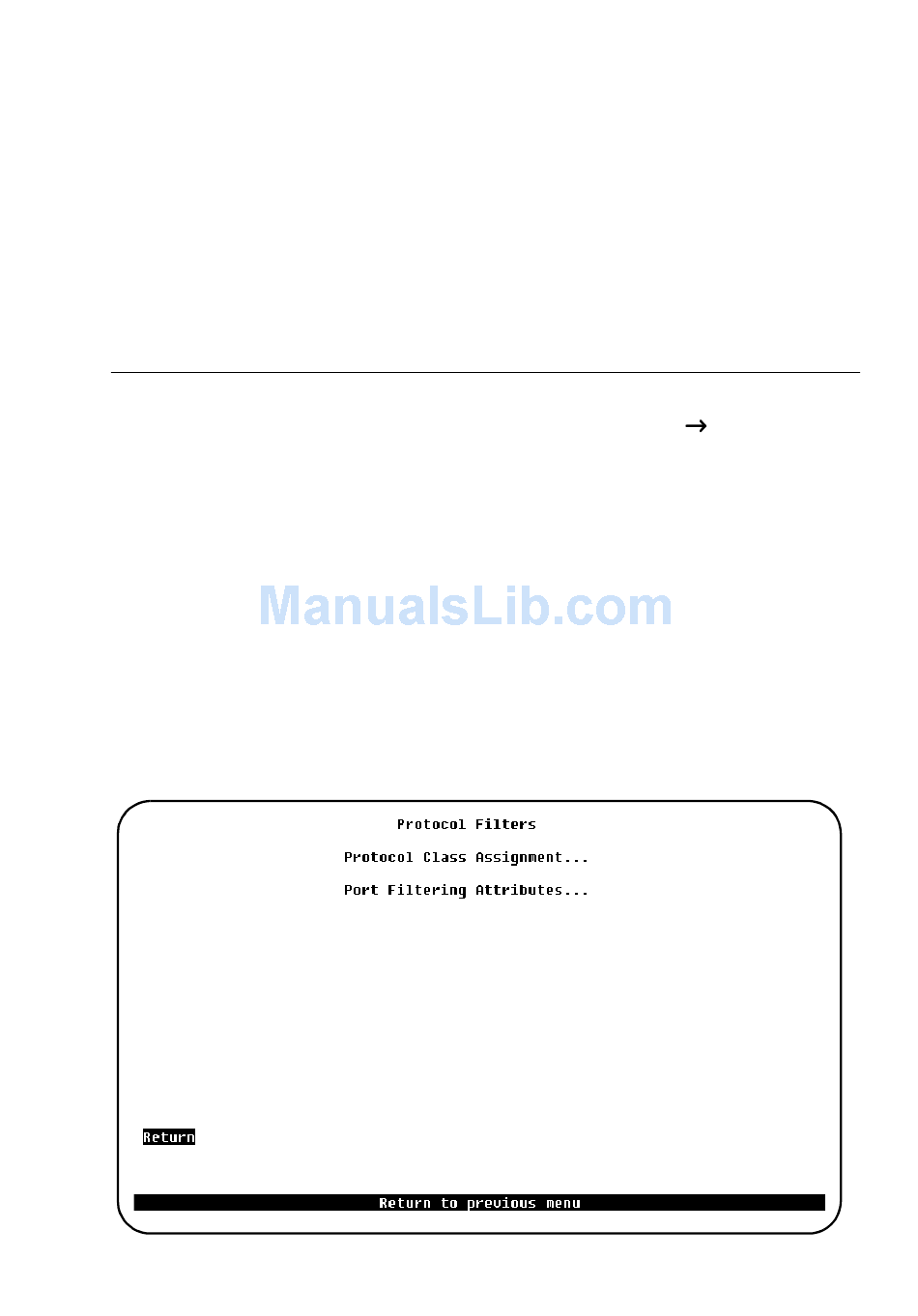

The Protocol Filters menu provides access to the Protocol Class Assignment
screen and the Port Filtering Attributes screen:
