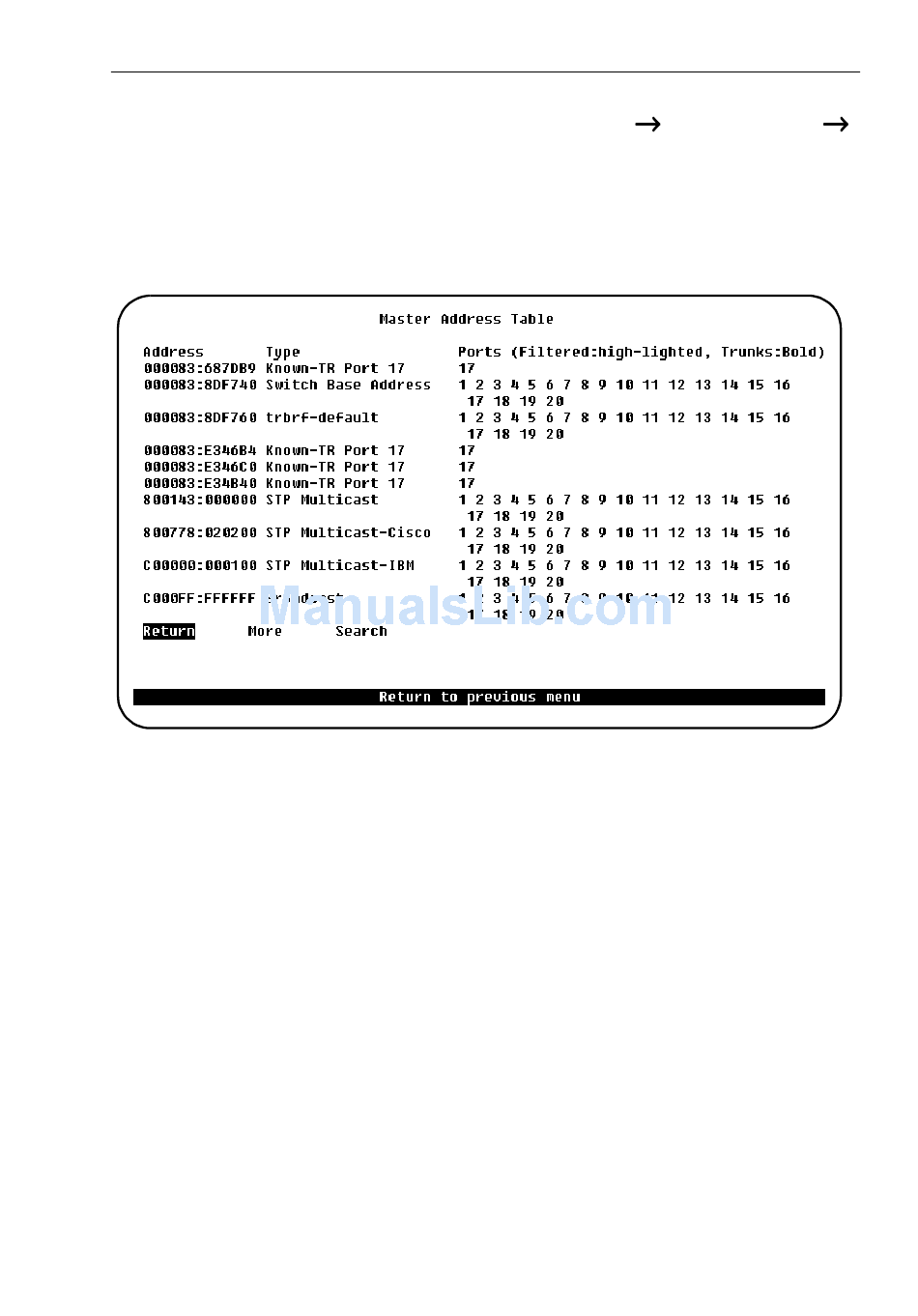

Master Address Table Screen

To open this menu from the main menu, select Statistics
Master Address Table.
This screen contains MAC addresses of all the ports known to the SmartStack
STS16-20D/STS16-20R. The table can contain up to 10,000 entries memory. See
a detailed description of MAC addresses on page 81.
Address
MAC address of a node.
Type
The Type column of the Master Address Table screen can contain the following
types:
•
Switch Base Address
—
—
•
<VLAN Name>
—
—
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
The burned-in or configured MAC Address of the switch box.
Present on all ports.
The MAC Address used by the IP Protocol Stack for the specified
VLAN.
Present on all ports of that VLAN.
Address Tables
Monitoring the Network from the Console Statistics Menu
