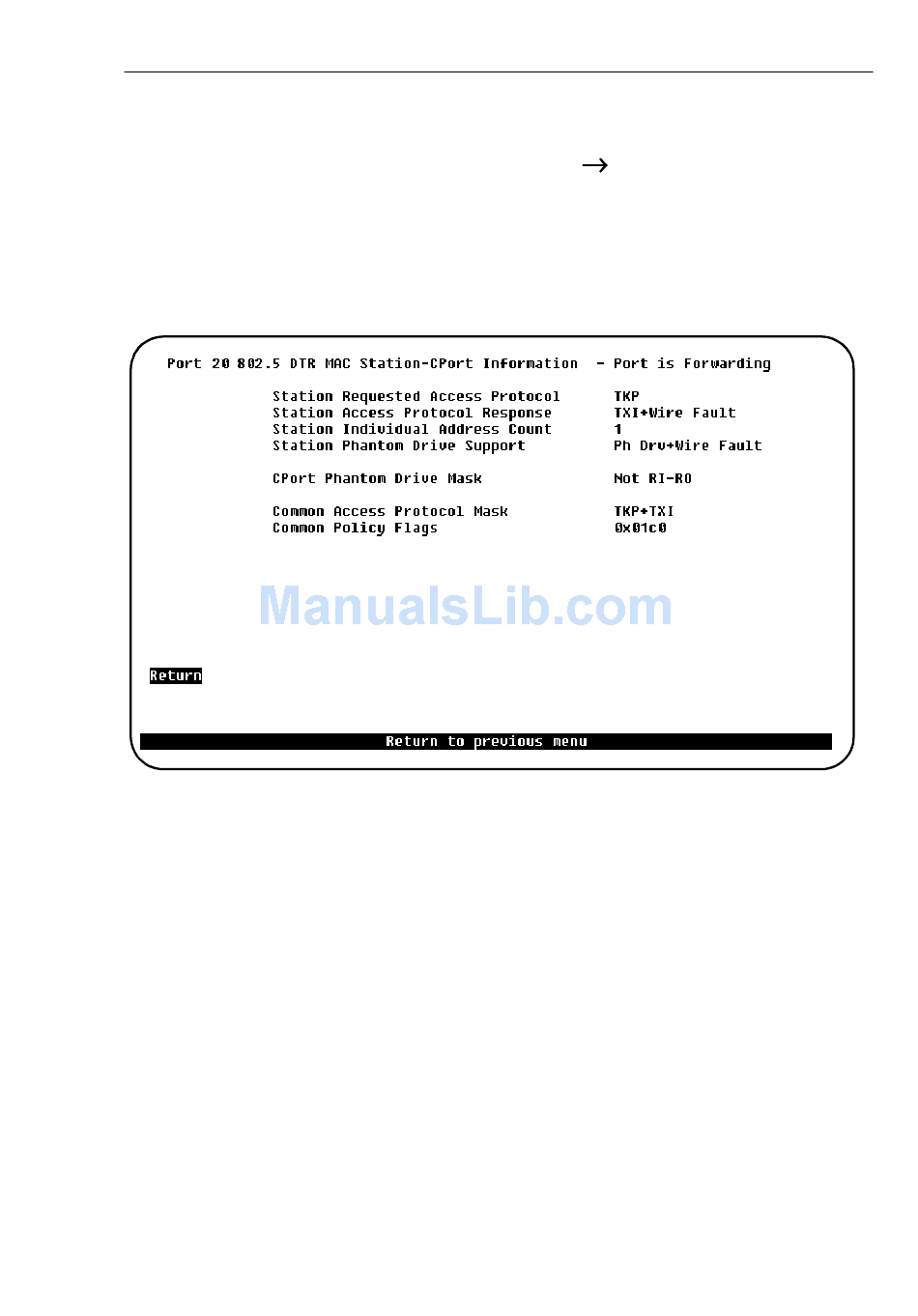

Station-CPort Information Screen

To open this screen, do the following:
1. Starting from the main menu, select Statistics Port Statistics.
2. Enter a port number.
3. Select 802.5 DTR MAC Information...
4. Select Station-CPort Information.
Station Requested Access Protocol
Protocol requested for station access. This field displays the value of the Access
Protocol Request subvector X'0E' transmitted in the Registration Request MAC
frame. Possible values are TXI and TKP.
Station Access Protocol Response
Response to protocol request. This field displays the value of the Access Protocol
Response subvector X'0F' received from the Registration Response MAC frame.
Possible values are Access Denied and FDX+Wire Fault.
Station Individual Address Count
This field displays the number of individual addresses supported by the MAC and
used in the Individual Address Count subvector X'21'. This field will always
display the value 1.
Station Phantom Drive Support
This field displays the MAC's support of Phantom Drive and Wire Fault detection.
