1. Introduction

This chapter discusses switching technology and how the SmartStack STS16-20D
and/or SmartStack STS16-20R Token Ring Switch can be used to improve network
performance. This chapter also includes a list of features and specifications for the
SmartStack STS16-20D/STS16-20R.
The topics of this chapter are presented under the following titles:
•
"Switching Technology", starting on page 2.
•
"Front Panel Details", starting on page 5 and "Back Panel Details" starting on
page 9.
•
"Features and Specifications", starting on page 10.
The front panels of the SmartStack STS16-20D Token Ring Switch and the
SmartStack STS16-20R Token Ring Switch are exactly the same, only the product
label differs. The following figure illustrates the front panel of a SmartStack
STS16-20D Token Ring Switch.

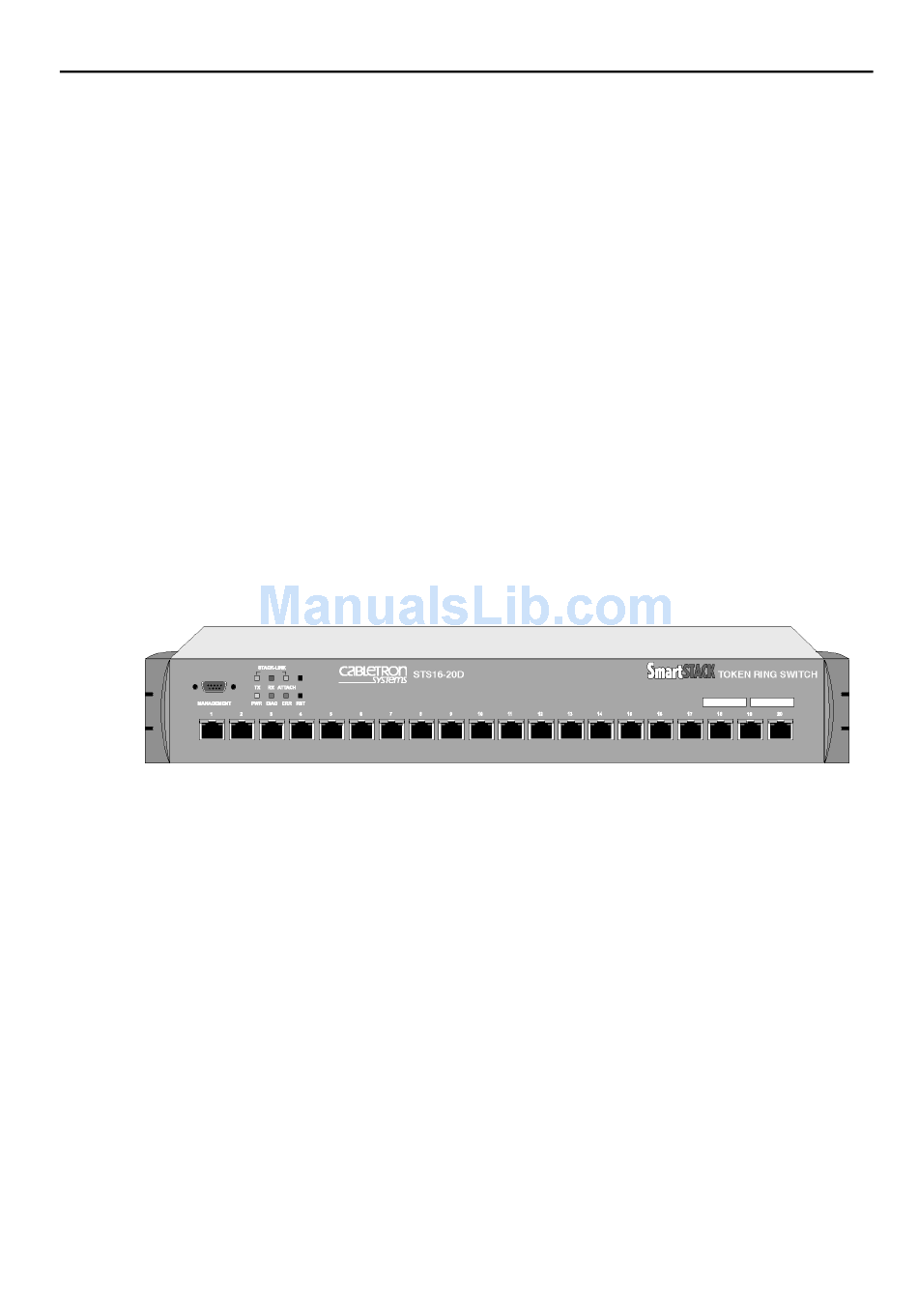

Figure 1. SmartStack STS16-20D Token Ring Switch

Introduction SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
1
