Port Configuration Screen

To open this screen do the following:
1. Starting from the main menu, select Configuration
2. You will be prompted for a port number. When you have entered the port
number, the Port Configuration screen for that port will be displayed.

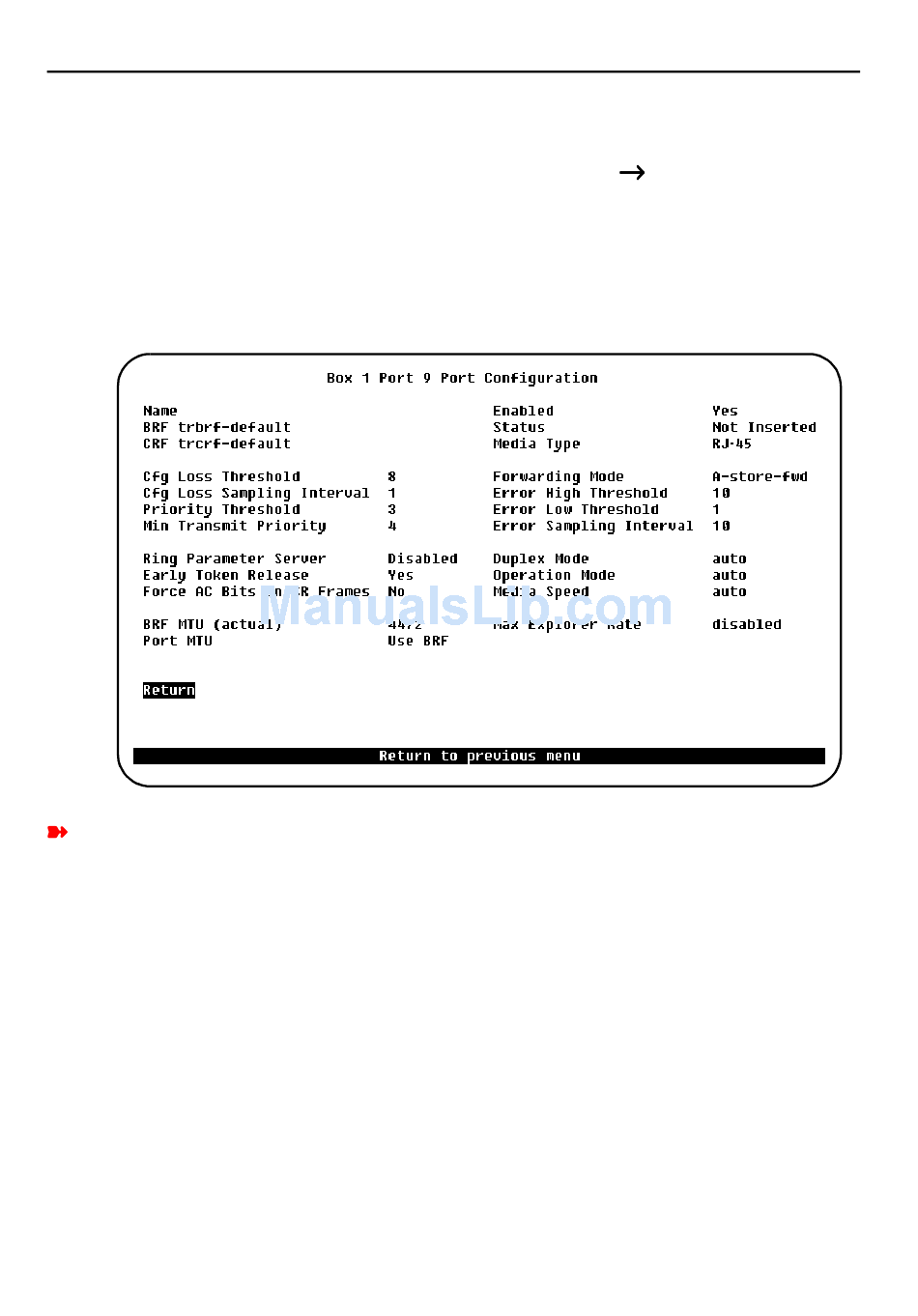

For the base switch ports, the screen will look as in the following example screen.
For the interface module ports, refer to the interface module guide.
Note: When auto is selected for fields that support the auto option, the current
operational field value shown will be prefixed with A-.
Name
This field is for assigning a name to the Token Ring port. The name can be 0–31
characters long.
BRF
This field is for informational purposes only, and shows the parent BRF of the CRF
that the port is assigned to.
CRF
This field is for informational purposes only, and shows the CRF that the port is
assigned to.
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
Port Configuration.
