General Statistics Screen

To open this screen, do the following:
1. Starting from the main menu, select Statistics Port Statistics.
2. Enter a port number.
3. Select General Statistics...

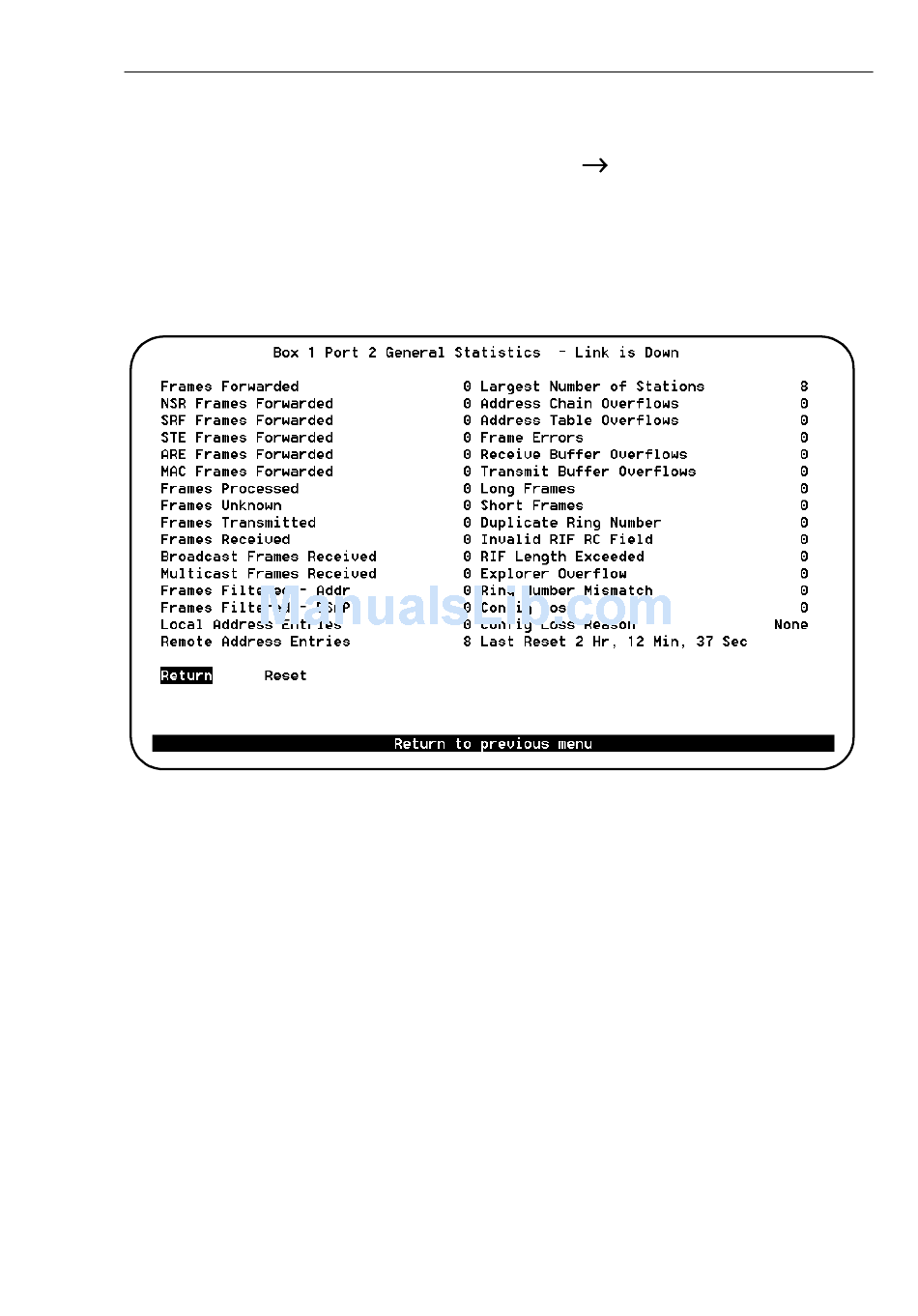

Use this screen to view detailed information about a particular port.
Frames Forwarded
Number of frames forwarded by the port, excluding those delivered to the host CPU
system software for processing, or to a monitoring port.
NSR Frames Forwarded
Number of non-source-routed frames forwarded by the port.
SRF Frames Forwarded
Number of source-routed frames forwarded by the port.
STE Frames Forwarded
Number of Spanning Tree Explorer frames forwarded by the port.
ARE Frames Forwarded
Number of All Route Explorer frames forwarded by the port.
