Switched Port Analyzer Screen

To open this screen from the main menu, select Configuration
Analyzer.

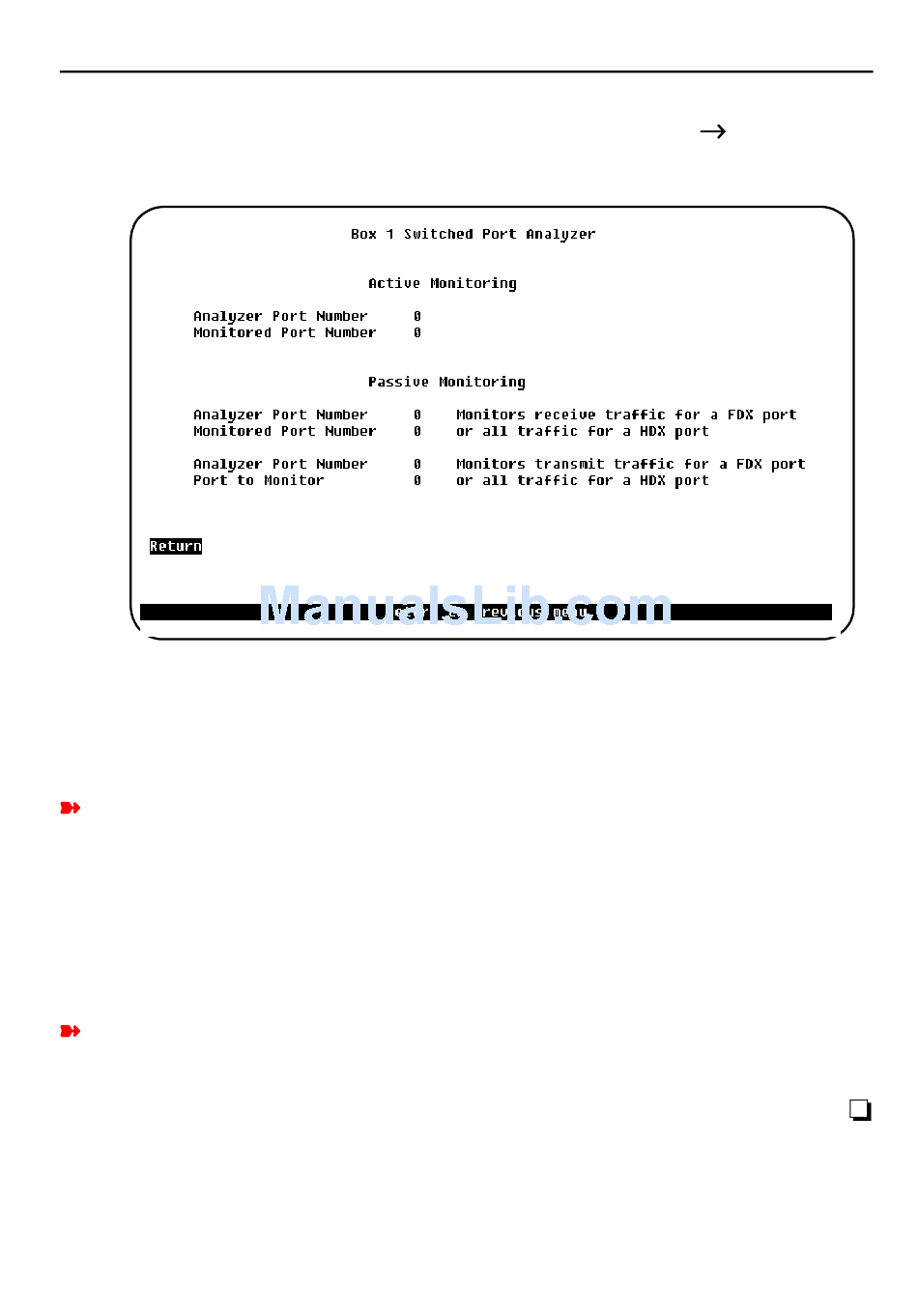

The following information is displayed on this screen:
Analyzer Port Number
The port to which the network analyzer or probe will be attached.
Note: This port should be assigned to its own CRF. For information about assigning
ports to a CRF, see "VLAN Configuration" on page 86.
Monitored Port Number
The port that will be monitored. To change a setting select it and specify the new
value. To disable the Switched Port Analyzer port, select Port to Monitor and set
it to 0. To save the changes, select Return
Note: The analyzer port and the monitored port must be on the same physical
switch, not on different switches in the stack.
