Master Route Descriptor Table Screen - Cabletron Systems SmartStack STS16-20R Installation And User Manual

180
—
•
Broadcast
—
—
•
STP Port <nn>
—
Ports
The ports whose address tables include this MAC address. Ports that have a filter
for this address are highlighted.
More
Refreshes a one-page table or displays subsequent entries on a larger table.
Search
Prompts you to enter the MAC address of a node and the ports whose address tables
you want to search, then displays the entry on the first line.

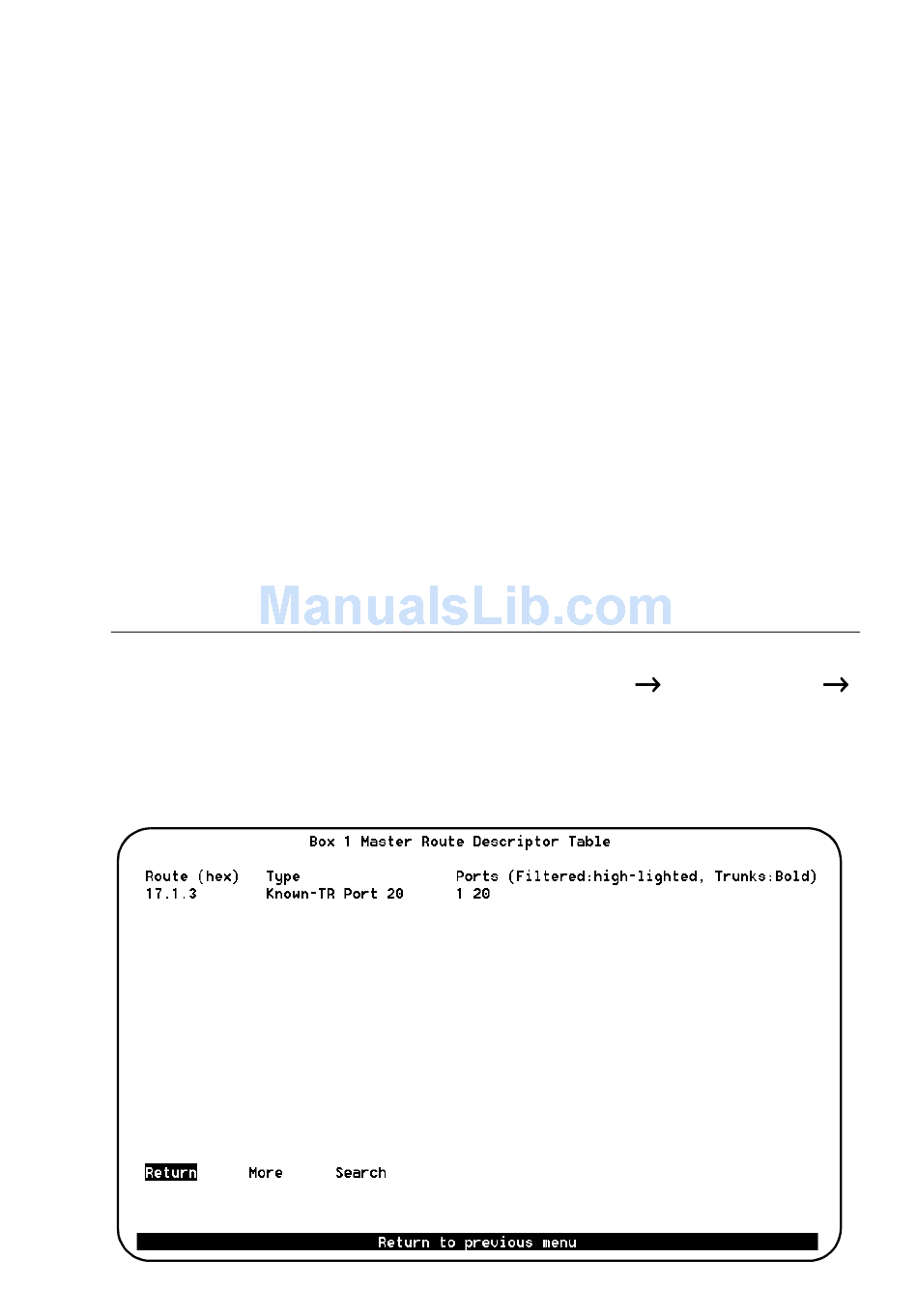

Master Route Descriptor Table Screen

To open this menu from the main menu, select Statistics
Master Route Descriptor Table.
This table lists the learned route descriptors in the switch master table. These
descriptors are contained within the 10,000 entries allowed for the master address table.
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide
Present on all ports.
One of the token-ring broadcast addresses.
Present on all ports.
The MAC Address of port nn
Address Tables
Monitoring the Network from the Console Statistics Menu
