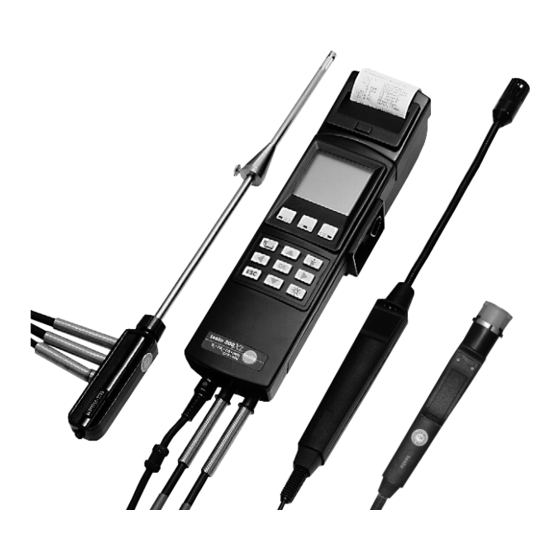

  • Page 1 300 M-I and XL-I Instruction manual...

  • Page 3: Table Of Contents

    Differential temperature measurement (testo 300 XL-I only) ....... . 25...

  • Page 4: Introduction

    Introduction Dear Customer You have made the right decision by choosing a measuring instrument from Testo. Thousands of customers buy our high standard products every year. There are at least 7 good reasons for doing so: 1) Cost-performance ratio. Reliable quality at a fair price.

  • Page 5: Initial Operation

    Flue gas probes Only flue gas probes with an integrated condensate trap or the testo compact gas drier can be connected to testo 300-I. If a probe without an integrated filter and condensate unit is connected, the analyser will break down.

  • Page 6: Diagram Of Analyser

    Meas. value to PC display/ Function menu display toolbar MEMORY CO switch off function (testo 300 XL-I only) (for measuring O , NO, SO high CO concentrations) Function button F3 Function button F2 Function button F1 CO cell in fresh air...

  • Page 7: Operating The Analyser

    Initial operation Operating the analyser Operation of the testo 300-I is organised such that you can always recognise the button functions in the display. The keyboard The function buttons enable you to quickly change instrument functions and to completely control the measurement.
  • Page 8 Initial operation Operating the analyser Inputting numerical values SSN/Heat carrier temp. The cursor first turns up at a position on the respective digit. With the arrow buttons you can increase and decrease the numerical value. H H e e a a t t c c a a r r r r i i e e r r t t e e m m p p . . : : 0 0 6 6 0 0 ° ° C C Example: If you keep the button pressed the values will increase or decrease.

  • Page 9: Power Supply

    Voltage levels can be called up in the “Operation values” menu. Testo mains unit (0554.0054) - Ensure that the contact in the testo 300 connection plug is good ( ⊂). - The rechargeable battery or battery must be in the analyser.

  • Page 10: Menu Overview

    D D A A T T E E / / T T G detect STOP only with testo 300 XL-I Selection possible via the initialising phase L L e e a a k k d d e e t t e e c c t t i i o o n n...
  • Page 11 C C U U T T O O F F F F T T H H R R E E S S H H O O L L D D (testo 300 XL-I only) O O P P E E R R A A T T I I O O N N V V A A L L U U E E S S...

  • Page 12: Gas Path Switch Function

    Initial operation Gas path switch function (testo 300 XL-I only) The gas path switch facilitates the complete separation of the CO/SO cell from the gas path. The CO cell is therefore protected from very high CO concentrations. The remaining flue gas data can still be measured.

  • Page 13: Compact Gas Preparation Unit For So Measurement With Hose (Optional)

    (optional) The compact gas preparation unit and the SO hose ideally complement the testo 300 M-I and testo 300 XL-I flue gas analysers ensuring efficient and correct measurement of the SO level in flue gases. The system consists of an adapted unit with gas hose, compact gas preparation unit and non-heated standard flue gas probe or the high- standard industrial flue gas probe.

  • Page 14: Measuring System

    P P o o w w e e r r c c o o n n n n e e c c t t i i o o n n c c a a b b l l e e quick heat On/Off Using this cable testo 300-I can be function switch...

  • Page 15: Operation

    SO measurement with hose (optional) Operation Operation is only via mains unit (Part no. 0554.0143). The testo 300-I can also be operated via the connection cable (Part no. 0449.0034) without an additional mains unit. The rechargeable battery in the instrument can be recharged via this mains unit even when the gas preparation unit is switched off.

  • Page 16: Measurement Example

    A A c c c c u u : : the testo 300-I as the ambient air temperature and is saved as R R e e m m a a i i n n . . t t i i m m e e : : 4 4 6 6 s s...

  • Page 17: Flue Gas Measurement On Burners

    Example: A separate ambient air probe is not used during the initialising phase of testo 300-I. A separate probe is connected during the measurement. The value measured by this probe is used immediately as the ambient air temperature.

  • Page 18: Flue Gas Measurement (°C, O , Co ) And Co/No/So Measurement

    Measurement example Flue gas measurement (°C, O , CO and CO/NO/SO measurement Measurement menu 1. Start measurement by pressing START. F F T T 2. Place flue gas probe in the centre of flow: Search for the max. flue gas temperature FT and then fix the probe with the cone in this position.

  • Page 19: So 2 Measurement

    Measurement example measurement The testo 300 I can also be fitted with an SO measurement module instead of the NO measuring cell. The following combinations are possible: / CO / CO / NO / CO / SO The combination O / NO / SO is not possible due to technical reasons.

  • Page 20: Printing The Measured Results

    Measurement menu The measured values can be transmitted via infrared to the attachable (testo 300 XL-I only) (Part no. 0554.0570), or the log printer (Part no. N O N A M E 0554.0545). Printing can be activated in the measurement menu by...

  • Page 21: Differential Pressure Measurement, Max. 80 Hpa/Mbar (Optional)

    Measurement example Differential pressure measurement, max. 80 hPa/mbar (optional) Do not use in the main pipe Make sure that there are no leaks between the sampling point and the analyser (leaking gas and ambient oxygen may form an explosive mixture). Do not smoke when measuring.

  • Page 22: Velocity Measurement (Optional)

    Differential pressure measurement with Pitot tubes are used to measure velocity. Highly different Pitot tubes can be used. The correct Pitot tube factor can be entered in the input menu. Testo Pitot tubes and Prantl´s Pitot tubes have a factor of 1.0. Velocity measurement can be carried out during the measurement with the pump on or separately with the pump switched off.

  • Page 23: Dew Point Measurement (Optional)

    Measurement example Dew point measurement (optional) This is a software calculation of the flue gas dew point (see calculation formula in the Calculation Information Chapter). The current absolute pressure and the dew point of the intaken air (ambient air) must be entered in the “Settings”...

  • Page 24: Table Of Dew Point Values

    Measurement example Dew point measurement (optional) Table of dew point values...

  • Page 25: Differential Temperature Measurement (Testo 300 Xl-I Only)

    Note Parallel or subsequent measurement of AT is not possible. The probe should be connected before testo 300 XL is switched on. The protective cap should be closed during the initialisation phase (otherwise the measurements may be incorrect).

  • Page 26: Leak Detection Probe (Testo 300 Xl-I Only)

    Measurement example Leak detection probe (testo 300 XL-I only) Do not use leak detection probe or testo 300 XL-I in closed rooms or facilities in which gases have collected to form an explosive mixture. The use of other electrical instruments is prohibited.

  • Page 27: Reference Section

    Reference section Menu: Smoke spot number*, oil derivatives*, heat carrier temperature Oil fuels and liquefied petroleum gas (input of smoke spot Measurement menu number as with numerical values) 1. Input the 1st smoke spot number ( increase value/ NONAME decrease value) F F T T 2.

  • Page 28: Memory Menu

    Reference section Memory menu Overview The memory in testo 300-I is organised such that a so-called “designator” must be available to name a saved measurement. This designator can be made up of maximum 20 alphanumerical characters. A designator can be, for example: - the customer´s name...

  • Page 29: Creating New Designators

    Reference section Memory menu 2. Creating new designators Measurement menu NONAME F F T T 1. Pres in the “List” window. 2. Designator is input as described under inputting text (See Initial operation Chapter on Operating the analyser) S S T T A A R R T T MEMORY DP P 3.

  • Page 30: Using Existing Designators As A Model For New Designators

    Reference section Memory menu Measurement menu 3. Using existing designators as a model for new designators NONAME F F T T 1. Select the designator which is to to be the model from the list, do not confirm with Edit. 2.

  • Page 31: Reading In A Designator With The Barcode Pen

    300 XL-I. If you have a customer whose number is not yet saved in the analyser, you can read in the number to testo 300 XL-I directly on location via the barcode. If a designator has...

  • Page 32: Procedure

    Reference section Memory menu Procedure a.) Read in a designator via the barcode pen (during the initialising phase) c o n n e c t i o n s o cke t Initialise... Initialise... A T ! A A T T A A c c c c u u R R e e m m a a i i n n .

  • Page 33: Saving Spontaneously Without Selecting A Designator

    M E M O R Y S S T T A A R R T T DP P When the analyser is switched off testo 300-I automatically asks if a N O N A M E jump to the menu is required (to select or input a memory...

  • Page 34: Deleting Saved Measurements/Designators

    S E T T I N G Certain data sets (measurements) in a designator such as, e.g. the 4th measurement in the “Testo” designator cannot be deleted. It is only possible to delete all of the data sets in a List designator.

  • Page 35: Viewing Saved Measurements

    Reference section Memory menu Viewing saved measurements Measurement menu N O N A M E A T ! 1. Select designator F F T T 2. Move tool bar DISPL S S T T A A R R T T M E M O R Y D P P 4.

  • Page 36: Printing Saved Measurements

    300-i are y y o o u u w w i i s s h h t t o o printed.

  • Page 37: Option: Memory Upgrade ((Testo 300 Xl-I Only)

    Memory upgrade option (testo 300 XL-I only) The memory capacity of testo 300XL-I can be increased from 100 to maximum 400 measurements thanks to the “memory upgrade” option. If the “memory upgrade” option is integrated in testo 300 XL-I the “SEARCH”...

  • Page 38: Fuel Menu

    Reference section Fuel menu Measurement menu NONAME Selection of the following submenus from the main menu F F T T Fuels Selectable fuels and their factors S S T T A A R R T T MEMORY D P P Hydrogen Moisture Content Content Main menu...

  • Page 39: Settings Menu

    Reference section Settings menu Measurement menu Display sequence NONAME 1. To select required line F F T T 2. “OPTION” List of all variables possible appears 3. Select parameter for this line with S S T T A A R R T T MEMORY 4.

  • Page 40: Measuring Units

    Reference section Settings menu Measuring units 1. Select the parameter with 2. “OPTION” list of all possible measuring units appears 3. Select measuring units with Measurement menu NONAME 4. Take over measuring unit with “STORE.” 5. Save settings with F F T T Possible meas.

  • Page 41: Date/Time

    Reference section Settings menu Measurement menu NONAME Date / Time F F T T Change digits with Increase value with and reduce value with Set the date and time with the button and return to the main menu. S S T T A A R R T T MEMORY D P P : return to the main menu without taking over the settings.

  • Page 42: Printer (Testo 300 Xl-I Only)

    S S E E T T T T I I N N G G P P R R I I N N T T E E R R Measurement menu Print text (testo 300 XL-I only) NONAME Select the print line: F F T T “Line 1”, “Line 2”, “Line 3”...

  • Page 43: Light

    Reference section Settings menu Measurement menu Light NONAME Select: F F T T “On / Off” means light is switched on if is pressed and is switched off by pressing again. S S T T A A R R T T MEMORY D P P “Automatic”...

  • Page 44: Dew Point

    Reference section Settings menu Dew point Measurement menu Change selection field with NONAME F F T T Increase value with , decrease value with Store set value by pressing S S T T O O R R E E . S S T T A A R R T T MEMORY D P P...

  • Page 45: Mass Flow Coefficient

    Reference section Settings menu Measurement menu Mass flow coefficient NONAME F F T T Change the selection field using Increase value with button, decrease value with Via S S T T O O R R E E the set value is stored, then jump to the next line. S S T T A A R R T T MEMORY D P P...

  • Page 46: Technical Information

    Reference section Settings menu Levels table Technical information Level Level Entering the air pressure press. press. (hPa) (hPa) In order to convert the differential pressure values, measured by the Pitot tube, to velocity the air pressure at the measurement location is needed. 1250 1013 Before the measurement this air pressure must be entered via the...

  • Page 47: Service Menu

    Reference section Service menu Measurement menu Switch-off limits NONAME In order to protect the measuring cells (CO/NO) the pump switches off F F T T automatically at concentrations >5000 ppm CO , >3750 ppm NO and > 5500 ppm SO .

  • Page 48: Operation Values

    F F T T “GT” Instrument temperature in selected measuring unit (°C or °F)* “UG” = Voltage of the Testo or non-Testo rechargeable batteries / battery in volt.** S S T T A A R R T T MEMORY D P P * (Permissible temperature: +4 to +45 °C)

  • Page 49: Recalibration

    Service menu Recalibration See Maintenance Recalibration Baud rate Measurement menu The ratio of data transfer from testo 300 to the PC and vice versa can NONAME be set here. Select , then press F F T T S S T T A A R R T T...

  • Page 50: Data Transmission

    Don´t forget the cable for connecting the analyser to the PC (Part no. 0409.0154) - Online measurement - Reading testo 300-i data memory - Transmitting designator / customer number to t t e e s s t t o o 3 3 0 0 0 0 - - i i...

  • Page 51: Maintenance

    Maintenance from the Condensate trap flue gas probe An independent condensate trap with 2 particle filters is integrated in the connection tube. Pull off one of the end pieces to let out the inlet filter condensate. Note on changing filter filter tube 1.

  • Page 52: Flue Gas Probe With Coarse Filter/Compact Gas Preparation

    Maintenance Flue gas probe with coarse filter/compact gas preparation After the measurement: - Only applies to standard probe: Clean the condensate and deposits from the inside probe pipe (remove outside pipe by opening the bayonet catch). Cleaning the flue gas probe If there are higher levels of dust in the flue gas, sections of the gas path before the filter may become clogged.

  • Page 53: Manual Emptying Of Condensate

    Maintenance From the flue gas Manual emptying of the condensate probe Pull off one of the end pieces to let out the condensate. Note on changing filter If dirt can be seen in the filter or pump power has audibly slowed down, the filter should be changed.

  • Page 54: Recalibrating Co/No/So 2

    Observe safety and accident prevention regulations when using test gas. Test gas should only be used in well ventilated rooms Test gas supply in testo 300-I max. 30 mbar Note Recalibrations in the range < 500 ppm can lead to deviations in...

  • Page 55: Changing O2, Co, And No Measuring Cells

    Insert the new cell and reconnect. Caution When changed, the O2 measuring cell needs an adaptation time of approx. 60 min. in testo 300-i. . The analyser does not have to be switched on. Only then can an accurate measurement be carried out.

  • Page 56: Calculation Information

    German Calculation Information The following equations are used to calculate the listed values: x (21% - O : Fuel-specific maximum 2max 2max value: value 21 % : Oxygen level of air in % : Measured oxygen level in % : Flue gas temperature Flue gas loss: qA = (FT-AT) - K K...

  • Page 57: Cross-Sensitivities

    German Calculation Information Velocity PAbs : Absolute pressure 575 x DP x (FT + 273.15) speed: v (m/s) = : Differential pressure in mbar PAbs : Flue gas temperature : Pitot tube factor 0 to 1.50 : m/s A1 x A2 Volume flow: V (m /s)= A1, A2...

  • Page 58: Error Messages

    British Calculation Information Conversion of ppm to mg/m referred to the O 2 reference value (freely selectable according to fuel) 0 2 set - O 2 ref CO (mg/m 3 ) CO = x CO (ppm) x 1.25 (0 2 set -O 2 ) 0 2 set : Oxygen content in the air O 2 : Measured oxygen content...
  • Page 59 British Calculation Information (cont.) Efficiencies K gr x (FT - AT) X x (2488 + 2.1 x FT - 4.2 x AT) K1 x CO Effg=100- CO 2 Q gr x 1000 CO 2 + CO K net x (FT - AT) K1 x Q gr x CO X x (210 + 2.1 x FT - 4.2 x AT) Effn=100...

  • Page 60: Technical Data

    Error messages Error message Cause / Remedy Error messages in the status line during measurement 1. Temperature probe not connected. T/C? 2. Temperature probe is not connected correctly. Flue gas temperature and its calculated values are not measured, the remaining values are listed. Check the temperature probe connection or insert new temperature probe.
  • Page 61 Error messages Memory full Data cannot be saved. Confirm with Delete existing data completely or part thereof. Cell does not function. Measured value cannot be ???? % O displayed. Change cell. value cannot be displayed because the O cell is ???? % CO defect.

  • Page 62: Accessories

    Calculation from O , temperature, Response time t Approx. 40 s fuel (optional) Additional data for testo 300 XL-I Meas. range: 0 to 5000 ppm Accuracy: < 10 ppm (0 to 200 ppm)* Ambient CO measurement (CO probe) ± 5 % of m.v. (> 200 ppm)*...
  • Page 63 Technical data Compact gas drier Warranty Instrument: 2 years Dimensions: 62 x 50 x 170 mm Probes: 1 year (h x w x l) (excluding filter) Weight: 540 g Accessories 6 months Rechargeable battery: 1 year Power supply: Bench mains unit CO/NO/SO measuring cell: 1 year...

  • Page 64: Ordering Data

    Attachable printer Part no. 0554.0570 (with testo 300 Xl-I only) testo 300 XL-I has an infrared interface for connection to the attachable printer. Press on the printer to release the lock. The switch on the left side of the printer has the following 3 functions:...
  • Page 65 Empty page...
  • Page 66 Mains unit for compact drier and testo 300 M-I / XL-I 0554.0143 Power connection cable, cable to connect the compact gas drier to testo 300 M-I / XL-I 0449.0034 Spare fine filter (5 off) for compact gas preparation, with water barrier 0554.3370...
  • Page 67 Gas leak detection probe for efficient detection of gas leaks 0632.1246 Ambient CO probe for quickly measuring safe CO levels 0632.1247 Windows ® software for testo 300 M-I / XL-I Testo Economical software with convenient analysis and graphics function, Online measurement and barcode printout 0554.0310...
  • Page 68 Mounting flange incl. quick-change clamping device 0554.0760 Compact gas drier with automatic emptying unit 0632.3371 Mains unit for supplying power to compact gas drier and testo 300 M-I/XL-I 0554.3376 Accessories for industrial probes Transport case for industrial probe, aluminium profile 0516.7900...
  • Page 72 AG Postfach 11 40, 79849 Lenzkirch Testo-Straße 1, 79853 Lenzkirch Telefon: (07653) 681-0 Fax: (07653) 681-100 E-Mail: info@testo.de Internet: http://www.testo.com 0971.3002 03...
