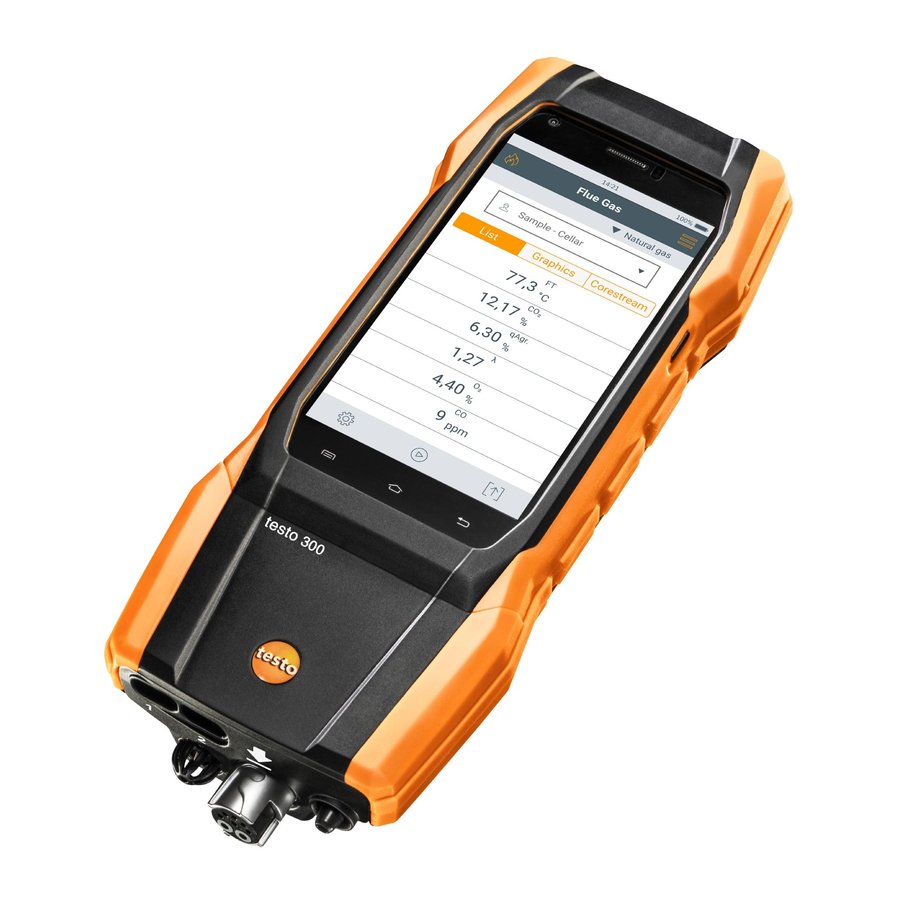

testo 300 - Combustion Analyzer
Short instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300 and is the answer not in the manual?

Questions and answers

Related Manuals for TESTO 300

Summary of Contents for TESTO 300

  • Page 1 300 - Combustion Analyzer Short instructions...
  • Page 2 Register your Testo product at www.testo.com/register and receive a one-year free warranty extension. The product registration is valid for 30 days after purchase. For product registration terms and conditions and participating countries, please go to www.testo.com/register...

  • Page 3: Table Of Contents

    Contents Contents 1 About this document ................... 5 2 Safety and disposal ..................5 3 Product-specific safety instructions ............5 4 Use ........................ 6 5 Product description ..................7 5.1 Front view ....................7 5.2 Rear view ....................8 5.3 Connections ................... 8 6 Commissioning ....................

  • Page 5: About This Document

    Pay attention to the safety instructions and warning advice to prevent injury and damage to the product. 2 Safety and disposal Take the testo information document into account (accompanies the product). 3 Product-specific safety instructions CAUTION The condensate may be acidic.

  • Page 6: Use

    4 Use 4 Use The testo 300 is a measuring instrument for flue gas analysis on applications, such as • residential, commercial and industrial applications (oil, gas, wood, coal) • low-temperature and condensing boilers • boilers, furnaces and gas heaters.

  • Page 7: Product Description

    5 Product description 5 Product description Front view 1 USB interface/ 4 User interface mains connection 2 Gas outlet 5 Condensate container 3 On/Off button 6 Connections...

  • Page 8: Rear View

    5 Product description Rear view 1 Attachment point for carrying 2 Magnets strap Connections 1 Probe connections for additional 3 Flue gas socket probes 2 Integrated ambient air probe 4 Differential pressure measurement connection There must be no more than one extension lead (0554 1202) connected between flue gas socket and flue gas probe.

  • Page 9: Commissioning

    6 Commissioning 6 Commissioning Power supply / Battery The measuring instrument is supplied with a rechargeable battery. Fully charge the battery before use. If plugged in, the measuring instrument is automatically powered via the power supply. Only charge the battery at an ambient temperature of 32 to 95°F. Charge battery 6.1.1 Connect the instrument plug of the power supply to the power supply...

  • Page 10: Switch Instrument On And Off

    6 Commissioning Switch instrument on and off Current Action Function status Instrument Press the button for Instrument is turned on. a long time (> 3 s) When the measuring instrument is started for the first time, the setup wizard guides you through the following setting parameters step by step: Country version (basis of calculations) Language...

  • Page 11: Display - User Interface

    6 Commissioning Display - user interface Measurement types Status bar Menu Open the Fuels selection list Select Customer/measuring site Select reading display type Tests Start measurement Pause measurement Stop measurement Options Further symbols on the user interface (without numbering) Refresh measurement One level back One level back One level back...

  • Page 12: Using The Product

    7 Using the product Save report Save and send report 7 Using the product Overview of main menu ( Main menu Description Customer / Measuring site Create, edit and delete customer and system information. Tests Call up, delete and send measurements that have been performed (various formats possible).
  • Page 13 7 Using the product Main menu Description Device Settings Settings Country version and language Wi-Fi Date & Time My company address Bluetooth® Hotspot Display brightness CO sensor protect NO2 addition O2 reference Alarm limits Sensor Diagnosis Overview of the sensors installed and their condition.

  • Page 14: Overview Of Measurement Types

    7 Using the product Main menu Description Help Aids Device Registration Tutorial Setup Wizard Help Online Testo Website Update via USB Overview of measurement types ( Measurement types Flue Gas Analysis Draft CO Air free Smoke Number Differential pressure Differential temperature...

  • Page 15: Overview Of Options

    7 Using the product Overview of options ( Options Description Config. measurem. view Add, delete ( ) measurement parameters, change measurement views ( ) and units (click on (Unit). Zeroing Gas Sensors Manual sensor zeroing. Menu is only available for measurements with gas sensors.

  • Page 16: Overview Of Tests

    7 Using the product Overview of tests ( Tests Feature Print values Print out measuring values via Bluetooth ® Save Save measuring values, including selected customers / measuring sites. Saved measuring values can be retrieved in the main menu. Finish test Create, save and send measurement report, including Own company data...

  • Page 17: Get The Measurement Data In 3 Steps

    (bayonet lock). Start measurement, the measuring values will be displayed. You will also find further information about your testo 300 combustion analyzer in the online instruction manual on the Testo website, www.testo.com, under the product-specific download.

  • Page 18: Technical Data

    8 Technical data 8 Technical data Feature Value Temperature measuring instrument -40 to +2192°F Draft measurement -4.01 to +16.06 inH2O Pressure measurement -40.15 to 80.29 inH2O measurement 0 to 21 vol.% CO measurement 0 to 4000 ppm Option: CO measurement 0 to 8000 ppm -compensated) Option: CO measurement with activated...

  • Page 19: Product-Specific Approvals

    Please find the current country approvals in the attached Approval and Certification document. 9 Contact and support If you have any questions or need further information, please contact your dealer or Testo Customer Service. For contact details, please visit www.testo.com/service-contact.
  • Page 20 Testo Inc. 40 White Lake Road Sparta, NJ 07801 Phone: 1-800-227-0729 Fax: 1-862-354-5020 E-mail: info@testo.com www.testo.com 0971 3010 en-US 02...
