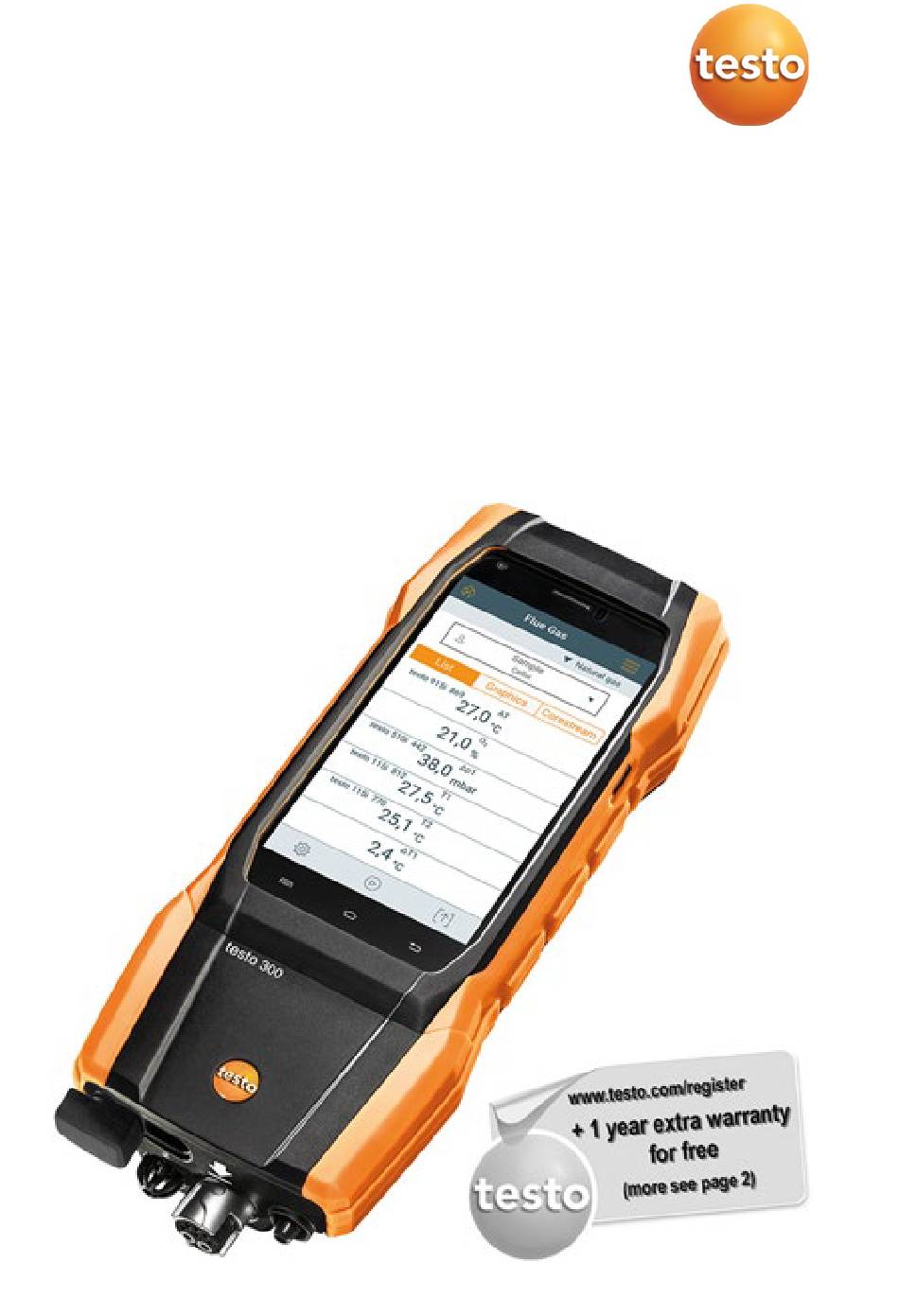

- Page 1 300 NEXT LEVEL - flue gas analyzer Short instructions...
- Page 2 Register your Testo product at www.testo.com/register and receive a one-year free warranty extension. The product registration is valid for 30 days after purchase. For product registration terms and conditions and participating countries, please go to www.testo.com/register...
-
Page 3: Table Of Contents
Connector (0554 3004) ......18 7.6.1 Smart Probes compatible with the instrument ........19 7.6.2 Establishing a connection with the testo Smart App ......19 7.6.3 Clean the measuring instrument ............19 Technical data ..................21 Product-specific approvals ..............23... -
Page 5: About This Document
Pay particular attention to the safety instructions and warning advice in order • to prevent injury and damage to the product. 2 Safety and disposal Please observe the Testo information document (enclosed with the product). 3 Product-specific safety instructions CAUTION The condensate may be acidic. -
Page 6: Use
4 Use 4 Use The testo 300 NEXT LEVEL is a measuring instrument which enables the professional flue gas analysis of combustion systems, such as small combustion plants (oil, gas, wood, coal) • low-temperature and condensing boilers • gas heaters. -
Page 7: Product Description
5 Product description 5 Product description Front view 1 USB interface/ 4 User interface mains connection 2 Gas outlet 5 Condensate container 3 On/Off button 6 Connections... -
Page 8: Rear View
At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. testo 300 NEXT LEVEL complies with the Korean safety standard. testo 300 NEXT LEVEL is Bluetooth-enabled... -
Page 9: Connections
5 Product description China RoHS Connections 1 Probe connections for additional 3 Flue gas socket probes and testo Bluetooth ® Connector 2 Integrated ambient air probe 4 Differential pressure measurement connection There must be no more than one extension lead (0554 1201) -
Page 10: Commissioning
6 Commissioning 6 Commissioning Mains unit / energy storage unit The measuring instrument is supplied with an energy storage unit. Fully charge the energy storage unit before using the measuring instrument. If the measuring instrument is completely discharged, charge it for at least 30 minutes before turning the meter on and using it again. -
Page 11: Switching Instrument On And Off
6 Commissioning Switching instrument on and off Current Action Function status Instrument Press the button for Instrument is switched on. a long time (> 3 s) When the measuring instrument is started for the first time, the setup wizard guides you through the following setting parameters step by step: Country version Language... -
Page 12: Display - User Interface
6 Commissioning Display - user interface Measurement types Status bar Menu Fuels Open the selection list Customer/measuring site Select Select reading display type Protocols Start measurement Pause measurement Stop measurement Options Further symbols on the user interface (without numbering) Repeat measurement One level back One level back One level back... - Page 13 6 Commissioning Save report Save and send report...
-
Page 14: Using The Product
7 Using the product 7 Using the product Overview of main menu ( Main menu Description Customer / Measuring site Create, edit and delete customer and system information. Protocols Call up, delete and send measurements that have been performed (various formats possible). - Page 15 Set up an e-mail account and the e-mail account can be called up. To set up the e-mail account on the testo 300 NEXT LEVEL, the IMAP setting must be activated in the e-mail account at your account provider. You can find more information in your e-mail account itself, e.g.
-
Page 16: Overview Of Measurement Types ( )
7 Using the product Overview of measurement types ( Measurement types Flue gas Draught BImSchV CO undiluted Smoke No. Differential pressure Differential temp. Gas flow Oil flow CO ambient Tightness test 1 Tightness test 2 Let by test 4 Pa measurement... -
Page 17: Overview Of Options
7 Using the product Overview of options ( Options Description Config. measurem. view Add, delete ( ) measurement parameters, change measurement views ( ) and units (click on (Unit). Zeroing Gas Sensors Manual sensor zeroing. Menu is only available for measurements with gas sensors. -
Page 18: Overview Of Protocols
7 Using the product Overview of protocols ( Protocols Feature Print values Print out measuring values via Bluetooth ® Save Save measuring values, including selected customers / measuring sites. Saved measuring values can be retrieved in the main menu. Finish protocol Create, save and send measurement report, including Own company data... -
Page 19: Get The Measurement Data In 3 Steps
Connect probe and place in flue gas pipe. Start measurement and read off measuring values. You will also find further information about your testo 300 flue gas analyzer in the online instruction manual on the Testo website, www.testo,com, under the product-specific download. -
Page 20: Connecting Smart Probes And Testo Smart App
® Connector as well as a connection to the testo Smart App at the same time. If the testo 300 NEXT LEVEL is used with Smart Probes, they must be at least 20 cm apart. Attaching the testo Bluetooth ®... -
Page 21: Smart Probes Compatible With The Instrument
Bluetooth ® 4.0. Once the connection between the app and the testo 300 NEXT LEVEL has been successfully established, the app is in second screen mode. This is indicated by a yellow frame in the app. This means that all measurement data from the testo 300 NEXT LEVEL is being mirrored on the app. - Page 22 7 Using the product ATTENTION Leaking solvents and degreasers! Damage to the instrument and sensors! - Do not store solvents and degreasers, such as isopropanol, in the case. ATTENTION Strong or harsh alcohol or brake cleaner! Damage to the instrument! - Do not use any strong or harsh alcohol or brake cleaner.
-
Page 23: Technical Data
8 Technical data 8 Technical data Feature Value Temperature measuring instrument -40 to +1200°C Draught measurement -9.99 to +40 hPa Pressure measurement -100 to 200 hPa measurement 0 to 21 vol.% CO measurement 0 to 4000 ppm Option: CO measurement 0 to 8000 ppm -compensated) Option: CO measurement with activated... - Page 24 8 Technical data Feature Value Protection class IP 40 Weight Approx. 6.5 g Dimensions L: 23 mm H: 27 mm W: 18 mm Use of the wireless module is subject to the regulations and stipulations of the respective country of use. The module may only be used in countries for which a country certification has been granted.
-
Page 25: Product-Specific Approvals
Please find the current country approvals in the attached Approval and Certification document. 9 Contact and support If you have any questions or need further information, please contact your dealer or Testo Customer Service. For contact details, please visit www.testo.com/service-contact. - Page 26 Testo SE & Co. KGaA Celsiusstr. 1 D-79822 Titisee-Neustadt Germany Phone: +49 7653 681-0 E-mail: info@testo.de www.testo.com 0971 3010 en 05 – 08.2022...
