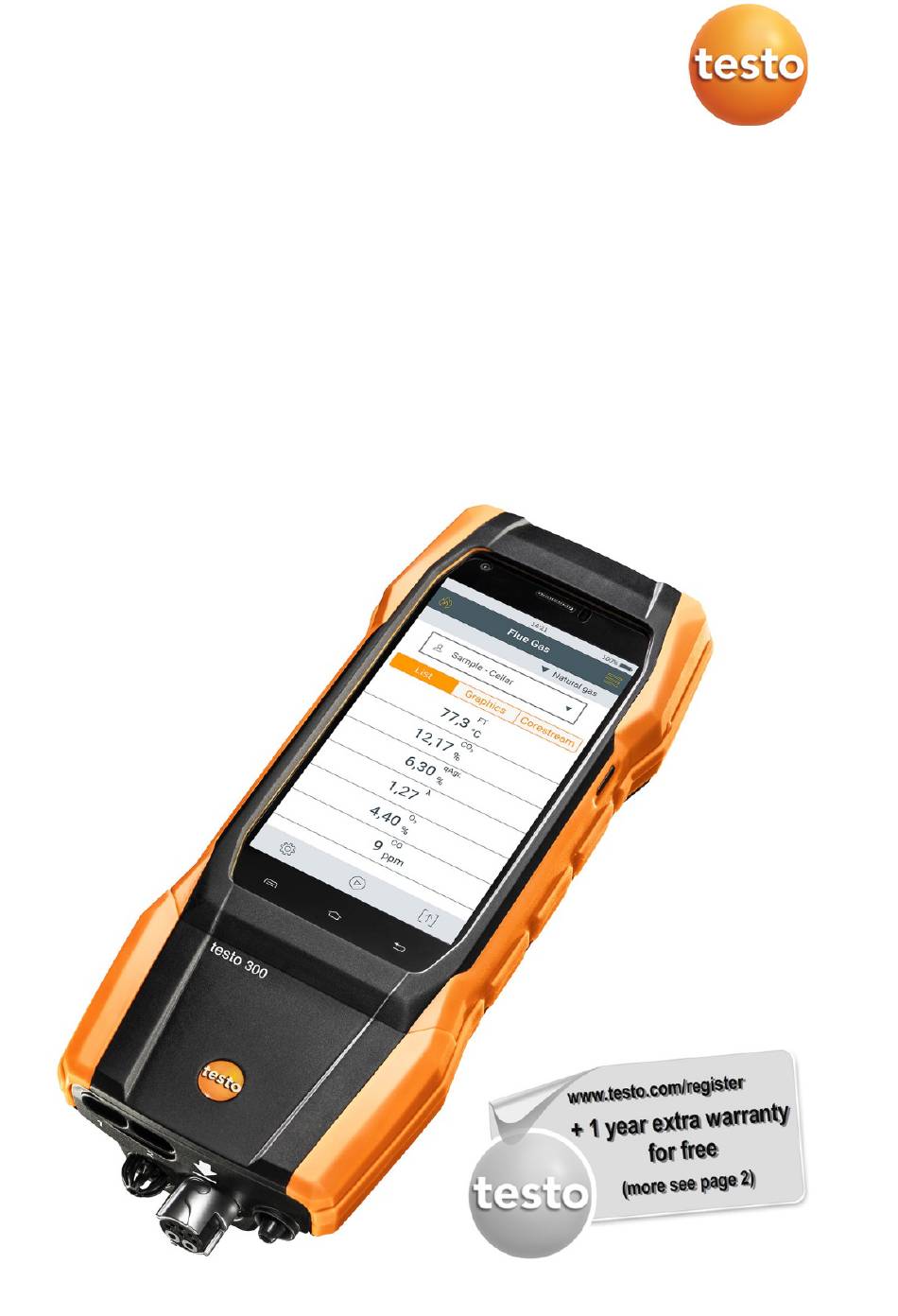

  • Page 1 300 - flue gas analyzer Short instructions...
  • Page 2 Register your Testo product at www.testo.com/register and receive a one-year free warranty extension. The product registration is valid for 30 days after purchase. For product registration terms and conditions and participating countries, please go to www.testo.com/register...

  • Page 3: Table Of Contents

    Contents Contents 1 About this document ................... 3 2 Safety and disposal ..................3 3 Product-specific safety instructions ............3 4 Use ........................ 4 5 Product description ..................5 5.1 Front view ....................5 5.2 Rear view ....................6 5.3 Connections ................... 6 6 Commissioning ....................

  • Page 4: About This Document

    Pay particular attention to the safety instructions and warning advice in order to prevent injury and damage to the product. 2 Safety and disposal Take the testo information document into account (accompanies the product). 3 Product-specific safety instructions CAUTION The condensate may be acidic.

  • Page 5: Use

    4 Use 4 Use The testo 300 is a measuring instrument which enables the professional flue gas analysis of combustion plants, such as • small combustion plants (oil, gas, wood, coal) • low-temperature and condensing boilers • gas heaters. Using the instrument, these systems can be adjusted and checked for compliance with the applicable limit values.

  • Page 6: Product Description

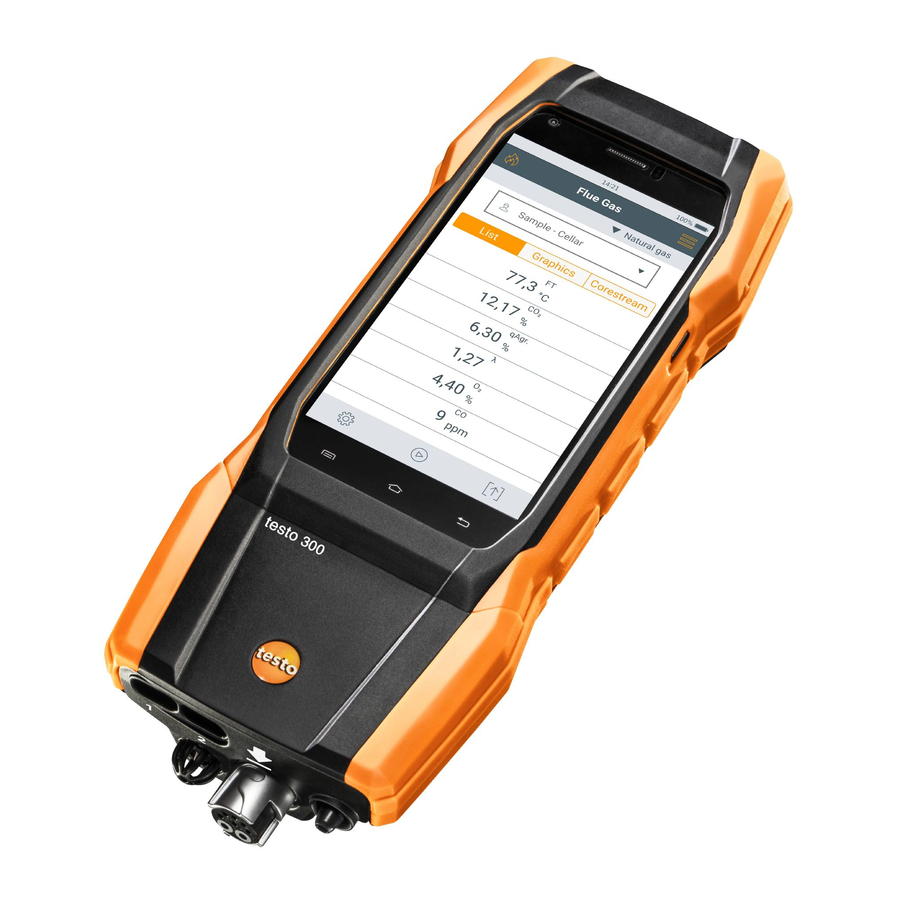

    5 Product description 5 Product description Front view 1 USB interface/ 4 User interface mains connection 2 Gas outlet 5 Condensate container 3 On/Off button 6 Connections...

  • Page 7: Rear View

    5 Product description Rear view 1 Attachment point for carrying 2 Magnets strap Connections 1 Probe connections for additional 3 Flue gas socket probes 2 Integrated ambient air probe 4 Differential pressure measurement connection There must be no more than one extension lead (0554 1201) connected between flue gas socket and flue gas probe.

  • Page 8: Commissioning

    6 Commissioning 6 Commissioning Mains unit / energy storage unit The measuring instrument is supplied with an energy storage unit. Fully charge the energy storage unit before using the measuring instrument. If the mains unit is connected, the measuring instrument is automatically powered via the mains unit.

  • Page 9: Switching Instrument On And Off

    6 Commissioning Switching instrument on and off Current Action Function status Instrument Press the button for Instrument is switched on. a long time (> 3 s) When the measuring instrument is started for the first time, the setup wizard guides you through the following setting parameters step by step: Country version Language...

  • Page 10: Display - User Interface

    6 Commissioning Display - user interface Measurement types Status bar Menu Open the Fuels selection list Select Customer/measuring site Select reading display type Protocols Start measurement Pause measurement Stop measurement Options Further symbols on the user interface (without numbering) Repeat measurement One level back One level back One level back...
  • Page 11 6 Commissioning Save report Save and send report...

  • Page 12: Using The Product

    7 Using the product 7 Using the product Overview of main menu ( Main menu Description Customer / Measuring site Create, edit and delete customer and system information. Protocols Call up, delete and send measurements that have been performed (various formats possible).
  • Page 13 Set up an e-mail account and the e-mail account can be called up. To set up the e-mail account on the testo 300, the IMAP setting must be activated in the e-mail account at your account provider. You can find more information in your e-mail account itself, e.g.

  • Page 14: Overview Of Measurement Types ( )

    7 Using the product Overview of measurement types ( Measurement types Flue gas Draught BImSchV CO undiluted Smoke No. Differential pressure Differential temp. Gas flow Oil flow CO ambient Tightness test 1 Tightness test 2 Let by test 4 Pa measurement...

  • Page 15: Overview Of Options

    7 Using the product Overview of options ( Options Description Config. measurem. view Add, delete ( ) measurement parameters, change measurement views ( ) and units (click on (Unit). Zeroing Gas Sensors Manual sensor zeroing. Menu is only available for measurements with gas sensors.

  • Page 16: Overview Of Protocols ( )

    7 Using the product Overview of protocols ( Protocols Feature Print values Print out measuring values via Bluetooth ® Save Save measuring values, including selected customers / measuring sites. Saved measuring values can be retrieved in the main menu. Finish protocol Create, save and send measurement report, including Own company data...

  • Page 17: Get The Measurement Data In 3 Steps

    Connect probe and place in flue gas pipe. Start measurement and read off measuring values. You will also find further information about your testo 300 flue gas analyzer in the online instruction manual on the Testo website, www.testo,com, under the product-specific download.

  • Page 18: Technical Data

    8 Technical data 8 Technical data Feature Value Temperature measuring instrument -40 to +1200°C Draught measurement -9.99 to +40 hPa Pressure measurement -100 to 200 hPa measurement 0 to 21 vol.% CO measurement 0 to 4000 ppm Option: CO measurement 0 to 8000 ppm -compensated) Option: CO measurement with activated...

  • Page 19: Product-Specific Approvals

    Please find the current country approvals in the attached Approval and Certification document. 9 Contact and support If you have any questions or need further information, please contact your dealer or Testo Customer Service. For contact details, please visit www.testo.com/service-contact.
  • Page 20 Testo SE & Co. KGaA Testo-Strasse 1 D-79853 Lenzkirch Germany Phone: +49 7653 681-0 Fax: +49 7653 681-7699 E-mail: info@testo.de www.testo.de 0971 3010 en 02...
