Section 4: Connecting And Configuring Your
Computer – Print Driver Installation

Laser Setup

1. From the Legend's LED menu: OPTIONS | NETWORKING and set the
display to the following:
IP Address
Subnet Mask
Gateway Address
2. Press ENTER on the keypad
3. Press OPTIONS | SAVE SETTINGS and press ENTER on the keypad
4. Reboot the Legend: SERVICE | REBOOT

Computer TPC/IP Setup

Settings on the computer running XP/2000: If at any point in the following
process, if the computer suggests rebooting, do it and then continue.
1. From the Start menu at the
bottom of your screen select
START | CONTROL PANEL |
NETWORK CONNECTIONS

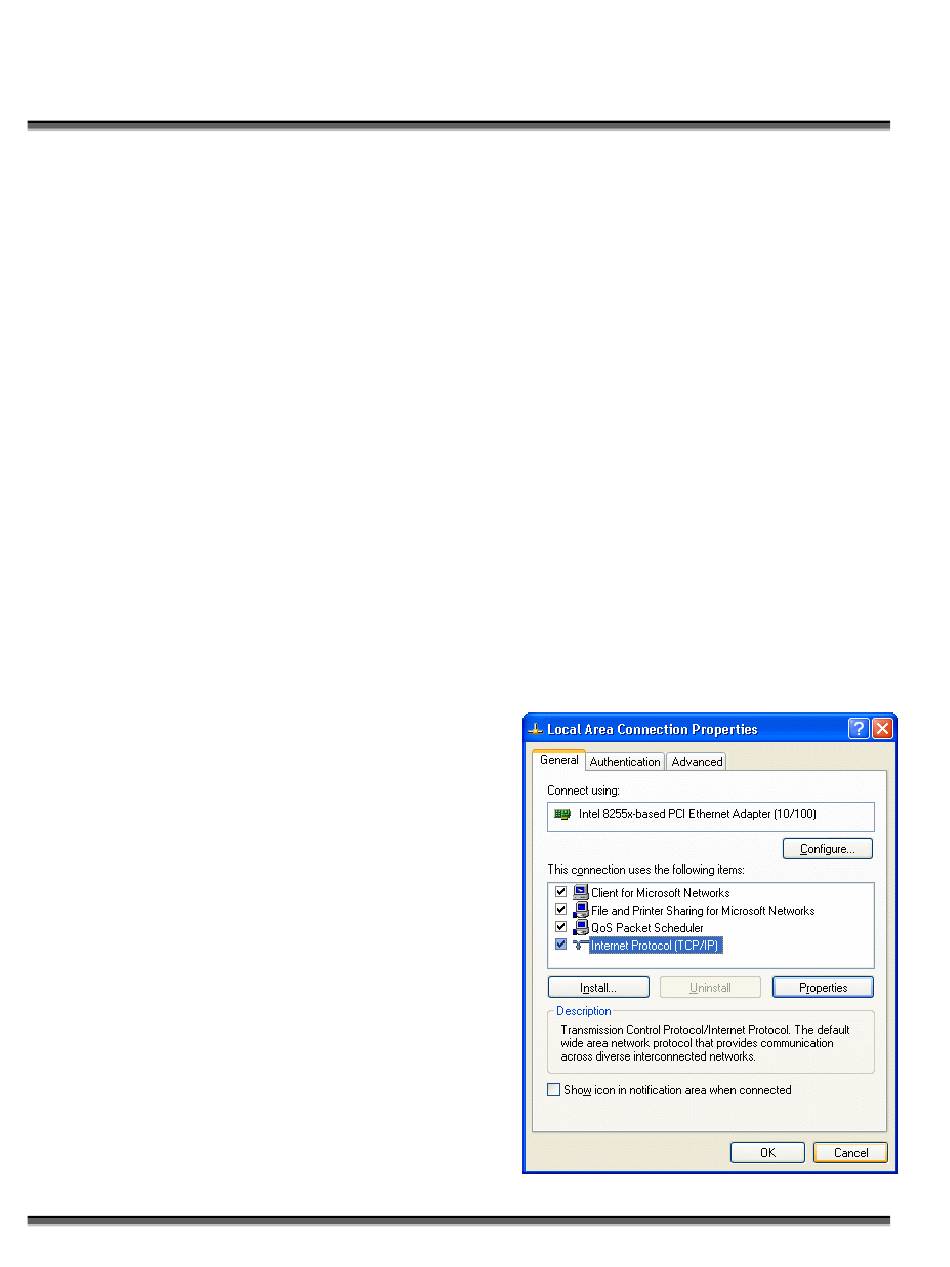

2. Double
AREA CONNECTION. The
following window will appear.
3. Highlight
PROTOCOL (TCP/IP). As
shown on the right.
4. Then
PROPERTIES button.
192 168 3 4
255 255 255 0
0 0
click on LOCAL
INTERNET
click on the
27
(The IP Address can be almost any number)
0 0
