Section 12: Engraving Machine Maintenance
The two optical components most likely to require cleaning are the focus lens and the
mirror directly above it. The lens and mirror are a single assembly, and can be easily
removed from the machine for cleaning, however, many users feel it is not necessary
to do so. To remove the assembly, loosen the large slotted screw in the center.

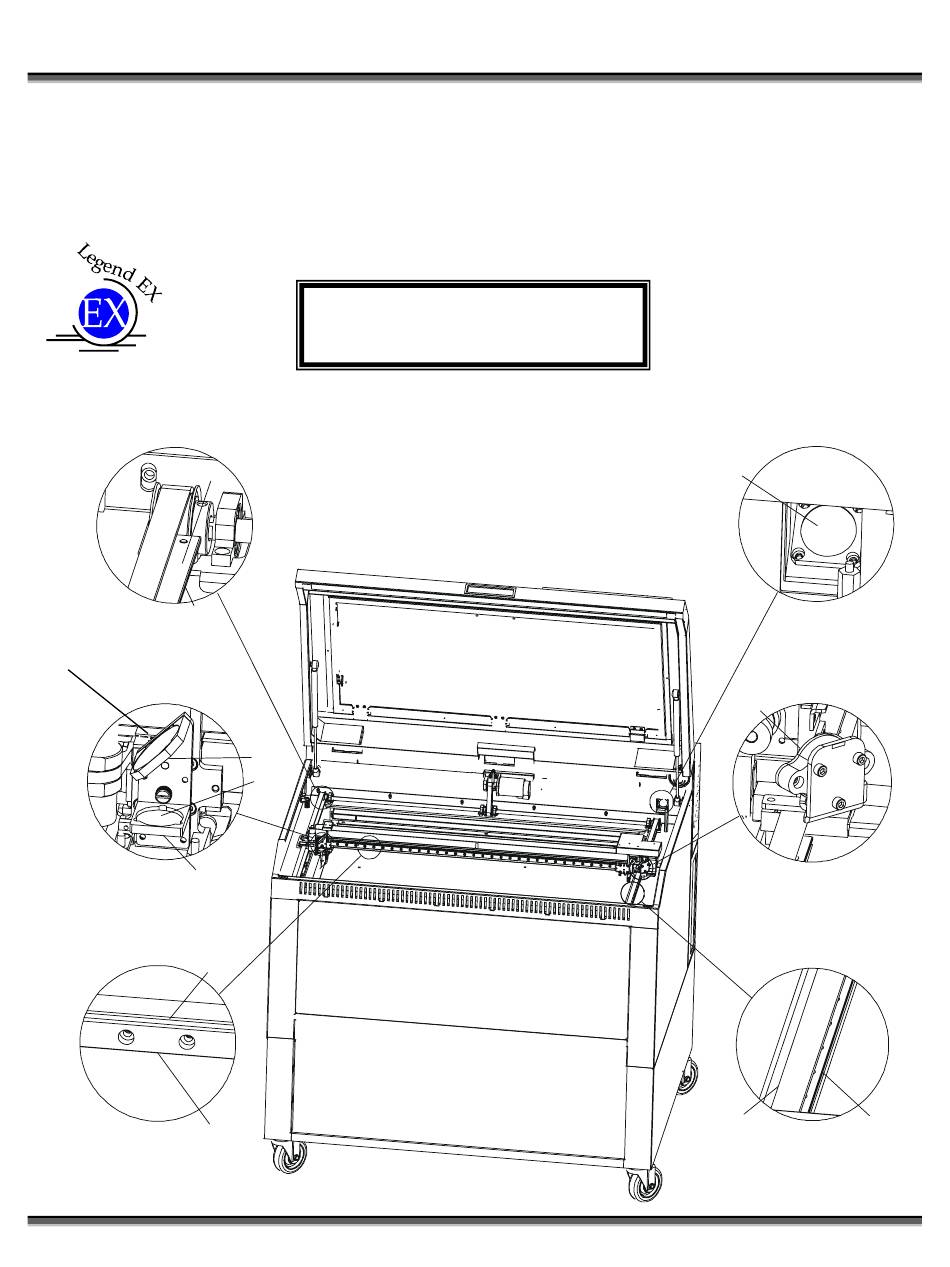

Following are both the Legend EX and Legend TT cleaning diagrams.
CLEAN BEARING
Top
Bottom
Slotted Screw
CLEAN OPTICS
Lens (other
side)
CLEAN AND LUBE
BEARING
Top
Bottom
LEGEND EX
Cleaning and Lubrication
LEGEND
CLEANING AND LUBRICATION
Lens
157
CLEAN OPTICS
Window
CLEAN OPTICS
Mirror
CLEAN AND LUBE
BEARING
Left Side
Right Side
