EPILOG LASER

16371 Table Mountain Parkway

Golden, Colorado 80403

Phone 303-215-9171 - FAX 303-277-9669

www.epiloglaser.com

Tools needed: Phillips head screwdriver #1

1. Turn engraver off and unplug

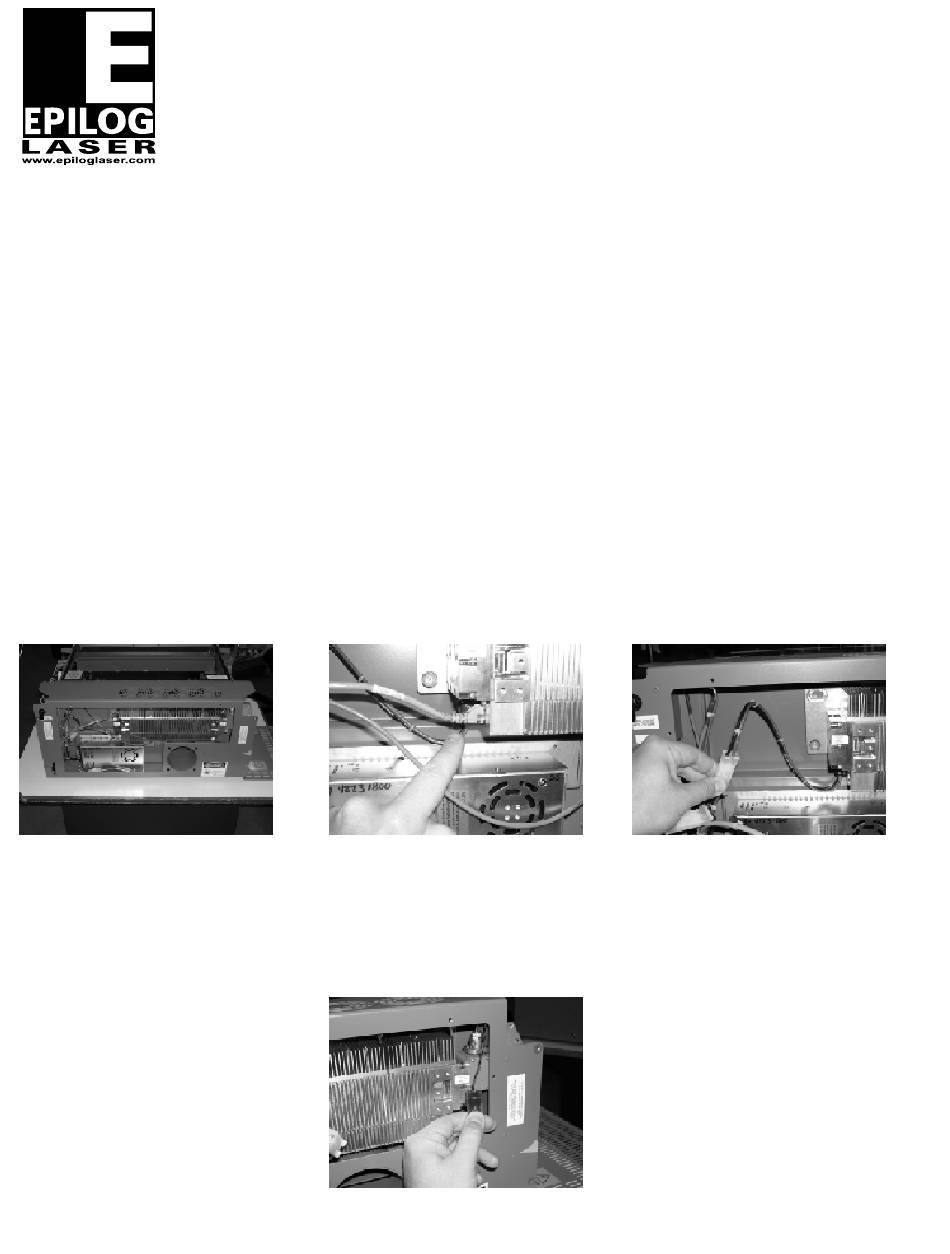

2. Facing the back of the machine, remove the 9 screws using the Phillips head screwdriver on the

back panel. (PIC 1)

3. The laser tube is silver in color and sits directly above the exhaust outlet. Disconnect the gray

communication cable from the left side of the laser tube by pressing the plastic tab on it and pulling

it free from the laser tube itself. (PIC 2)

4. Next, disconnect the black and red wire connection located on the left side of the laser tube by

unplugging it from the wiring harness. To do this, simply press down on the plastic tab of the

connector and pull free from the plug of the wiring harness. (PIC 3)

5. You will now need to unplug the Red Dot pointer. This is located on the right side of the laser

tube. There is a small red and black wire that comes from the diode and connects to a black

connector. Disconnect this connector by pressing on the plastic tab and pulling the connector free.

(PIC 4).

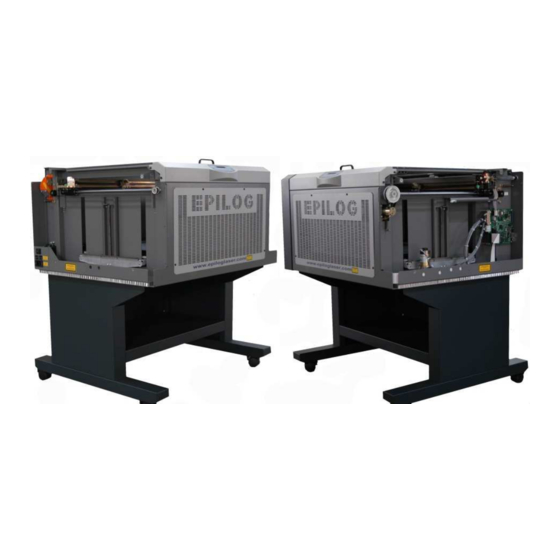

REPLACING THE LASER TUBE IN THE

EPILOG MINI ENGRAVER

Table of Contents

Need help?

Do you have a question about the MINI and is the answer not in the manual?

Page 1 Phone 303-215-9171 - FAX 303-277-9669 www.epiloglaser.com REPLACING THE LASER TUBE IN THE EPILOG MINI ENGRAVER Tools needed: Phillips head screwdriver #1 1. Turn engraver off and unplug 2. Facing the back of the machine, remove the 9 screws using the Phillips head screwdriver on the back panel.
Page 2 6. Now locate the Phillips head screw with the green ring around it located just up and to the left of where you disconnected the 2 connections mentioned in steps 3 and 4. Using the Phillips head screwdriver, loosen this screw until it stops. The screw will not drop out and is held to the bracket with the green ring.
