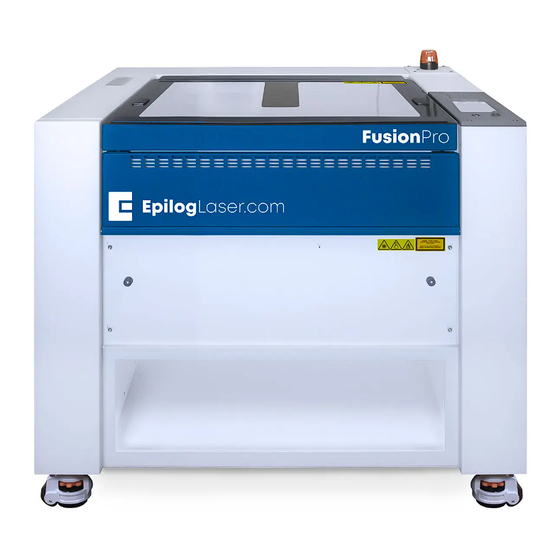

Fusion Maker - Fusion Edge - Fusion Pro 24 & 36
Parts Required
•
RC0596 - Belt, Table, Z24
•
24 x 12 table
•
LC0504 - Belt, Table 24x24
•
24 x 24 table
•
LC0726 - Belt, Table, 36x24
•
36 x 24 table
Z-Axis Belt Replacement
Tools/ Materials Required
•
5/32" Allen Wrench
•
Pencil or Marker
www.epiloglaser.com
tech@epiloglaser.com
303-215-9171
07/2023
.
Advertisement
Related Manuals for Epilog Laser Fusion Maker
Summary of Contents for Epilog Laser Fusion Maker
- Page 1 303-215-9171 Z-Axis Belt Replacement Fusion Maker - Fusion Edge - Fusion Pro 24 & 36 Parts Required Tools/ Materials Required • RC0596 - Belt, Table, Z24 • 5/32” Allen Wrench • 24 x 12 table • Pencil or Marker •...
- Page 2 17000 - Z-Belt Replacement Z- Belt Replacement 5. Using a pencil, make a mark on the engraver chassis that corresponds with the leading edge of the z-axis motor Z-Belt Removal bracket. This will help to ensure the correct z-axis belt tension is applied when the new z-axis motor is installed: 1.
- Page 3 17000 - Z-Belt Replacement 8. Loosen and remove the four (4) 5/32” 1. Once the z-axis belt has been slipped Allen screws on the z-axis motor mount: under each lead screw pulley, remove the belt from the engraver. Z-Axis Belt Installation 1.
- Page 4 17000 - Z-Belt Replacement 24 x 24 Table 4. Insert the z-axis belt into the opening for the z-axis motor, leaving adequate space to ensure that the belt wraps around z-axis motor drive pulley when installing the z-axis motor: 36 x 24 Table 5.
- Page 5 11. Connect the engraver from power. If further assistance is required, please contact Epilog Laser Technical Support by phone at 303-215-9171, or by email at tech@epiloglaser.com.
