Y-Axis Home Switch Replacement
Fusion Maker - Fusion Edge - Fusion Pro 24 & 36
Parts Required
•
LC0047 - Switch, Y-Home, Roller Lever
Tools/ Materials Required
•
5/32" Allen Wrench
•
Phillips Head Screwdriver
www.epiloglaser.com
tech@epiloglaser.com
303-215-9171
01/2023
.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Epilog Laser Fusion Maker
Summary of Contents for Epilog Laser Fusion Maker

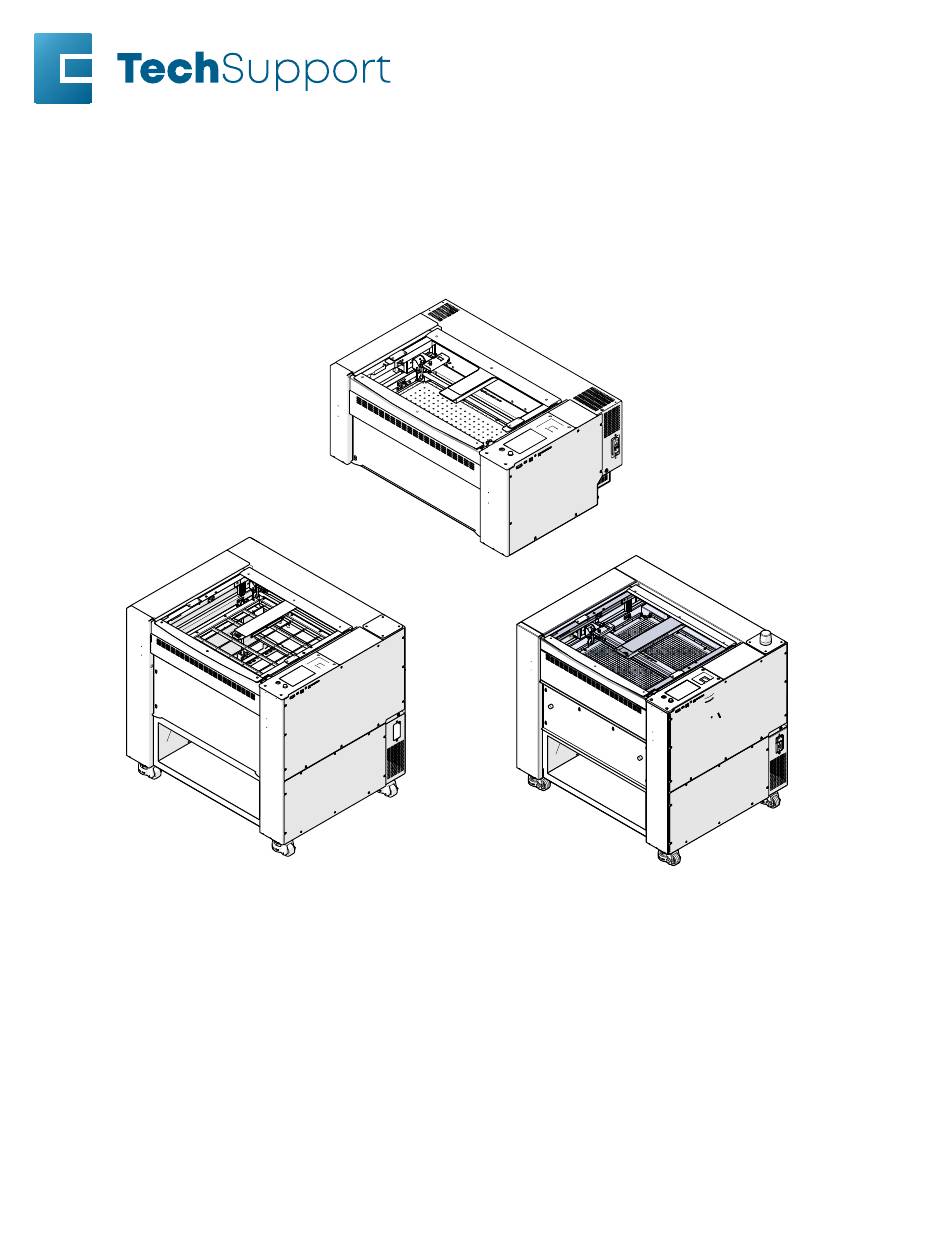

- Page 1 303-215-9171 Y-Axis Home Switch Replacement Fusion Maker - Fusion Edge - Fusion Pro 24 & 36 Parts Required Tools/ Materials Required • LC0047 - Switch, Y-Home, Roller Lever • 5/32” Allen Wrench • Phillips Head Screwdriver 01/2023...
- Page 2 17000 - Y-Axis Home Switch Replacement Y-Axis Home Switch 6. Disconnect the two (2) electrical connections on the y-axis home switch: Replacement Y-Axis Home Switch Removal 1. Turn off the engraver. 2. Disconnect engraver from power. 3. Remove the left or right panel of the engraver, depending on which y-axis home sensor is being replaced.
- Page 3 (2) Phillips screws that secure it to the chassis of the engraver: 3. Replace the side panel of the engraver. If further assistance is required, please contact Epilog Laser Technical Support by phone at 303-215-9171, or by email at tech@epiloglaser.com.
- Page 4 17000 - Y-Axis Home Switch Replacement...
- Page 5 17000 - Y-Axis Home Switch Replacement...
- Page 6 17000 - Y-Axis Home Switch Replacement...
- Page 7 17000 - Y-Axis Home Switch Replacement...
- Page 8 17000 - Y-Axis Home Switch Replacement...
- Page 9 17000 - Y-Axis Home Switch Replacement...
- Page 10 17000 - Y-Axis Home Switch Replacement...
- Page 11 17000 - Y-Axis Home Switch Replacement...
