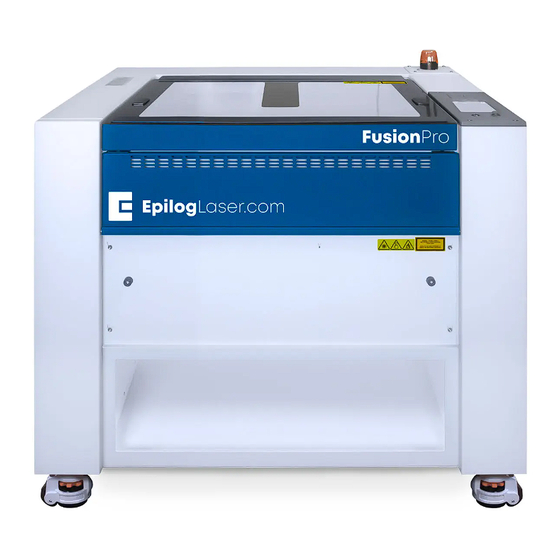

Fusion Maker - Fusion Edge - Fusion Pro 24 & 36
Parts Required
•
X-Axis assembly for engraver model- refer
to page 2 for part number and description
X-Axis Assembly Replacement
03/2023
www.epiloglaser.com
tech@epiloglaser.com
Tools Required
•
5/32" Allen wrench
•
Phillips head screwdriver
•
Anti-static strap
303-215-9171
.
Advertisement
Related Manuals for Epilog Laser Fusion Maker
Summary of Contents for Epilog Laser Fusion Maker
- Page 1 303-215-9171 X-Axis Assembly Replacement Fusion Maker - Fusion Edge - Fusion Pro 24 & 36 Parts Required Tools Required • X-Axis assembly for engraver model- refer • 5/32” Allen wrench to page 2 for part number and description •...
- Page 2 LC1058-TS Assy, X-Axis Rail, 36x24, Pro, Dual, TS Fusion Maker engravers are not manufactured with the x-axis drive board referenced in this document. If removing the x-axis assembly in a Fusion Maker, disregard steps which reference the x-axis drive board.
- Page 3 17000 X-Axis Assembly Replacement X-Axis Assembly 5. Remove the x-axis drive board cover: Replacement X-Axis Assembly Removal 1. Turn off the engraver. 2. Disconnect the engraver from power source. 3. Remove the left and right panels of the engraver: 6. Disconnect the air assist tubing from the right side of the x-axis assembly: 4.
- Page 4 17000 X-Axis Assembly Replacement 7. Remove the six (6) electrical 10. Disconnect the belows on the left and connections on the drive board: right side of the engraver. 11. Remove the four (4) fasteners that secure the x-axis assembly to the y-axis bearings.
- Page 5 17000 X-Axis Assembly Replacement 12. Gently lift on the x-axis assembly to X-Axis Assembly Installation free it from the locator pins on the y-axis bearing blocks: 1. Slide the x-axis assembly into the cabinet through the right side of the engraver: 13.
- Page 6 17000 X-Axis Assembly Replacement 3. Install and tighten the four (4) fasteners 5. Install and tighten the three (3) Phillips that secure the x-axis assembly to the screws that secure the x-axis drive y-axis bearings. There are two (2) on board mounting bracket to the x-axis the right side and two (2) on the left assembly:...
- Page 7 17000 X-Axis Assembly Replacement Updates and Programming 8. Install x-axis drive board cover: The x-axis assembly contains many components, including circuit boards, cameras, and a motor. Further procedures are required. Updating the Carriage Camera (Pro Models Only) 1. On the display, press the gear icon to enter the Settings menu: 9.
- Page 8 17000 X-Axis Assembly Replacement 3. Enter the Diagnostics menu and 5. Allow the engraver to complete scroll to the Camera tab. Press Test & the update. Once done, a success Update: message will appear: 4. Press Update: In some cases the focus calibration and camera calibration procedures must also be completed.
- Page 9 17000 X-Axis Assembly Replacement 2. Press Program to enter the Peripheral If further assistance is required, please Update menu: contact Epilog Tech Support by phone at 303-215-9171, or by email at tech@epiloglaser.com 3. Once in the Peripheral Update menu, select Motor Drives and FPGA. Press Update: When running a peripheral update, do not power off the engraver.
