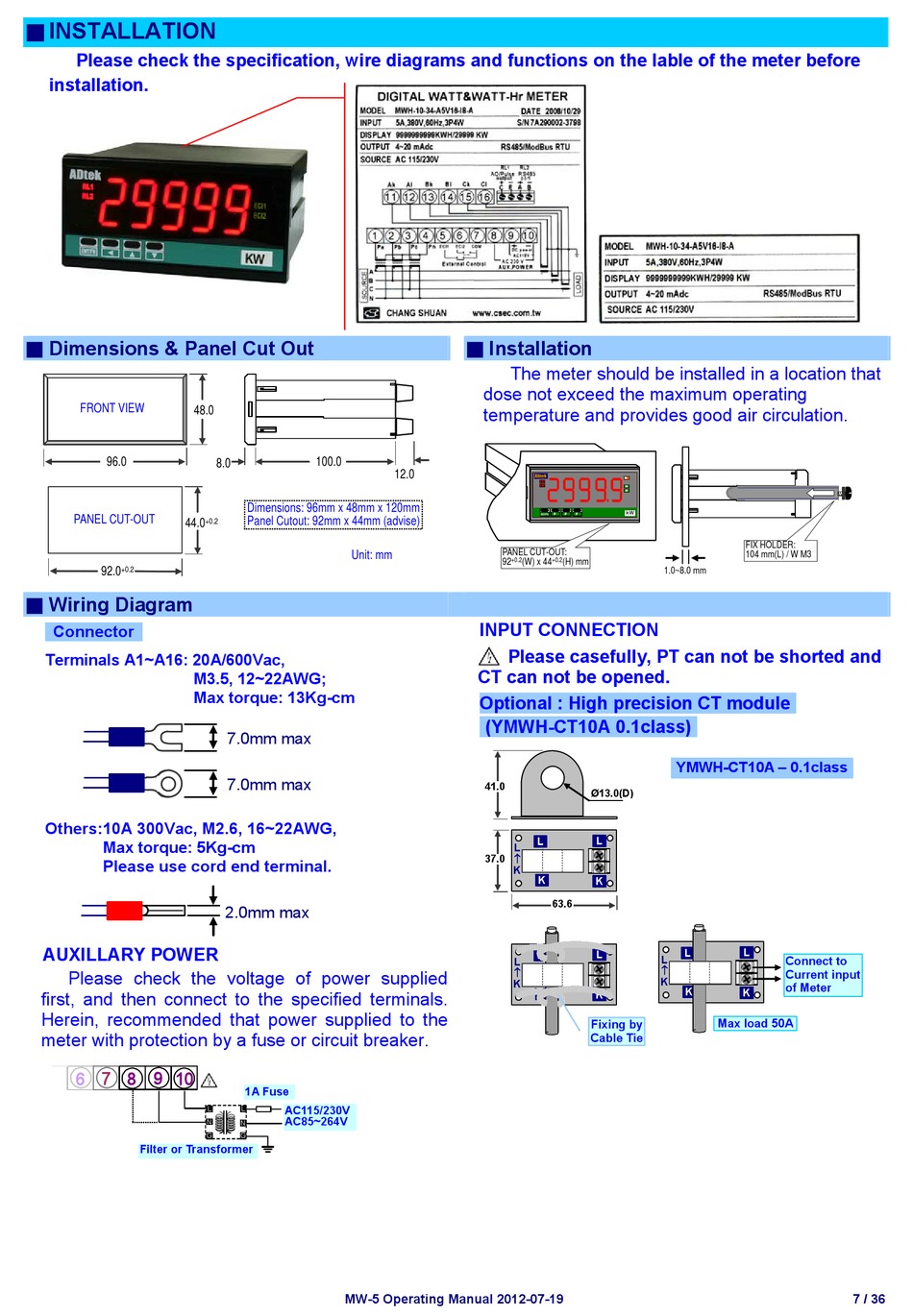

INSTALLATION

■
Please check the specification, wire diagrams and functions on the lable of the meter before
installation.
Dimensions & Panel Cut Out
■
FRONT VIEW
48.0
96.0
PANEL CUT-OUT
44.0
92.0
+0.2
Wiring Diagram
■
Connector
Terminals A1~A16: 20A/600Vac,
M3.5, 12~22AWG;
Max torque: 13Kg-cm
Others:10A 300Vac, M2.6, 16~22AWG,
Max torque: 5Kg-cm
Please use cord end terminal.
AUXILLARY POWER
Please check the voltage of power supplied
first, and then connect to the specified terminals.
Herein, recommended that power supplied to the
meter with protection by a fuse or circuit breaker.
7 8 9 10
6
Filter or Transformer
100.0
8.0
Dimensions: 96mm x 48mm x 120mm
Panel Cutout: 92mm x 44mm (advise)
+0.2
Unit: mm
7.0mm max
7.0mm max
2.0mm max
1A Fuse
AC115/230V
L L
AC85~264V
N
N
G G
MW-5 Operating Manual 2012-07-19
Installation
■
The meter should be installed in a location that
dose not exceed the maximum operating
temperature and provides good air circulation.
12.0
R L
1
R L
2
ENT/FN ? ?
PANEL CUT-OUT:
92 +0.2 (W) x 44 +0.2 (H) mm
INPUT CONNECTION
Please casefully, PT can not be shorted and
CT can not be opened.
Optional : High precision CT module
(YMWH-CT10A 0.1class)
41.0
L
L
37.0 
K
K
63.6
L
L

K
K
C O
CI
CI
2
kW
?
FIX HOLDER:
104 mm(L) / W M3
1.0~8.0 mm
YMWH-CT10A – 0.1class
Ø13.0(D)
L
K
L L
L
L

K
K
K
K
Max load 50A
Fixing by
Cable Tie
Connect to
Current input
of Meter
