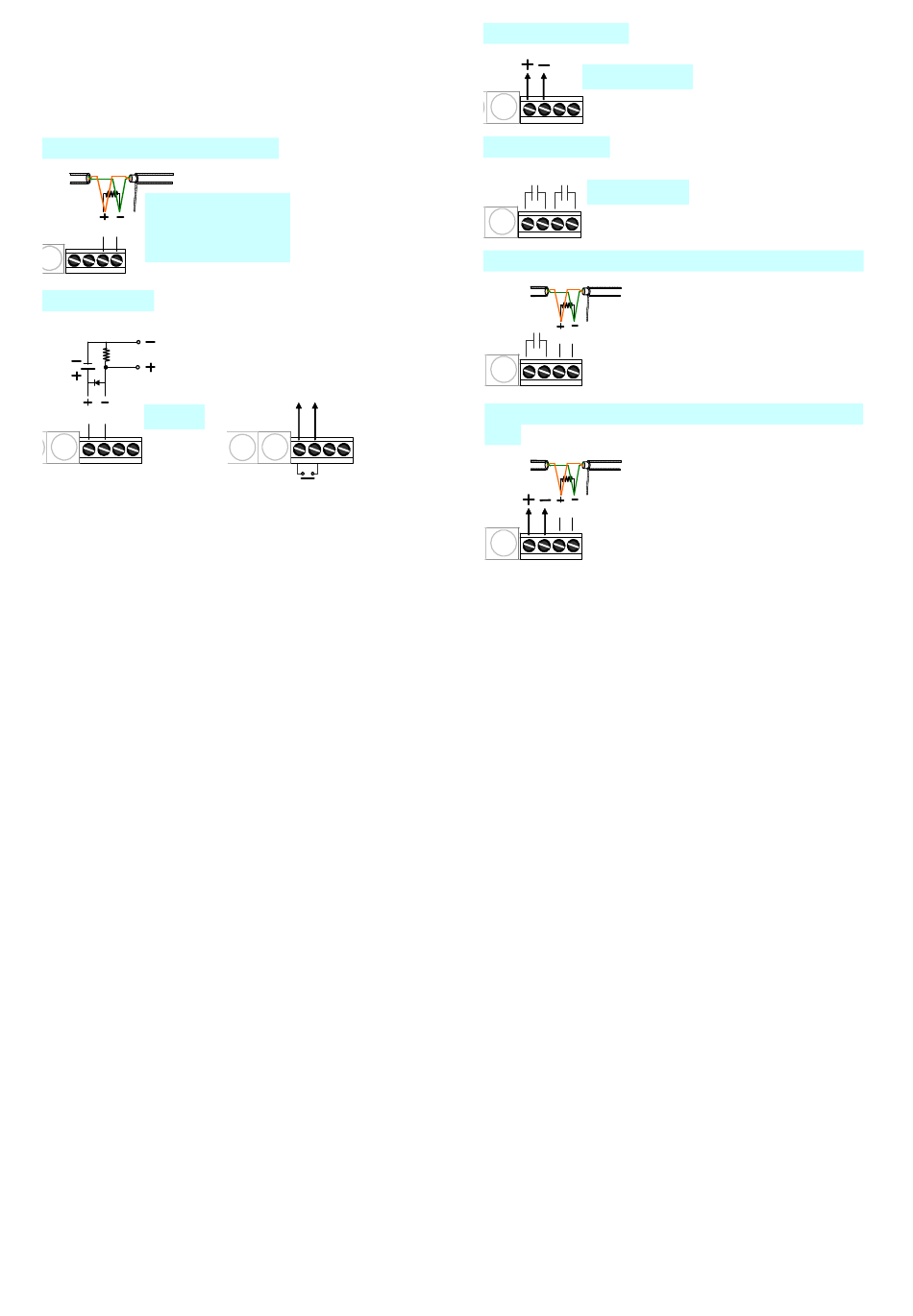

OUTPUT CONNECTION
Due to the terminals limited, the left two terminals
can be defined for relay, analogue or pulse output
and the right two terminals can be defined for relay
or RS485 port.
RS485 Communication Port
Max. Distance: 1200M
Terminate Resistor (at
latest unit):
A B
120~300ohm/0.25W
16
(typical: 150ohm)
Pulse Output
Open Connect Output
c e Max load
( ) ( )
30V/60mA
16
Relay Contact Output
15 16
MW-5 Operating Manual 2012-07-19
Analogue Output
Specified in order for
0~10V or 4~20mA
16
2 Relay Output
RL1 RL2
Dual FORM-A,
1A/230Vac, 3A/115V
16
1 Relay output + RS485 Communication Port
RL1
A B
16
1 Analogue output + RS485 Communication
Port
A B
16
