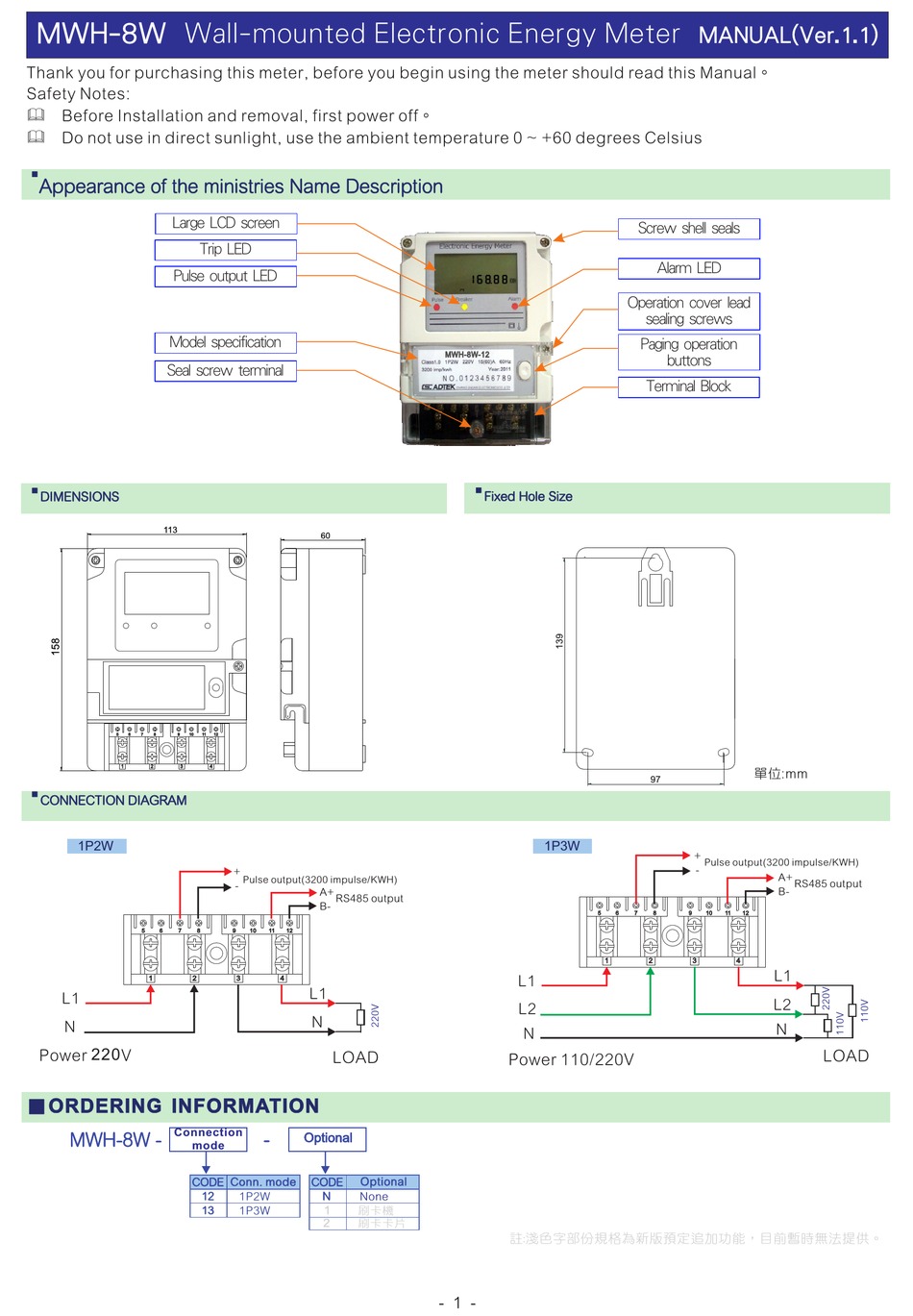

MWH-8W

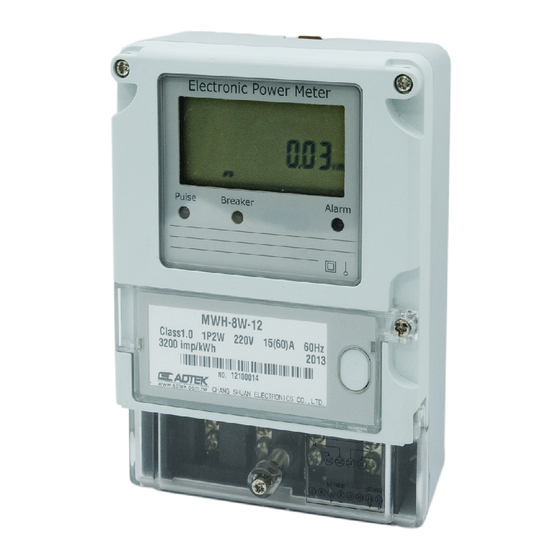

Wall-mounted Electronic Energy Meter
Thank you for purchasing this meter, before you begin using the meter should read this Manual。
Safety Notes:
Before Installation and removal, first power off。
Do not use in direct sunlight, use the ambient temperature 0 ~ +60 degrees Celsius
■
Appearance of the ministries Name Description
Large LCD screen
Pulse output LED
Model specification
Seal screw terminal
■
DIMENSIONS
■
CONNECTION DIAGRAM
1P2W
L1
N
Power 220V
■ORDERING INFORMATION
Connection
MWH-8W -
mode
CODE
Trip LED
+
Pulse output(3200 impulse/KWH)
-
A+
RS485 output
B-
L1
N
LOAD
-
Optional
Conn. mode
Optional
CODE
12
1P2W
N
None
13
1P3W
1
刷卡機
2
刷卡卡片
1 6 * 8 8
KWH
MWH-8W-12
■
Fixed Hole Size
1P3W
L1
L2
N
Power 110/220V
註
淺色字部份規格為新版預定追加功能，目前暫時無法提供。
:
- 1 -
MANUAL(Ver.1.1)
Screw shell seals
Alarm LED
Operation cover lead
sealing screws
Paging operation
buttons
Terminal Block
單位:mm
97
+
Pulse output(3200 impulse/KWH)
-
A+
RS485 output
B-
L1
L2
N
LOAD
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ADTEK MWH-8W
Summary of Contents for ADTEK MWH-8W
- Page 1 ■ CONNECTION DIAGRAM 1P2W 1P3W Pulse output(3200 impulse/KWH) Pulse output(3200 impulse/KWH) RS485 output RS485 output Power 220V LOAD LOAD Power 110/220V ■ORDERING INFORMATION Connection MWH-8W - Optional mode Conn. mode Optional CODE CODE 1P2W None 1P3W 刷卡機 刷卡卡片 註 淺色字部份規格為新版預定追加功能，目前暫時無法提供。...
- Page 2 88888*88 LCD Display Test Key position description: Seal screws mwh-8w This is the hidden key you want to open Display Type MWH-8W window lidLook, after the seals will not be able to operate。 Ver-1.2:1P2W ver-!3 Ver-1.3:1P3W Display version:Ver-1.3...
-
Page 3: Mode Of Operation
User operations level Operation and display Description step execution parameters screen Parameters screen Parameter Description Mode of operation Screen note This is the "normal display" Current Cumulative effective energy To view the "execution parameters browse screen" function with forward, electricity reverse and effective way to 16*00 Press... - Page 4 User operations level Operation and display Description step execution parameters screen Parameters screen Screen note Parameter Description Mode of operation Display the current Press into the next parameter browse screen Address settings of the add-001 communication address of the meter:001 Address Baud rate Display the current...
- Page 5 Engineers parameter level Operation Flow Factory set parameter operation process 16*00 This key is hidden keys to be able to see the cover open windows, seals will not Usually display operate, so the following parameters to be Press set at the factory finish。 Set the parameters: Press into set mode，Press...
- Page 6 Engineers parameter level Operation flow and display Factory set parameter operation process Parameters screen Parameter Description Mode of operation Screen note RS485 1~255 Press to enter setup mode, then press set the value Short press for the value added 1 Communication Long 2 second to move cursor left 1 bit (not released too...
- Page 7 RS-485 communication parameters address table MWH-8W Modbus RTU Parameters address table Parameter Description Modbus Register name Numeric format and units Length R/W 0 ~ 9 9 9 9 9 9 . 9 9 ( K W H ) KWHT (Hi)
