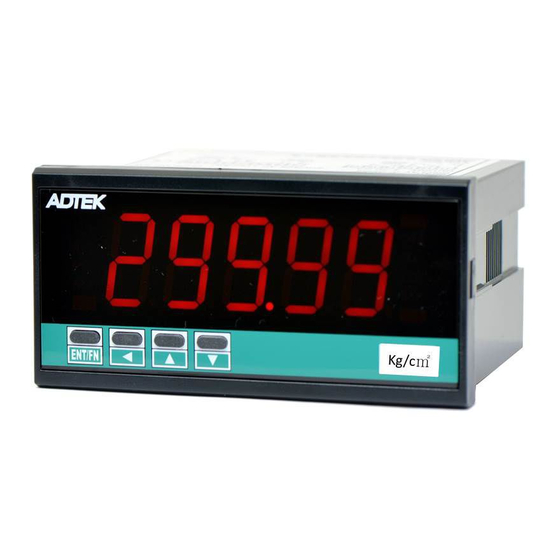

ADTEK CS2-VA Operation Manual

Voltage/current meter relay, вс signal 10v20ma indicator, load cell/strain gauge indicator, potentiometer indicator, resistance indicator (2-w), temperature indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CS2 SERIES OPERATING MANUAL(EN)-A-2017-11-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS2-VA and is the answer not in the manual?

Questions and answers

Related Manuals for ADTEK CS2-VA

Summary of Contents for ADTEK CS2-VA

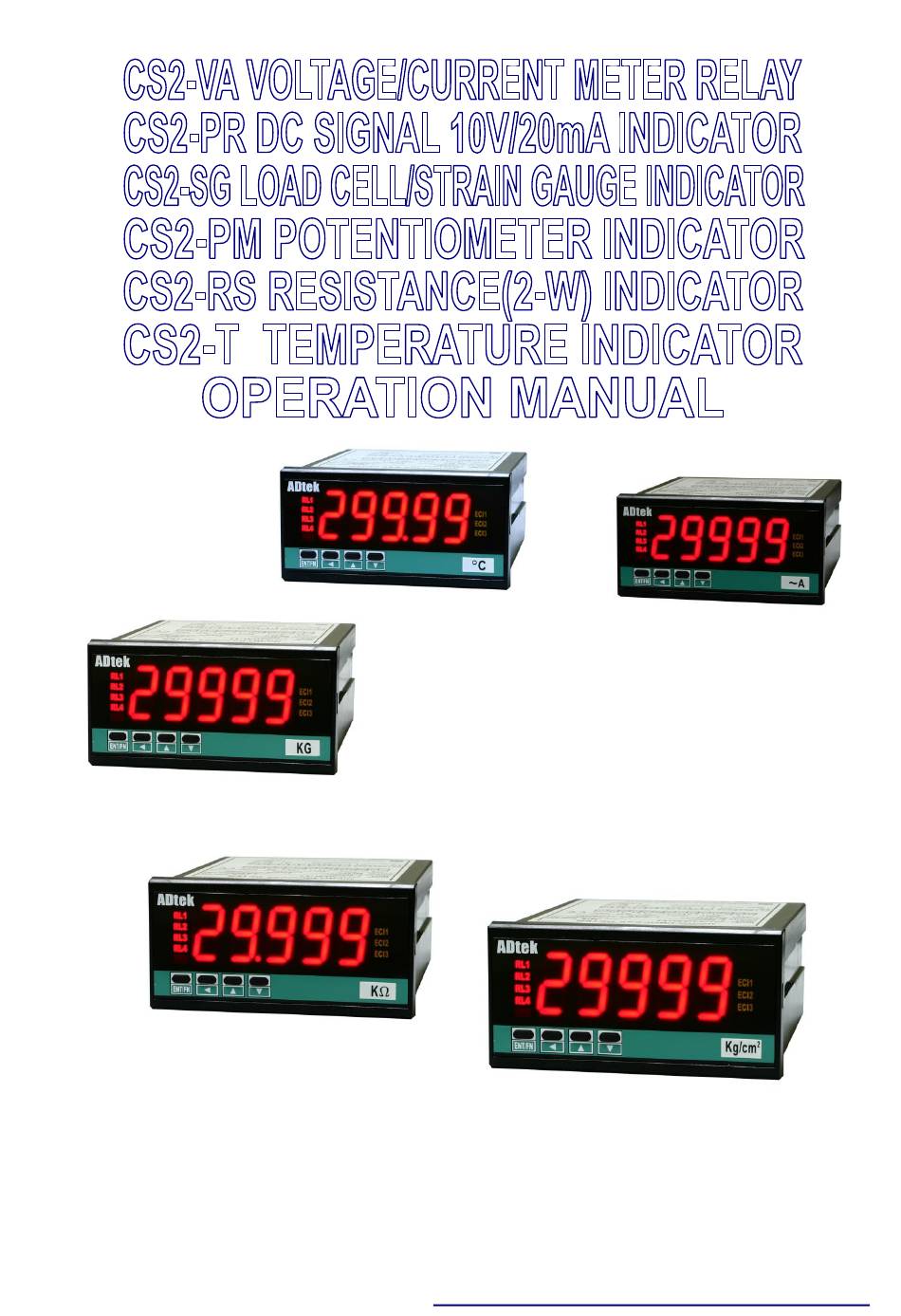

  • Page 1 CS2 SERIES OPERATING MANUAL(EN)-A-2017-11-16...

  • Page 2: Table Of Contents

    RS 485 Communication ------------------------------------------------------------------------------------ 7/41  Remote Display function 7/41 ■ Field Calibration (for CS2-SG / CS2-PM / CS2-RS) ------------------------------------------------ 7/41 ■ Bank Function(Suffix-3BK) for CS2-VA, CS2-RS -------------------------------------------------- 8/41 ORDERING INFORMATION ■ 9/41 --------------------------------------------------------------------------- INSTALLATION ■ ----------------------------------------------------------------------------------------------- 10/41  Dimensions & Panel Cut Out ...
  • Page 3 ADDRESS TABLE ■ For 5-digital Dispaly -------------------------------------------------------------------- 38/41  User Level ------------------------------------------------------------------------------------------------------- 38/41  Programming Level ------------------------------------------------------------------------------------------ 38/41 38/41 [Input Group] ---------------------------------------------------------------------------------------------------------------- 39/41 [Relay Group] --------------------------------------------------------------------------------------------------------------- 40/41 [ECI Group] ------------------------------------------------------------------------------------------------------------------ 40/41 [AO Group] ------------------------------------------------------------------------------------------------------------------- 41/41 [RS485 Group] --------------------------------------------------------------------------------------------------------------...

  • Page 4: Description

    In applications, they are not only indicators but also the I/O interfaces which it’s compatible with any systems. ADtek built-in the innovation concept for External Control input(ECI) and Relay output similar as I/O module of PLC. It’s very simply & easily to achieve remote monitoring and control simultaneously.

  • Page 5: Applications

    ■ APPLICATIONS  Models ● CS2-VA Switch Boards / Motor Control / Machinery / Testing Equipments ● CS2-PR Machinery Control / Process Control Systems for pressure, level,……..sensing transducers Automation System / Testing Equipments ● CS2-SG Weighting indication, control and Alarm / Machinery Control / Tension and others test equipment ●...

  • Page 6: Display Functions

    When the [dsply] function set to be rs485, the LED Default: [ lOsc]: )00, [ hIsc]: 10)00 SCALE display no longer appear the input signal on the meter Change to [ lOsc]: 5)00, [ hIsc]: 19(99 [ hIsc] then the PV screen will display the data from RS485 19(99 Reverse slop command.

  • Page 7: Digital Fine Adjustment  Square Root Function

    EX: Low Cut is set for -0.01. If the display is < -0.01, and The meter will calculate the sampling 1-3 and update all the display will be -0.01. the display value. At meantime, the sampling 4-6 will be processed to calculate. Low Cut set to be -0.10 PV according Present...

  • Page 8: Relay Functions

    ● ■ Relay Functions DO(Digital Output) ( The function has been designed not only a meter but CS2 series offer the 4 relay outputs with more also an I/O interface. In the case of motor control flexible and multi-functions. They can be programmable individually in [relay group]。Please refer to the cabinet can't get the remote function.

  • Page 9: External Control Inputs(Eci)

    19(99 energized with latch except the ECI terminal is closed. [ aOhs] Ao.LMt: 80.00%  15)00 Bank selection (banK_) (for CS2-VA/CS2-RS) Please refer to the function section (page 8/38) of 10)00 this manual. [ aOls] 5)00 ■...

  • Page 10: Rs 485 Communication

     Remote Display function [rs485] ■ RS 485 Communication CS2 series has been built-in an innovation function CS2 series can be used as Remote Terminal Unit called remote display function. (RTU) for monitoring and controlling in a SCADA (Supervisor Control And Data Acquisition) system. It's In past, The meter only receive 4~20mA or 0~10V not only can be read the measured value and DI from AO card or BCD card of PLC.

  • Page 11: Bank Function(Suffix-3Bk) For Cs2-Va, Cs2-Rs

    ■ Bank Function(Suffix-3BK) for CS2-VA, CS2-RS  The function is for CS2-VA and CS2-RS for controlling difference process with a same meter.  For example; a pressure testing equipment; it has to measure multi-range with difference pressure transducers. The meter can be pre-set 4 groups parameters to show difference scales and relay energized with difference set-points.

  • Page 12: Ordering Information

    ORDERING INFORMATION ■ DC/AC/ Input − Relay − Analog − RS 485 − Aux. − *Optional Customize function is welcome. Please contact CS2−VA−  TRMS Signal Output Output Powered Functions Port with our sales window for detail. OPTION 1 OPTION 2 OPTION 3 CODE VOLT INPUT...

  • Page 13: Installation

    Herein recommended using twin wire with shielding. Please set the torque of automotive screwdriver to match the limited of terminals. [CS2-RS Resistance Indicator] [CS2-VA Voltage / Current Meter Relay] Relay 1 Relay 2 Relay 3 Relay 4 RS 485...
  • Page 14 [CS2-PM Potentiometer Indicator] [CS2-T Temperature Indicator] Relay 1 Relay 2 Relay 3 Relay 4 RS 485 Analogue output port 21 22 24 25 27 28 29 30 31 ECI1 ECI2 ECI3 COM 11 12 14 15 9 10 AC115V AC230V ADH AC/DC 86~265V POTENTIOMETER External Control Input...

  • Page 15: Operations

    ■ OPERATIONS ■ Front Panel Max. Hold status  Engineer Label: over 80 types. Relay status Indication Comm. status R L 1 C O M RL 2 CI11 External Control Input status Display screen Mini. Hold status ENT/FN ▲ ▼ Operation Key Engineer Unit ...

  • Page 16: Operating Key

    ■ Error Massage BEFORE POWER ON, PLEASE CHECK THE SPECIFICATION AND CONNECTION AGAIN. SELF-DIAGNOSIS AND ERROR CODE: DISPLAY DESCRIPTION REMARK Display is positive-overflow (Signal is over ovfl (Please check the input signal) display range) Display is negative-overflow (Signal is under -ovfl (Please check the input signal) display range)

  • Page 21: Operating Steps

    ■ Operating Steps: User Level ■ INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET Please check the specification POWER and wiring diagrams firstly. Self-diagnosis (LED All bright) cs@pr Model cs@va: Amp / Volt cs@rs: Resistance cs@pr: 0~(5)10V / 0(4)~20mA cs@sg: Load Cell / Strain Gauge cs@pm: Potentiometer cs@t: Temperature Firmware version...

  • Page 22: Programming Level

    Programmable: bnk-0 / bnk-1 / This page will be shown out when Bank function was to specified in order (option bnk-2 / bnk-3 suffix-3BK) for CS2-VA and CS2-RS only Down Enter bank(Bank): Bank selection and Please refer to the description in programming Page 8/38.
  • Page 23 Input Group ■ INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET INPUT GROUP INDEX PAGE In following pages, press 1 second to back INPUT GROUP INDEX PAGE. Programmable: V0-10(0~10V) / The function is only for CS2-PR aItyp(Ai.tyP): Analog input type & range V0- 5(0~5V) / V1- 5(1~5V) / selection A0-10(0~10mA) / A0-20(0~20mA) /...
  • Page 24 pVzro(Pv.Zro): Fine Adjustment low point for Settable range: -19999~+29999 PV display; Shift Down Enter For Zero & Span of PV, users can get the Default Input: [ lOsc]: )00, [ hIsc]: 19(99 Digital fine adjustment: "Fine Adjustment" by front key. It's an easy input 2.75V, [ pVzro]set to be 8)00 input 9.00V, [ pVspn]set to be 17)00...
  • Page 25 avg(AvG): Average update for PV Settable range: The meter’s sampling is 15cycle/sec 1(no function)~99 times If the [ avg](Average) set to be 3 to Shift Down Enter express the display update with 5 times/sec. The meter will calculate the sampling 1-3 and update the display value.

  • Page 26: Relay Group

    Relay Group ■ (The group will not be displayed except the relay function is to be specified ) INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET RELAY GROUP INDEX PAGE In following pages, press 1 second to return the RELAY GROUP INDEX PAGE. rYsb(rY.Sb): Start band of Relay energized Settable range: 0~9999 digits 00)0 Shift...
  • Page 27 ry!fd (rY1.Fd): Relay 1 de-energized delay Settable range: time 0:00.0~9(M):59.9(S) Shift Down Enter ry@md(rY2.Md): Relay 2 energized mode ….as same as Relay 1 Energized Mode… off(off) / Programmable: lo(Lo) / hi(Hi) / hIhld(Hi.HLd) / lOhld(Lo.HLd) / do(DO) Down Enter ry@hy(rY2.HY): Relay 2 Hysteresis Settable range: 0~5000 digits Shift Down...
  • Page 28 ry#fd (rY3.Fd): Relay 3 de-energized delay Settable range: time 0:00.0~9(M):59.9(S) Shift Down Enter ry$md(rY4.Md): Relay 4 energized mode Programmable: off(Off) / lo(Lo) / hi(Hi) / hIhld(Hi.HLd) / lOhld(Lo.HLd) / do(DO), These function are same as ry!md and more go-!2 / go-@3 go-!2(Go-1.2): This function is programmable in Relay 3 or 4...

  • Page 29: External Control Input(E.c.i.) Group

    RS485 port. The master is easier to get a switch status through the meter as like as DI module of PLC. Optional function for CS2-VA/RS banK1(Bank 1): when the ECI.1 specified the Bank 1 function & the ECI 1 terminal closed that the relay reach to the Bank 1 set point to energize the relay.

  • Page 30: Analogue Output Group

    Programmable: none / reLpv / pVhld / Mrst / rYrst / di, These functions are same as ecI1 and more banK3 Optional function for CS2-VA/RS banK3(Bank 3): as same function as banK1(Bank 1) Down Enter debnc(dEbnc): Debouncing of external Settable range: 5~255( x 8ms)

  • Page 31: Rs485 Group

    aOhs(Ao.HS): the High point is relative to Settable range: -19999~29999 Analogue Output high; Shift Down Enter To set the higher display value versus high output range (as like as 20mA in A4-20) Ex. Output range set to be A4-20 (4~20mA) is relative to display 0~199.99.

  • Page 32: Field Calibration Group

    prity(PritY): Parity Programmable: NstB1(n.Stb.1): None, 1 stop bit NstB2(n.Stb.2): None, 2 stop bit odd(odd): odd even(Even): Even Down Enter Field Calibration Group [for CS2-SG / CS2-PM / CS2-RS only] ■ C O M R L 1 R L 2 ENT/FN ▲...
  • Page 33 Adjust the machinery structure to the higher signal output status(or any higher status). caLhi(CAL.Hi): Field Calibration High. caLhi Waiting for the value till stable,  pressed Key to read signal high 699bh The high calibration is not need the exactly "span" to calibrate because of the of sensing device.

  • Page 34: Trouble Shooting

    TROUBLE SHOOTING ■ Display Issue: PROBLEM CHECKING LIST REMEDY 1.To inspect whether did the input Please change another meter that is matching in the field. Display shows ►For CS2-PR, input range can be programmed in same signal type (V/A/mA..) of meter ovfl -ovfl type(mA or V).
  • Page 35 Relay Output Issue: PROBLEM CHECKING LIST REMEDY The parameters Check if the label of meter for detail A. Please check the product number and output(O/P:_____) of Relay doesn’t specification. description again for confirmation the relay output is shown specified or not? B.
  • Page 36 A.Please checks the address table of RS485 to assume 2. Check if the square orange LED of whether did the address right or not? RS485 dose bright, but reply Error. B.Please checks the start address and data format are correct. C.

  • Page 37: Rs485 Modbus Rtu Mode

    RS485 MODBUS RTU MODE ■ ■ Modbus RTU Mode protocol 1. Function 03H (Read Holding Registers) Request Data Frame; EX: Read the data of display value(0000H starts from 1 Word) SLAVE FUNCTION Starting Starting No. of Word No. of Word Address Address Hi Address Lo...

  • Page 38: Programming Level

     Programming Level [Input Group] Name Address Range Explain Initial Write/Read Note No use unless CS2-PR RESERVED 000Dh aItyp The address is for CS2-PR only Analogue Input Type 0:0~10V 1:0~5V 2:1~5V 3:0~20mA 4:4~20mA 5:0~10mA aIlo 000Eh 0.00~100.00% 0.00% Input Low aIhi 000Fh 0.00~100.00%...

  • Page 39: [Eci Group]

    002Eh Reset for Relay Energized Hold 0: No 1: Yes 002Fh RESERVED No use unless CS2-VA & CS2-RS bank The addres is for CS2-VA & CS2-RS bit1=1; Bank2 selected bit2=1; Bank3 selected bit0=bit1-bit2=0; Bank0 selected [ECI Group] Name Address Range...

  • Page 40: [Ao Group]

    ADtek assumes no responsibility for any inaccuracies that may be contained in this document, and make no commitment to update or to keep current the information contained in this manual. ADtek reserves the right to make improvements to this document and/or product at any time without notice.
  • Page 41 ADDRESS TABLE **Address number are Hexadecimal For 5-digital Dispaly ■ ■ User level Name Address Range Explain Initial Write/Read Note -19999~99999 0000h PV_H Present Value 0001h PV_L ry!sp_H -19999~99999 0002h Relay1 Set Point 50000 ry!sp_L 0003h ry@sp_h -19999~99999 0004h Relay2 Set Point 50000 ry@sp_L 0005h...
  • Page 42 0:No 1:Yes The address is for CS2-PR only 0022h Analogue Input Type aItyp 0:0~10V 1:0~5V 2:1~5V 3:0~20mA 4:4~20mA 5:0~10mA aIlo 0023h 0.00~100.00% 0.00% Input Low aIhi 0024h 0.00~100.00% 100.00% Input High 0025h PV Decimal Point pVdp 0: 00000 1: 0000.0 2: 000.00 3: 00.000 4: 0.0000 0026h The clear of PV_ZERO and PV_SPAN...
  • Page 43 De-Energized Delay Time of Relay4 (0.1second) rYrst 003Fh Reset for Relay Energized Hold 0: No 1: Yes bank 0040h The addres is for CS2-VA、CS2-RS & CS2-PR Bank selection bit0=1; Bank1 selected bit1=1; Bank2 selected bit2=1; Bank3 selected bit0=bit1=bit2=0; Bank0 selected 【ECI Group】 Name...
  • Page 44 0: 0~10V 1: 0~5V 2:1~5V 3: 0~20mA 4: 4~20mA 5: 0~10mA ZSrst 0046h The clear of AO_ZERO and AO_SPAN 0: None 1: AO_ZERO 2: AO_SPAN 3: Both aOlmt 0047h 00.00%~110.00% Analogue Output High Limit 110.00% 【RS485 Group】 Name Address Range Explain Initial Write/Read Note...

This manual is also suitable for:

Cs2-prCs2-sgCs2-pmCs2-rsCs2-t
