Rs485 Group - ADTEK MW-5 Operating Manual



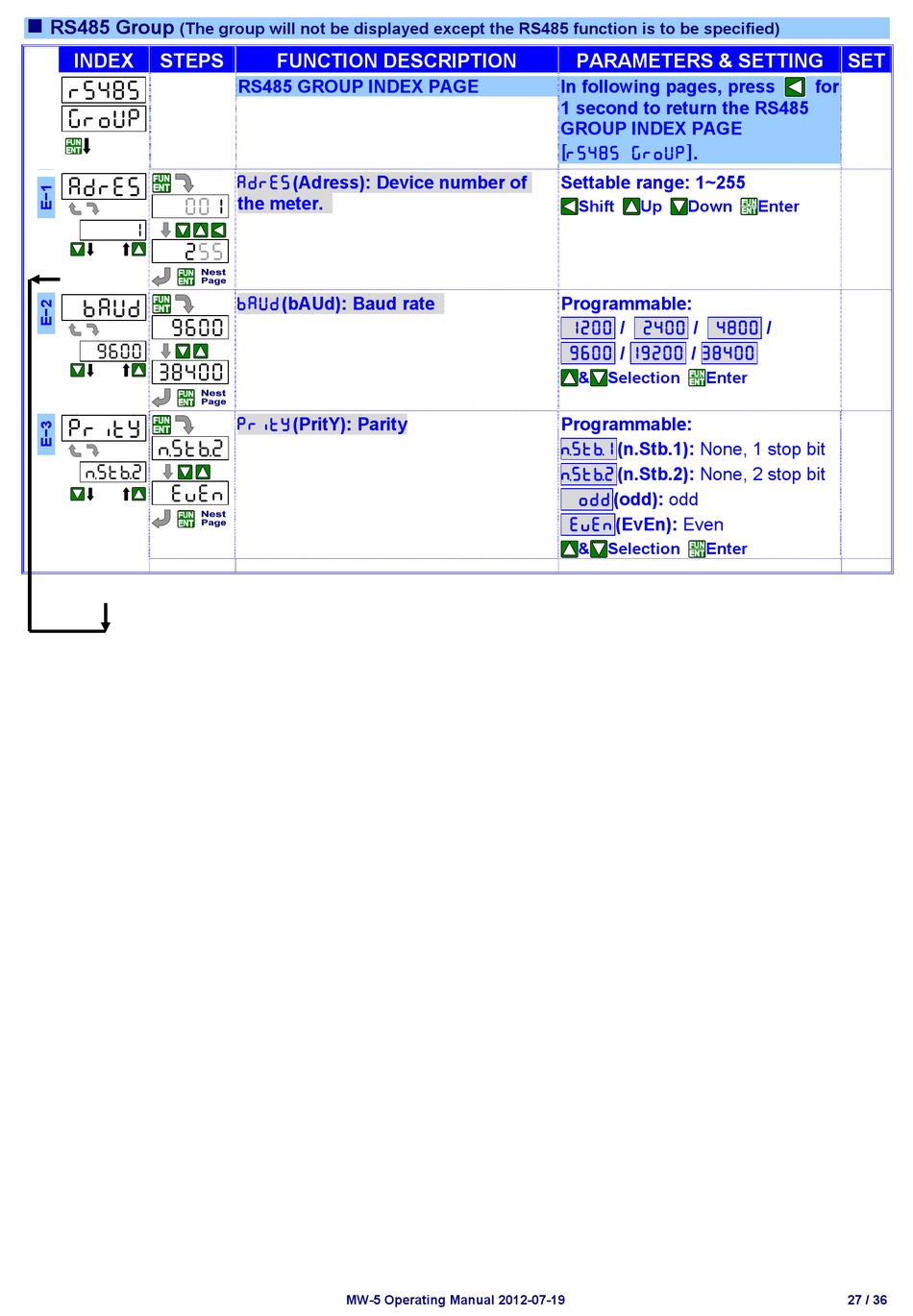

RS485 Group

(The group will not be displayed except the RS485 function is to be specified)
INDEX STEPS
rs485
group
adres
001
1
255
baud
9600
9600
38400
prity
NstB2
NstB2
even
FUNCTION DESCRIPTION
RS485 GROUP INDEX PAGE
adres(Adress): Device number of
the meter.
baud(bAUd): Baud rate
prity(PritY): Parity
MW-5 Operating Manual 2012-07-19
PARAMETERS & SETTING
In following pages, press
1 second to return the RS485
GROUP INDEX PAGE
[rs485 group].
Settable range: 1~255
Shift Up Down
Programmable:
1200 / 2400 / 4800 /
9600 / 19200 / 38400
& Selection Enter
Programmable:
NstB1(n.Stb.1): None, 1 stop bit
NstB2(n.Stb.2): None, 2 stop bit
odd(odd): odd
even(EvEn): Even
& Selection Enter
SET
for
Enter
27 / 36
