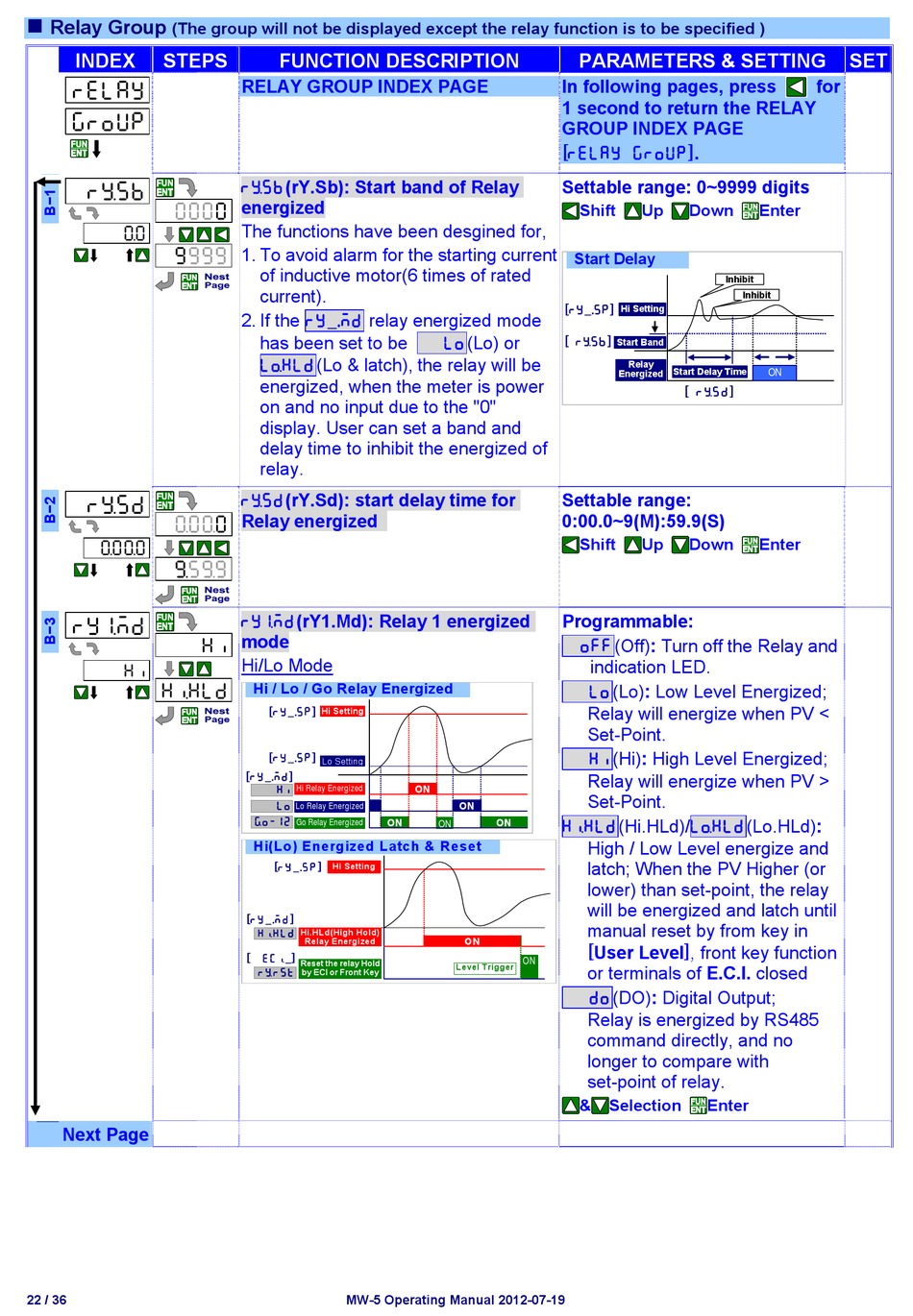

Relay Group - ADTEK MW-5 Operating Manual



Relay Group

(The group will not be displayed except the relay function is to be specified )
INDEX STEPS
relay
group
rYsb
0000
)0
9999
rYsd
)0)0
)0)0
(5(9
ry!md
hi
hIhld
Next Page
22 / 36
FUNCTION DESCRIPTION
RELAY GROUP INDEX PAGE
rYsb(rY.Sb): Start band of Relay
energized
The functions have been desgined for,
1. To avoid alarm for the starting current
of inductive motor(6 times of rated
current).
2. If the ry_.md relay energized mode
has been set to be
lOhld(Lo & latch), the relay will be
energized, when the meter is power
on and no input due to the "0"
display. User can set a band and
delay time to inhibit the energized of
relay.
rYsd(rY.Sd): start delay time for
Relay energized
ry!md(rY1.Md): Relay 1 energized
mode
hi
Hi/Lo Mode
Hi / Lo / Go Relay Energized
[ry_.sp]
Hi Setting
[ry_.sp]
Lo Setting
[ry_.md]
hi Hi Relay Energized
lo
Lo Relay Energized
Go-12
Go Relay Energized
Hi(Lo) Energized Latch & Reset
[ry_.sp]
Hi Setting
[ry_.md]
hIhld
Hi.HLd(High Hold)
Relay Energized
[
ecI_]
Reset the relay Hold
rYrst
by ECI or Front Key
MW-5 Operating Manual 2012-07-19
lo(Lo) or
ON
ON
ON ON ON
ON
ON
Level T rigger
PARAMETERS & SETTING
In following pages, press
1 second to return the RELAY
GROUP INDEX PAGE
[relay group].
Settable range: 0~9999 digits
Shift Up Down
Start Delay
Inhibit
[ry_.sp]
Hi Setting
[ rYsb]
Start Band
Relay
Start Delay Time
Energized
[ rYsd]
Settable range:
0:00.0~9(M):59.9(S)
Shift Up Down
Programmable:
off(Off): Turn off the Relay and
indication LED.
lo(Lo): Low Level Energized;
Relay will energize when PV <
Set-Point.
hi(Hi): High Level Energized;
Relay will energize when PV >
Set-Point.
hIhld(Hi.HLd)/lOhld(Lo.HLd):
High / Low Level energize and
latch; When the PV Higher (or
lower) than set-point, the relay
will be energized and latch until
manual reset by from key in
[User Level], front key function
or terminals of E.C.I. closed
do(DO): Digital Output;
Relay is energized by RS485
command directly, and no
longer to compare with
set-point of relay.
& Selection Enter
SET
for
Enter
Inhibit
ON
Enter
