E1=up
no
yes
E2=dn
no
yes

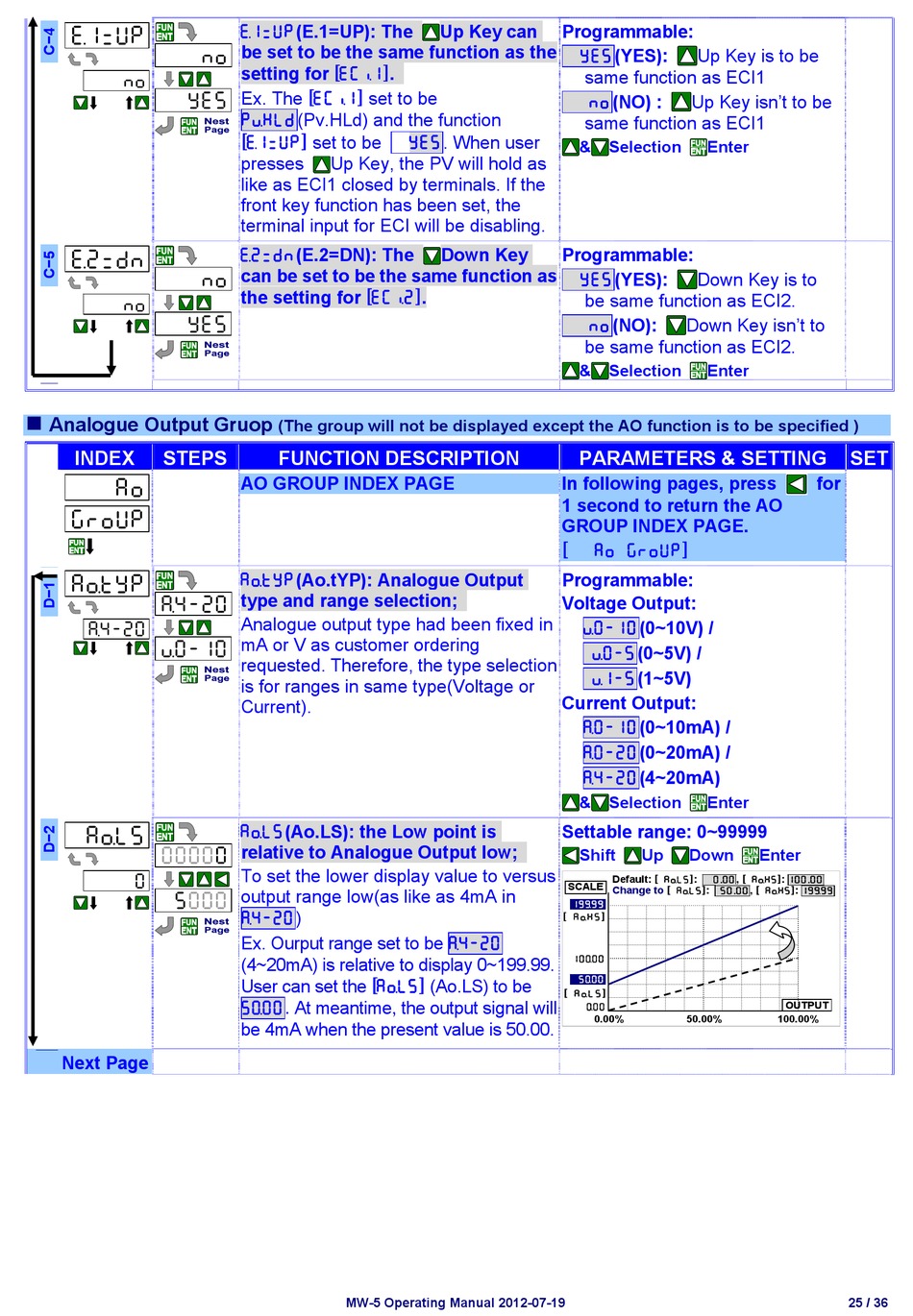

Analogue Output Gruop
INDEX
STEPS
ao
group
aOtyp
A4-20
A4-20
V0-10
aOls
00000
0
5000
Next Page
E1=up(E.1=UP): The
be set to be the same function as the
no
setting for [ecI1].
Ex. The [ecI1] set to be
pVhld(Pv.HLd) and the function
[E1=up] set to be
presses
Up Key, the PV will hold as
like as ECI1 closed by terminals. If the
front key function has been set, the
terminal input for ECI will be disabling.
E2=dn(E.2=DN): The
can be set to be the same function as
no
the setting for [ecI2].
(The group will not be displayed except the AO function is to be specified )
FUNCTION DESCRIPTION
AO GROUP INDEX PAGE
aOtyp(Ao.tYP): Analogue Output
type and range selection;
Analogue output type had been fixed in
mA or V as customer ordering
requested. Therefore, the type selection
is for ranges in same type(Voltage or
Current).
aOls(Ao.LS): the Low point is
relative to Analogue Output low;
To set the lower display value to versus
output range low(as like as 4mA in
A4-20)
Ex. Ourput range set to be A4-20
(4~20mA) is relative to display 0~199.99.
User can set the [aOls] (Ao.LS) to be
5)00. At meantime, the output signal will
be 4mA when the present value is 50.00.
MW-5 Operating Manual 2012-07-19
Up Key can
Programmable:
yes(YES):
yes. When user
&
Down Key
Programmable:
yes(YES):
&
PARAMETERS & SETTING
In following pages, press
1 second to return the AO
GROUP INDEX PAGE.
[
Programmable:
Voltage Output:
Current Output:
&
Settable range: 0~99999
Shift
SCALE
19(99
[ aOhs]
10)00
5)00
[ aOls]
Up Key is to be
same function as ECI1
no(NO) :
Up Key isn't to be
same function as ECI1
Selection
Enter
Down Key is to
be same function as ECI2.
no(NO):
Down Key isn't to
be same function as ECI2.
Selection
Enter
ao group]
V0-10(0~10V) /
V0-5(0~5V) /
V1-5(1~5V)
A0-10(0~10mA) /
A0-20(0~20mA) /
A4-20(4~20mA)
Selection
Enter
Up
Down
Default: [ aOls]:
0.00, [ aOhs]: 100.00
[ aOls]:
50.00, [ aOhs]: 19(99
Change to
)00
0.00%
50.00%
SET
for
Enter
OUTPUT
100.00%
25 / 36
