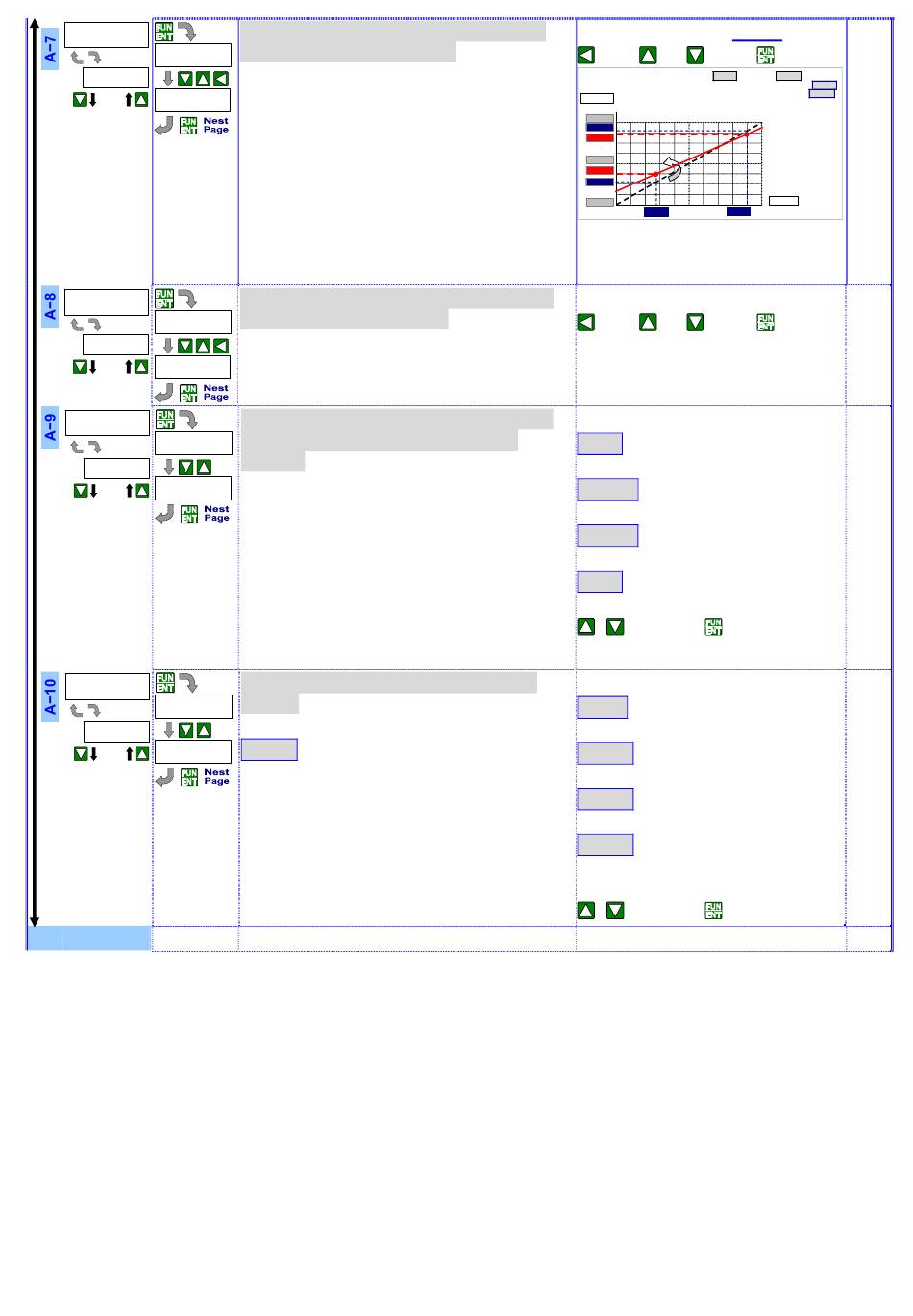

ADTEK MW-5 Operating Manual page 21

pVzro
0
)0
10
pVspn
)0
)0
200)0
ZSclr
none
none
both
dsply
pv
pv
maXhd
Next Page
pVzro: Fine low point Adjustment for
Active power(PV) display;
For Zero & Span of PV, users can get the
"Fine Adjustment" by front key. It's a easy
way to "Just Key-In" the value that the
user want to show in the current input
signal.
Especially, the [pVzro] & [pVspn] are
not only in zero & span of PV, but also
any lower point for [pVzro] & higher point
for [pVspn]. The meter will linearizate for
full scale.
pVspn: Fine high point Adjustment for
Active power(PV) display;
It's same function as like as [pVzro].
ZSclr: Clear Fine Low / High points
Adjustment for Active power(PV)
display;
dsply: Display Function for down
screen
When the [dsply] function set to be
rs485, At meantime, the display is no
longer express the input signal. The PV
screen will show the number from RS485
command & data. The data(number) will
be same as PV that it will compare with
set-point, analogue output and ECI
functions so that is to control analogue
output, relay energized and so on.
MW-5 Operating Manual 2012-07-19
Settable range: 0~99999
Shift Up Down
Default Input: [ lOsc]: )00 , [ hIsc]: 19(99
Digital fine adjut.: input 2.75V, [ pVzro]set to be
input 9.00V, [ pVspn]set to be 17)00
SCALE
Display: Low point from 55.00 to 80.00
[ hIsc]
High point from 180.00 tp 170.00
19(99
18)00
17)00
10)00
8)00
5%00
[ lOsc]
)00
0V 2.75V 5V 9.00V
Settable range: 0~99999
Shift Up Down
Programmable:
none(None): Do not clear the
fine Low / High adjustment.
pV.zro(PV.Zro): To clear the
fine Low adjustment.
pV.spn (PV.SPn): To clear the
fine High adjustment.
both(Both): To clear the fine
Low and High adjustment.
& Selection Enter
Programmable:
pv(PV): shows Active
power(PV)
miNhd(Min.Hd): Minimum Hold
of Active power
maXhd(MAX.Hd): Maximum Hold
of Active power
rs485(RS485): Remote
displayed from RS485
command of master.
& Selection Enter
Enter
8)00
INPUT
10V
Enter
19 / 36
