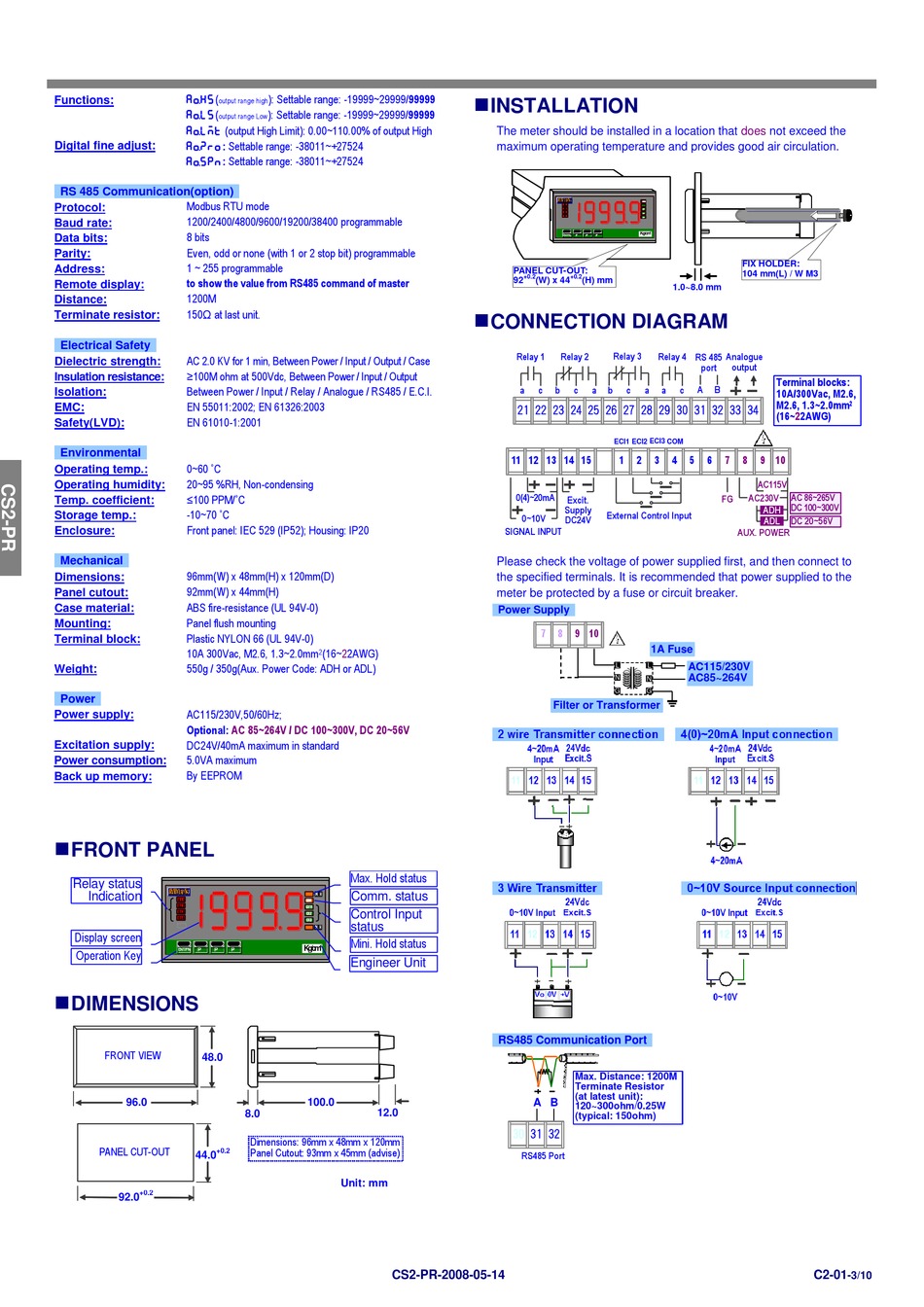

Installation; Connection Diagram - ADTEK CS2-PR Quick Start Manual

aOhs(
Functions: output range high
aOls(
output range Low
aOlmt (output High Limit): 0.00~110.00% of output High
aOzro: Settable range: -38011~+27524
Digital fine adjust:
aOspn: Settable range: -38011~+27524
RS 485 Communication(option)
Modbus RTU mode
Protocol:
1200/2400/4800/9600/19200/38400 programmable
Baud rate:
8 bits
Data bits:
Even, odd or none (with 1 or 2 stop bit) programmable
Parity:
1 ~ 255 programmable
Address:
to show the value from RS485 command of master
Remote display:
1200M
Distance:
150Ω at last unit.
Terminate resistor:
Electrical Safety
AC 2.0 KV for 1 min, Between Power / Input / Output / Case
Dielectric strength:
≥100M ohm at 500Vdc, Between Power / Input / Output
Insulation resistance:
Between Power / Input / Relay / Analogue / RS485 / E.C.I.
Isolation:
EN 55011:2002; EN 61326:2003
EMC:
EN 61010-1:2001
Safety(LVD):
Environmental
0~60 ˚C
Operating temp.:
20~95 %RH, Non-condensing
Operating humidity:
≤100 PPM/˚C
Temp. coefficient:
-10~70 ˚C
Storage temp.:
Front panel: IEC 529 (IP52); Housing: IP20
Enclosure:
Mechanical
96mm(W) x 48mm(H) x 120mm(D)
Dimensions:
92mm(W) x 44mm(H)
Panel cutout:
ABS fire-resistance (UL 94V-0)
Case material:
Panel flush mounting
Mounting:
Plastic NYLON 66 (UL 94V-0)
Terminal block:
10A 300Vac, M2.6, 1.3~2.0mm
550g / 350g(Aux. Power Code: ADH or ADL)
Weight:
Power
AC115/230V,50/60Hz;
Power supply:
Optional:
DC24V/40mA maximum in standard
Excitation supply:
5.0VA maximum
Power consumption:
By EEPROM
Back up memory:

FRONT PANEL
Relay status
Indication
R L1
RL2
2
RL3
RL4
Display screen
? ?
ENT/FN
Operation Key

DIMENSIONS
FRONT VIEW
48.0
96.0
PANEL CUT-OUT
+0.2
44.0
+0.2
92.0
): Settable range: -19999~29999/99999
): Settable range: -19999~29999/99999
(16~22AWG)
2
AC 85~264V / DC 100~300V, DC 20~56V
Max. Hold status
M.H Comm. status
C O M
CI11
Control Input
CI2
CI3
status
M.H
Mini. Hold status
2
K g / c m
?
Engineer Unit
100.0
12.0
8.0
Dimensions: 96mm x 48mm x 120mm
Panel Cutout: 93mm x 45mm (advise)
Unit: mm
CS2-PR-2008-05-14


INSTALLATION

The meter should be installed in a location that
maximum operating temperature and provides good air circulation.
C O M
R
L1 RL
C
2 R
I1 C
2
R L
C 1 I
L 3
2 I
4
3
Kg/cm
ENT/FN ? ? ?
PANEL CUT-OUT:
+0.2 +0.2
92 (W) x 44 (H) mm


CONNECTION DIAGRAM

Please check the voltage of power supplied first, and then connect to
the specified terminals. It is recommended that power supplied to the
meter be protected by a fuse or circuit breaker.
RS485 Communication Port
Max. Distance: 1200M
Terminate Resistor
(at latest unit):
A B
120~300ohm/0.25W
(typical: 150ohm)
30 31 32
RS485 Port
does not exceed the
2
FIX HOLDER:
104 mm(L) / W M3
1.0~8.0 mm
C2-01
-3/10
