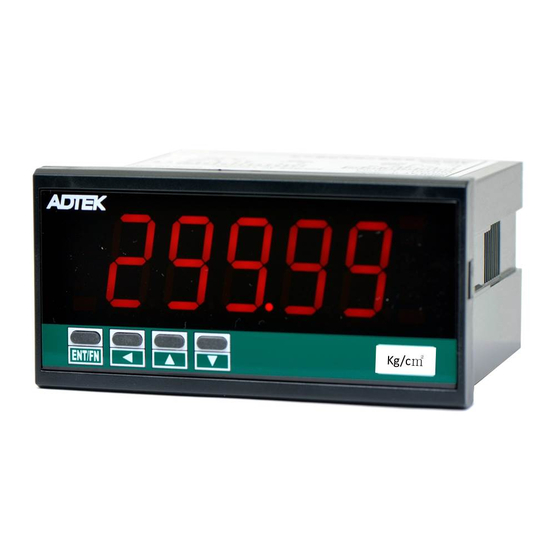

DESCRIPTION
■
For the various measuring requirement, the CS1 series indicator provide simple and low cost
with high accuracy measurement, display, control or communication (Modbus RTU mode) such as
AC voltage/Current, DC process signal 0~10V/4~20mA, Strain Gauge/Load Cell, Potentiometer,
Resistance, Temperature and so on.
They have been designed optional 1 of 3 kinds for 1 Relay, 1 Analogue or 1 RS485 port with
flexible display function such as max/mini hold, PV hold relative PV.....etc that very useful in
testing equipment and others.
FEATURES
■
●
1 relay, 1 Analogue output or RS 485 communication port can be selected
one in option
●
Relay for Hi / Lo energized with Start Delay / Hysteresis / Energized &
De-energized Delay / Relay Energized Latch...etc functions
●
CE Approved

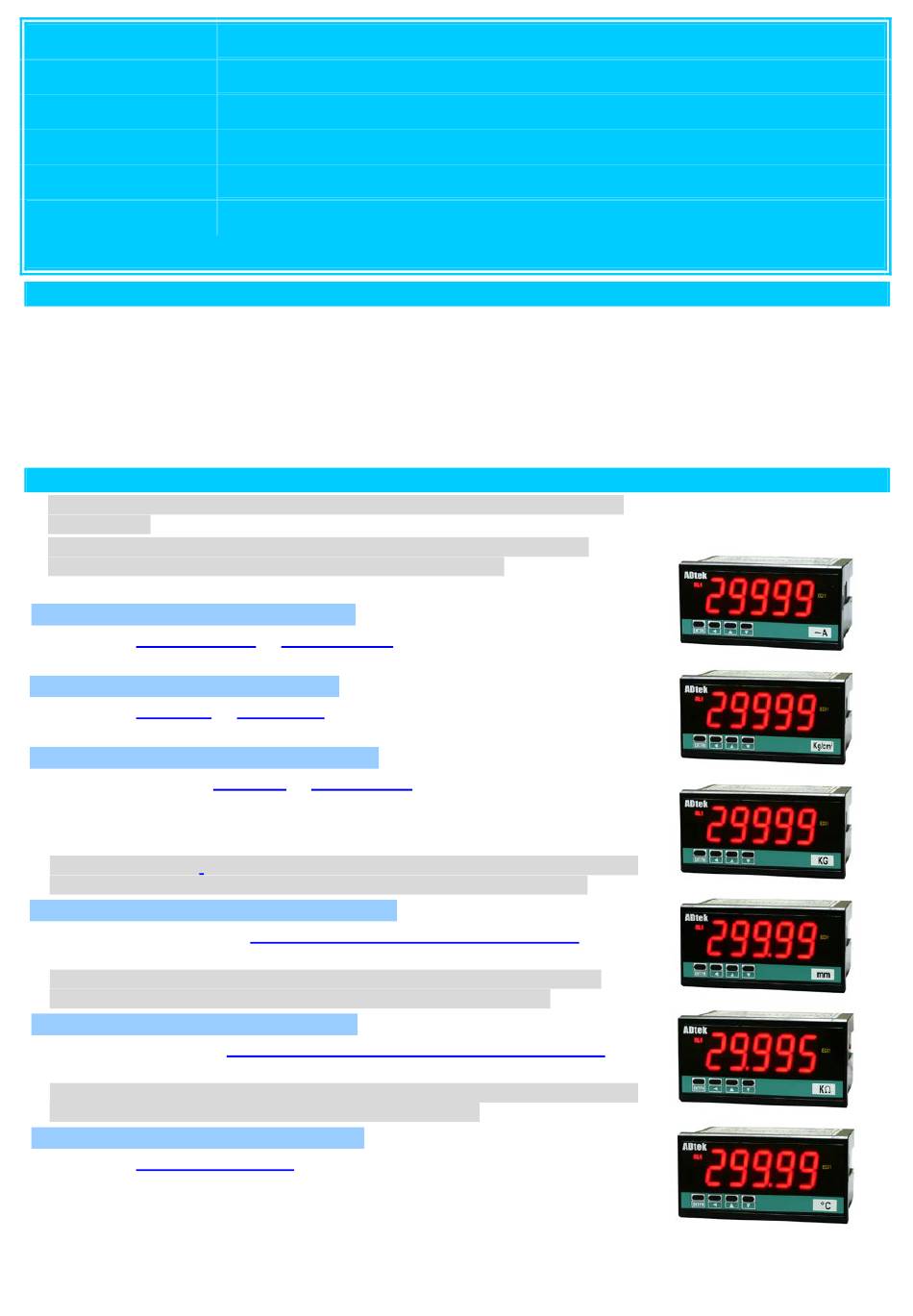

[ CS1-VA VOLT / CURRENT METER ]
●
Measuring Voltage 0~600V or Current 0~10A ; DC / AC / TRMS
●
Accuracy: AC: ± 0.1% f.s.; DC: ± 0.04% f.s.; Display Range: -19999~+29999
[ CS1-PR DC SIGNAL INDICATOR ]
●
Measuring DC 0~10V or 0(4)~20 mA in one indicator(input code: AV)
●
Accuracy: ± 0.04% f.s.; Display Range: -19999~+29999
[ CS1-SG S TRAIN GAUGE INDICATOR ]
●
Measuring ranges of Load Cell or Strain Gauge from 0~1.0/~2.0/~4.0 mV/V or
0~10.0/~20.0/~40.0 mV/V and specified with excitation supply DC 5V or 10V,
40mA
●
Accuracy: ± 0.04% f.s. ; Display Range: -19999~+29999
●
Field calibration of load cell or strain gauge to meet the system requirement
with high/low calibrations which it saved test time and keep accuracy
[ CS1-PM POTENTIOMETER INDICATOR ]
●
Measuring Potentiometer 0~50Ω/~2.0KΩ; 0~2.0KΩ/~100.0KΩ (3 wire)
●
Accuracy: ± 0.04% f.s. ; Display Range: -19999~+29999
●
Field calibration of potentiometer to meet the system requirement with
high/low calibrations which it saved test time and keep accuracy
[ CS1-RS RESISTANCE INDICATOR ]
●
Measuring Resistance 0~200.00Ω/2000.0Ω/20.000KΩ/200.00KΩ (2 wires)
●
Accuracy: ± 0.04% f.s. ; Display Range: -19999~+29999
●
Field calibration of resistance to meet the system requirement with high/low
calibrations which it saved test time and keep accuracy
[ CS1-T TEMPERATURE INDICATOR ]
●
Measuring Pt100Ω; T/C: K,J,E,T(the range will be fix, pleases specified the
exactly input type in ordering)
●
Accuracy: Pt100: ± 0.1%
-19999~+29999(according to the seneor type)
VOLTAGE / CURRENT METERS
DC SIGNAL (20mA/10V) INDICATOR
STRAIN GAUGE / LOAD CELL INDICATOR
POTENTIOMETER INDICATOR
RESISTANCE(2 W) INDICATOR
TEMPERATURE INDICATOR
OPERATION MANUAL
f.s.
; T/C: ± 0.2% f.s.; Display Range:
CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04
1 / 31
Advertisement
Related Manuals for ADTEK CS1 Series
Summary of Contents for ADTEK CS1 Series
- Page 1 OPERATION MANUAL DESCRIPTION ■ For the various measuring requirement, the CS1 series indicator provide simple and low cost with high accuracy measurement, display, control or communication (Modbus RTU mode) such as AC voltage/Current, DC process signal 0~10V/4~20mA, Strain Gauge/Load Cell, Potentiometer, Resistance, Temperature and so on.
- Page 2 *Lower display resolution may caused by more narrow 0~10V from AO card or BCD card of PLC. We built-in a scale. new solution by RS485 which it can save costs of AO and wiring connecting to PLC simultaneously. 2 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 3 Low Cut is set for -0.10, if the PV is (Sample 4 + Sample 5 + Sample 6)/3 (Sample 1 + Sample 2 + Sample 3)/3 under (< = -0.10), that display will be -0.10. 3 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 4 Relay Functions ■ ● Start delay time [ rYsd] (Fig.2-): CS1 series offer the 1 relay output with flexible and Settable range from versatile functions. They can be programmed in [relay 0.0(second)~9(minutes)59.9(seconds); group]. Please refer to the description as following;...
- Page 5 Hysteresis [ry_.rd] [ry_.fd] RS 485 Communication ■ CS1 series can be used as Remote Terminal Unit Relay Energized (RTU) for monitoring and controlling in a SCADA Analogue Output Functions (Supervisor Control And Data Acquisition) system. ■ ●...
- Page 6 Please according to the numbers to do the field calibration ( ) Potentiometer 0~1.0Kohm Low End High End caLlo caLhi C O M R L 1 caLls caLhs ENT/FN ORDERING INFORMATION ■ 6 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 7 0.00Ω ~ 200.00 KΩ version. Specify 0 ~ 10 mA 0(4) ~ 20 mA The ranges can be changeable by dip switch. RS 485 Relay, Analogue Output or RS485 Port can be selected one only 7 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 8 T/C type R 400~1600 °C 0 ~ 10 mA 0(4) ~ 20 mA T/C type S 400~1600 °C T/C type B 400~1800 °C RS 485 Relay, Analogue Output or RS485 Port can be selected one only 8 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 9 Relay, Analogue o/p 10A/300Vac, M2.6, or RS485 port can be 1.3~2.0mm (22~16AWG) selected one only. A1 A2 9 10 AC115V AC230V Analogue ADH AC/DC 86~265V SIGNAL INPUT output AC/DC 20~56V AUX. POWER RS 485 port 9 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 10 2 wire Transmitter connection 4(0)~20mA Input connection Load Cell connection 4~20mA 24Vdc 4~20mA 24Vdc 10Vdc Excit.S Excit.S mV Input Excit.S Input Input 14 15 14 15 11 12 14 15 E.S. Output Output Load Cell 4~20mA E.S. 10 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 11 Input signal calibrated error (Please check Calibrating Input Signal) aoCng Didn’t execute the calibrate of output Signal (Please process Calibrating Output Signal) fail Output Signal calibrated error (Please check Calibrating Output Signal) Operating Key: ■ 11 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 12 (1) In Function Index Page, press will go to the (2) In setting status for function, press Down key next Function Index Page. select function (3) During number Setting, press can roll the digit down. 12 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 13 Programming Level Pass Code Press for 1 sec. to back Measuring Page Default:1000 INPUT GROUP RELAY GROUP ANALOGUE RS485 GROUP input relay rs485 OUTPUT GROUP group group group group 13 / 31 CS1 SERIES – OPERATION MANUAL (EN) -2013-01-04...
- Page 14 ZSclr: Clear Fine Zero / aOlmt: Analog ZSclr aOlmt Span Adjustment for PV Output High Limit display none 11)00 0.00~110.00% none / pVzro / pVspn both Next Page Next Page 14 / 31 CS1 SERIES – OPERATION MANUAL (EN) -2013-01-04...
- Page 15 / reLpv / pVhld / reLpv/ Mrst / rYrst Pcode: Pass Code Pcode setting for access to Programming Level 0000 0000~9999 Flock: Function Level Flock Lock none none / user / 15 / 31 CS1 SERIES – OPERATION MANUAL (EN) -2013-01-04...
- Page 16 [caLls](step F-2) and [caLhs](step F-4). ◘ Please double check the [lOsc](step A-2) and [hIsc](A-3) are correct after selection the deflt or field 16 / 31 CS1 SERIES – OPERATION MANUAL (EN) -2013-01-04...
- Page 17 The values of maximum and minimum can be of maximum and minimum. reset in here. It will save newest maximum and no(No): abort to reset the saved minimum after reset. values of maximum and minimum. PAGE NEXT 17 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 18 "AV" Down Enter from input. Please confirm the wiring is correct or not to set. pVdp(Pv.dP): Decimal Point of PV Programmable: pVdp )0 / )00 / )000 / 0.0000 Down Enter )0000 PAGE NEXT 18 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 19 The data(number) will be same as from RS485 command of master. PV that it will compare with set-point, Down Enter analogue output and down key functions are correspondent to control analogue output, relay energized and so on. PAGE NEXT 19 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 20 PV(Tare) / PV Hold / Reset for max(mini) pVhld(Pv.HLd): PV hold pVhld hold / Reset for relay energized latch. Mrst(M.rST): Reset for Max./Mini hold rYrst(rY.rST): Reset for Relay energized latch Down Enter PAGE NEXT 20 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 21 Level): Programming level lock. User can access to programming level for checking, but can not setting. all(All Level): All lock. User can access to all level for checking, but can not setting. Down Enter 21 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 22 (rY1.rd): Relay 1 energized delay Settable range: ry!rd time 0:00.0~9(M):59.9(S) )0)0 Shift Down Enter )0)0 (5(9 ry!fd (rY1.Fd): Relay 1 de-energized delay Settable range: ry!fd time 0:00.0~9(M):59.9(S) )0)0 Shift Down Enter )0)0 (5(9 22 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 23 ZSclr(Z.S.CLr): Clear the Fine Zero / Span Programmable: ZSclr Adjustment for Analog Output none none(None): Do not clear aOzro(Ao.Zro): Clear low adjust none aOspn(Ao.SPn): Clear high adjust both both(both): Clear low & high adjust Down Enter PAGE NEXT 23 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 24 Potentiometer 0~1.0Kohm Low End High End caLlo caLhi C OM R L 1 caLls caLhs ENT/FN INDEX FUNCTION DESCRIPTION PARAMETERS & SETTING SET Measuring Page 168*8 Pass Code Page enter Pcode & PAGE NEXT 24 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 25 [caLls] (step F-2) and [caLhs](step F-4). ◘ Please double check the [ lOsc](step A-2) and [ hIsc](step A-3) whether are correct after selection the deflt or field. Go back to Measuring Page 25 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 26 2.Check the LED of front key B.Please check the [dNkey](A-12) in [input group] and function is bright or not. It's maybe change the function set from pVhld to to be set to pVhld, and has been doing the function. 26 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 27 1.Check if the LED of RS485 dose A.Please confirms the CHECH SUM program is correct. B.Please check the interval of each command has to over data from the bright, but no reply. meter 3.5byte. 27 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 28 In the case, the [dsply](A-07) has A.Check the communication software of master. Display shows B.Please check the wiring is correct. been set to be rs485 , and the ----- master can not sent the data to the meter. 28 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 29 Input calibration fail; bit2=1 Input calibration NG; bit3=1 Analogue Output calibration fail; bit4=1 Analogue Output calibration NG Mrst 0005h Reset Maximum & Minimum Value 0:No 1:Yes rs485 0006h -19999~29999 PV showing from RS485 command(data) 29 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 30 Address Range Explain Initial Write/Read Note adres 0014h 1~255 RS485 address baud 0015h RS485 baud rate 0:1200 1:2400 2:4800 3:9600 4:19200 5:38400 prity 0016h RS485 parity 0: n-8-1 1: n-8-2, 2: odd, 3: even, 30 / 31 CS1 SERIES–OPERATION MANUAL(EN)-2013-01-04...
- Page 31 ADtek assumes no responsibility for any inaccuracies that may be contained in this document, and make no commitment to update or to keep current the information contained in this manual. ADtek reserves the right to make improvements to this document and/or product at any time without notice.
