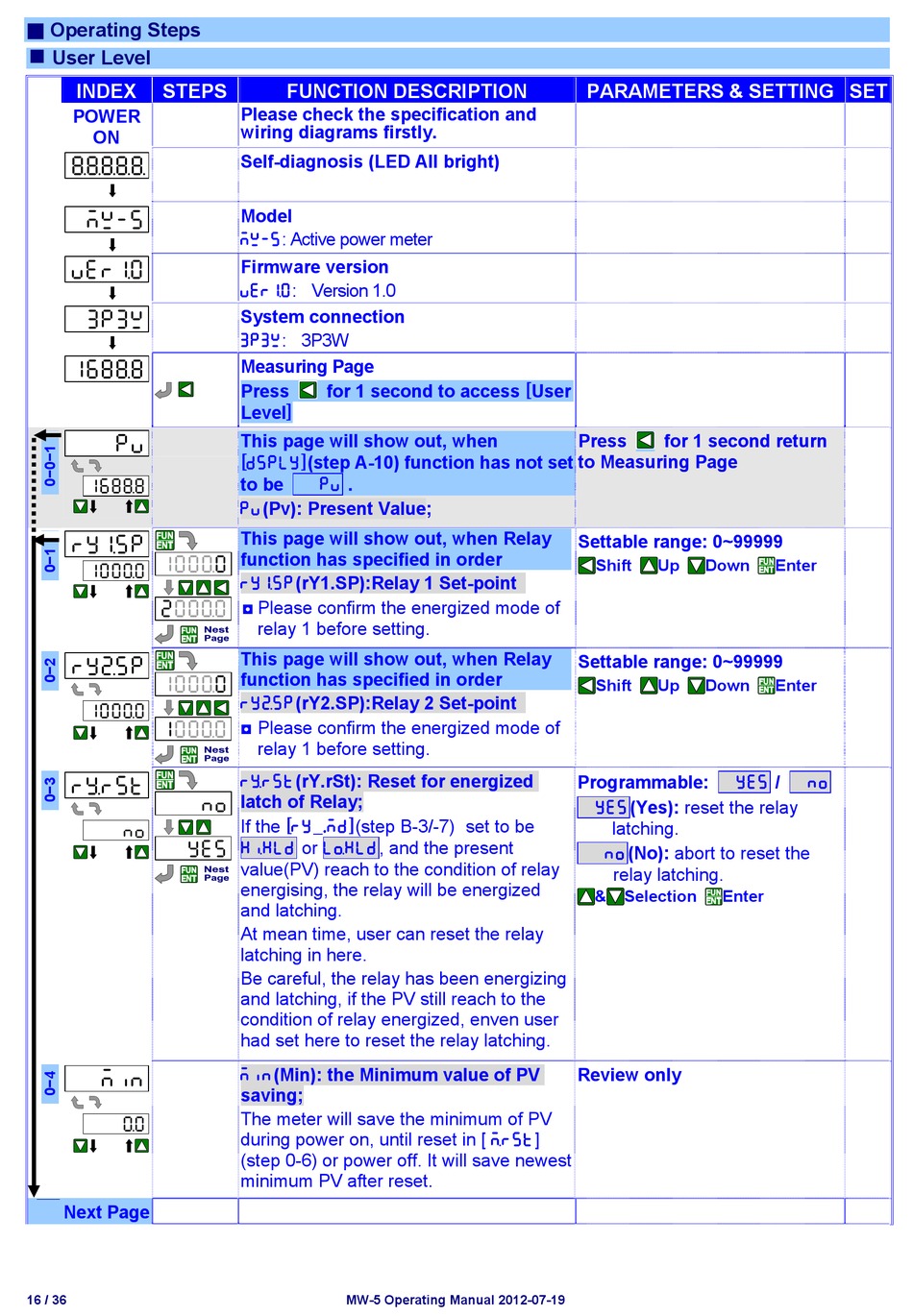

Operating Steps; User Level - ADTEK MW-5 Operating Manual

Operating Steps

■


User Level

INDEX STEPS
POWER
ON
*****
mw-5
ver!0
3p3w
168*8
pv
168*8
ry!sp
100)0
100)0
200)0
ry@sp
100)0
100)0
100)0
rYrst
no
yes
min
)0
Next Page
16 / 36
FUNCTION DESCRIPTION
Please check the specification and
wiring diagrams firstly.
Self-diagnosis (LED All bright)
Model
mw-5: Active power meter
Firmware version
ver!0: Version 1.0
System connection
3p3w: 3P3W
Measuring Page
for 1 second to access [User
Press
Level]
This page will show out, when
[dsply](step A-10) function has not set
to be pv .
pv(Pv): Present Value;
This page will show out, when Relay
function has specified in order
ry!sp(rY1.SP):Relay 1 Set-point
◘
Please confirm the energized mode of
relay 1 before setting.
This page will show out, when Relay
function has specified in order
ry@sp(rY2.SP):Relay 2 Set-point
◘
Please confirm the energized mode of
relay 1 before setting.
rYrst(rY.rSt): Reset for energized
no latch of Relay;
If the [ry_.md](step B-3/-7) set to be
hIhld or lOhld, and the present
value(PV) reach to the condition of relay
energising, the relay will be energized
and latching.
At mean time, user can reset the relay
latching in here.
Be careful, the relay has been energizing
and latching, if the PV still reach to the
condition of relay energized, enven user
had set here to reset the relay latching.
min(Min): the Minimum value of PV
saving;
The meter will save the minimum of PV
during power on, until reset in [ Mrst]
(step 0-6) or power off. It will save newest
minimum PV after reset.
MW-5 Operating Manual 2012-07-19
PARAMETERS & SETTING SET
Press for 1 second return
to Measuring Page
Settable range: 0~99999
Shift Up Down
Settable range: 0~99999
Shift Up Down
Programmable: yes /
yes(Yes): reset the relay
latching.
no(No): abort to reset the
relay latching.
& Selection Enter
Review only
Enter
Enter
no
