Summary of Contents for ADTEK CS1-SG

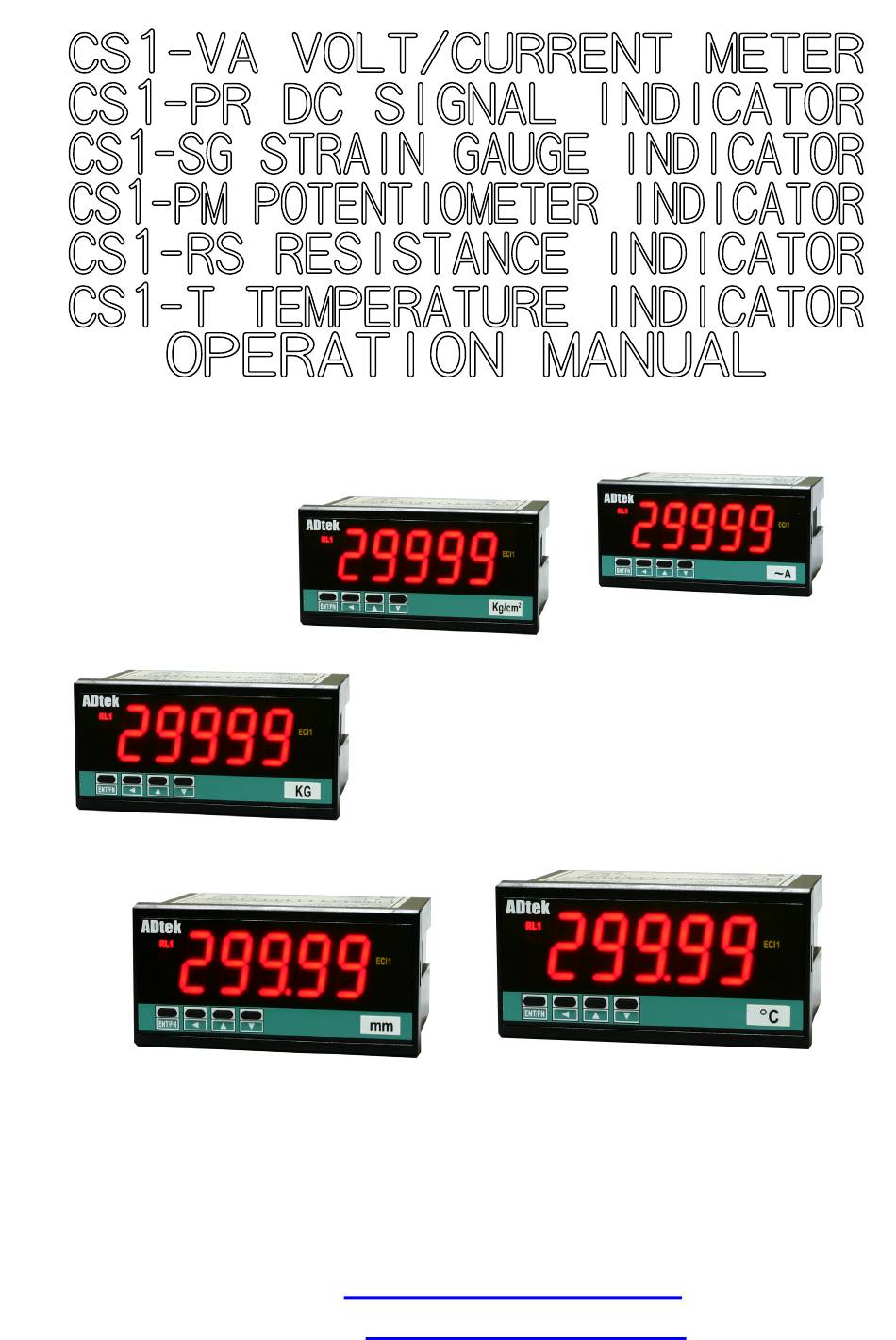

- Page 1 CHANG SHUAN ELECTRONICS CO., LTD. TEL:+886 2 29953100 FAX:+886 2 29953101 EMAIL: sales@csec.com.tw Website: www.adtek.com.tw...
-
Page 2: Display Functions
VOLT / CURRENT METERS CS1-VA (V1.0) DC SIGNAL INDICATOR CS1-PR (V1.0) OPERATION STRAIN GAUGE INDICATOR CS1-SG (V1.0) MANUAL CS1-PM POTENTIOMETER INDICATOR (V1.0) CS1-RS RESISTANCE INDICATOR (V1.0) CS1-T TEMPERATURE INDICATOR (V1.0) ■ FEATURES 【CS1-VA VOLT / CURRENT METER】 Measuring Voltage 0~600V or Current 0~10A；DC / AC / TRMS 【CS1-PR DC SIGNAL INDICATOR】... -

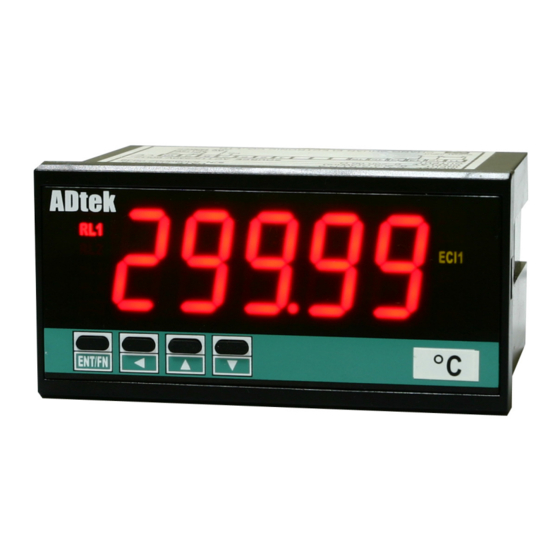

Page 3: Front Panel
ECI or Front Key FIELD CALIBRATION(This function is for CS1-SG, CS1-PM & CS1-RS) In pass time, engineers have take a lot of time to adjust meters or converter to meet the structure of machinery zero and span for the Load Cell and Potentiometer measuring. Now, our CS2-SG & CS2-PM support easlier process to do it called “Field Calibration”. - Page 4 Relay, Analogue SIGNAL INPUT AUX. POWER or RS485 can be AUX. POWER specified one only. RS 485 port RS 485 port 【CS1-SG STRAIN GAUGE INDICATOR】 【CS1-PM POTENTIOMETER INDICATOR】 Relay Relay 11 12 14 15 9 10 11 12 14 15...
- Page 5 ■ ORDERING INFORMATION Excitation − − − Input Optional Aux. CS1−SG− Signal Output Powered OPTION CODE INPUT CODE INPUT CODE OPTIONAL O/P CODE EXCITATION CODE AXU. POWER 1.0mV/V 10.0mV/V None DC 5V AC 115/230 V 2.0mV/V 20.0mV/V 1 Relay DC 10V 4.0mV/V 40.0mV/V 0(1) ~ 10 mA...
-
Page 6: User Level
(Please check the input : Display is negative-overflow (Singal is under display range) signal) (Please check the input : ADC is positive-overflow (Signal is higher than input 120%) signal) (Please check the input : ADC is negative-overflow (Signal is lower than input -120%) signal) (Please send back to : EEPROM occars error... - Page 7 ENGINEER LEVEL – INPUT GROUP MEASURING PAGE ENGINEER LEVEL In Function Index Page, press to enter Function Setting Page for setting; press over 1 second to return Function Group Page. Pv.dP: Decimal Point of PV Pass code enter Lo.Cut: Low Cut to show “0” (Default: 0);...
-
Page 8: Relay Group
ENGINEER LEVEL --- RELAY GROUP, ANALOGUE OUTPUT, RS485 GROUP The groups will be hidden, if the meter without optional function) ENGINEER LEVEL In Function Index Page, press to enter Function Setting Page for setting; press over 1 second to return Function Group Page. rY.Sb: Start band for Relay rY1.HY.: Relay 1 Hysteresis RELAY GROUP... -
Page 9: Slave Function
▲ ▼ ▲ Press to enter & setting Cyclic to Input Group ▼ ▲ FIELD CALIBRATION LEVEL【THIS FUNCTION FOR CS1-SG , CS1-PM & CS1-RS】 ▼ & ▲ CAL.Lo: Field Calibration Low Press Key to stand by − Press Key again to read the signal low of sensing ▼... - Page 10 2. Writing Command by Function 06H (Preset Single Register) Request Data Frame SLAVE FUNCTION Starting Starting Preset Preset Address Code Address Hi Address Lo DATA Hi DATA Lo Response Data Frame SLAVE FUNCTION Starting Starting Preset Preset Address Code Address Hi Address Lo DATA Hi DATA Lo...
- Page 11 【RS485 Group】 Name Address Range Explain Initial Write/Read Note 0014h 1~255 RS485 address 0015h RS485 baud rate 0:1200 1:2400 2:4800 3:9600 4:19200 5:38400 0016h RS485 parity 0: n-8-1 1: n-8-2, 2: odd, 3: even, 10 / 10 CS1-SERIES (V1.0) OPERATION MANUAL 2006-10-26...
