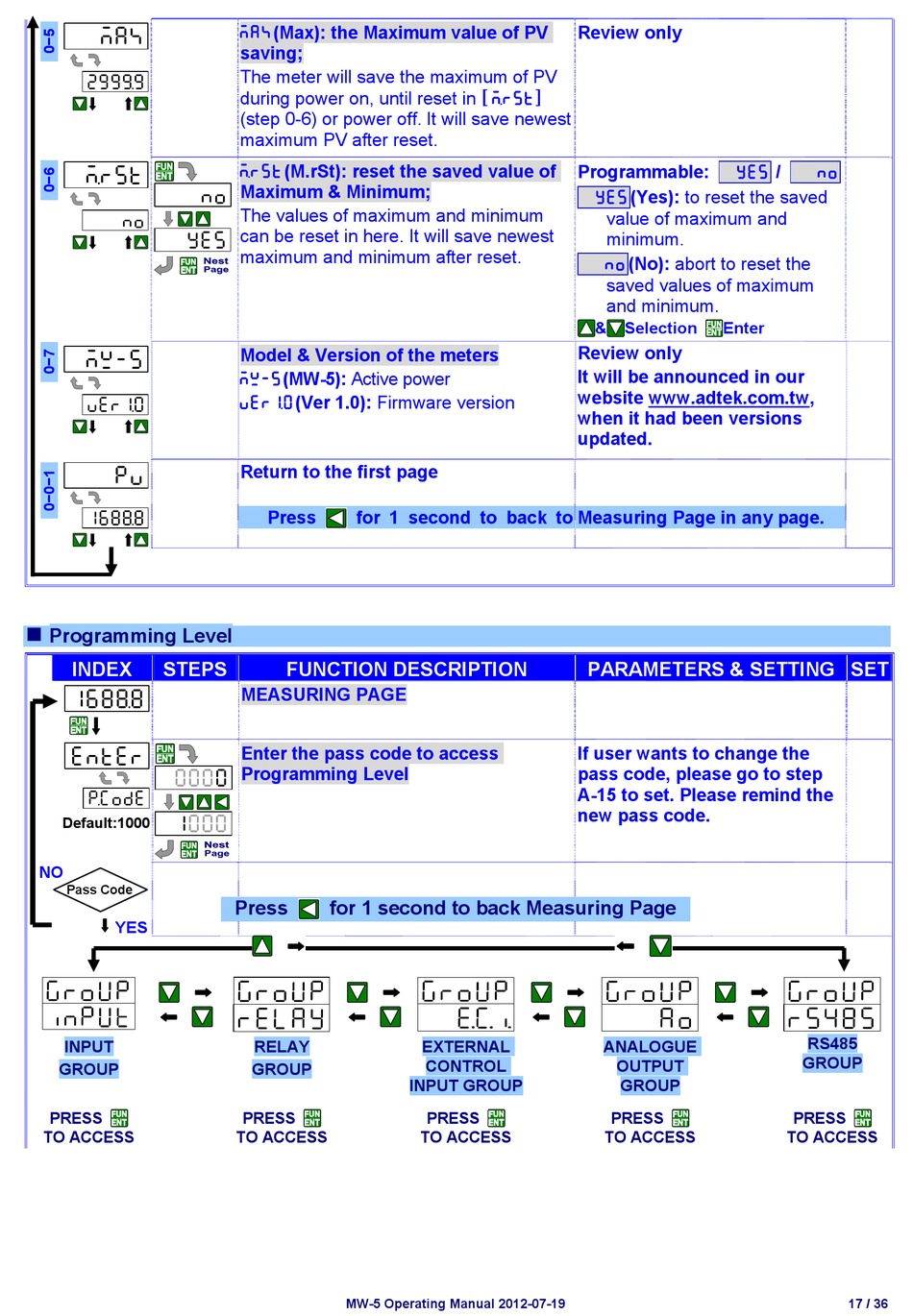

Programming Level

INDEX STEPS
168*8
enter
0000
Pcode
1000
Default:1000
NO
Pass Code
YES
INPUT
GROUP
PRESS
TO ACCESS
max(Max): the Maximum value of PV
saving;
The meter will save the maximum of PV
during power on, until reset in [ Mrst]
(step 0-6) or power off. It will save newest
maximum PV after reset.
Mrst(M.rSt): reset the saved value of
Maximum & Minimum;
no
The values of maximum and minimum
can be reset in here. It will save newest
maximum and minimum after reset.
Model & Version of the meters
mw-5(MW-5): Active power
ver!0(Ver 1.0): Firmware version
Return to the first page
Press for 1 second to back to Measuring Page in any page.
FUNCTION DESCRIPTION
MEASURING PAGE
Enter the pass code to access
Programming Level
Press for 1 second to back Measuring Page
RELAY
GROUP
PRESS
TO ACCESS
MW-5 Operating Manual 2012-07-19
Review only
Programmable:
Review only
It will be announced in our
website www.adtek.com.tw,
when it had been versions
updated.
If user wants to change the
pass code, please go to step
A-15 to set. Please remind the
new pass code.
EXTERNAL
CONTROL

INPUT GROUP

PRESS
TO ACCESS
yes /
yes(Yes): to reset the saved
value of maximum and
minimum.
no(No): abort to reset the
saved values of maximum
and minimum.
& Selection Enter
PARAMETERS & SETTING SET
ANALOGUE
OUTPUT
GROUP
PRESS
TO ACCESS
no
RS485
GROUP
PRESS
TO ACCESS
17 / 36
