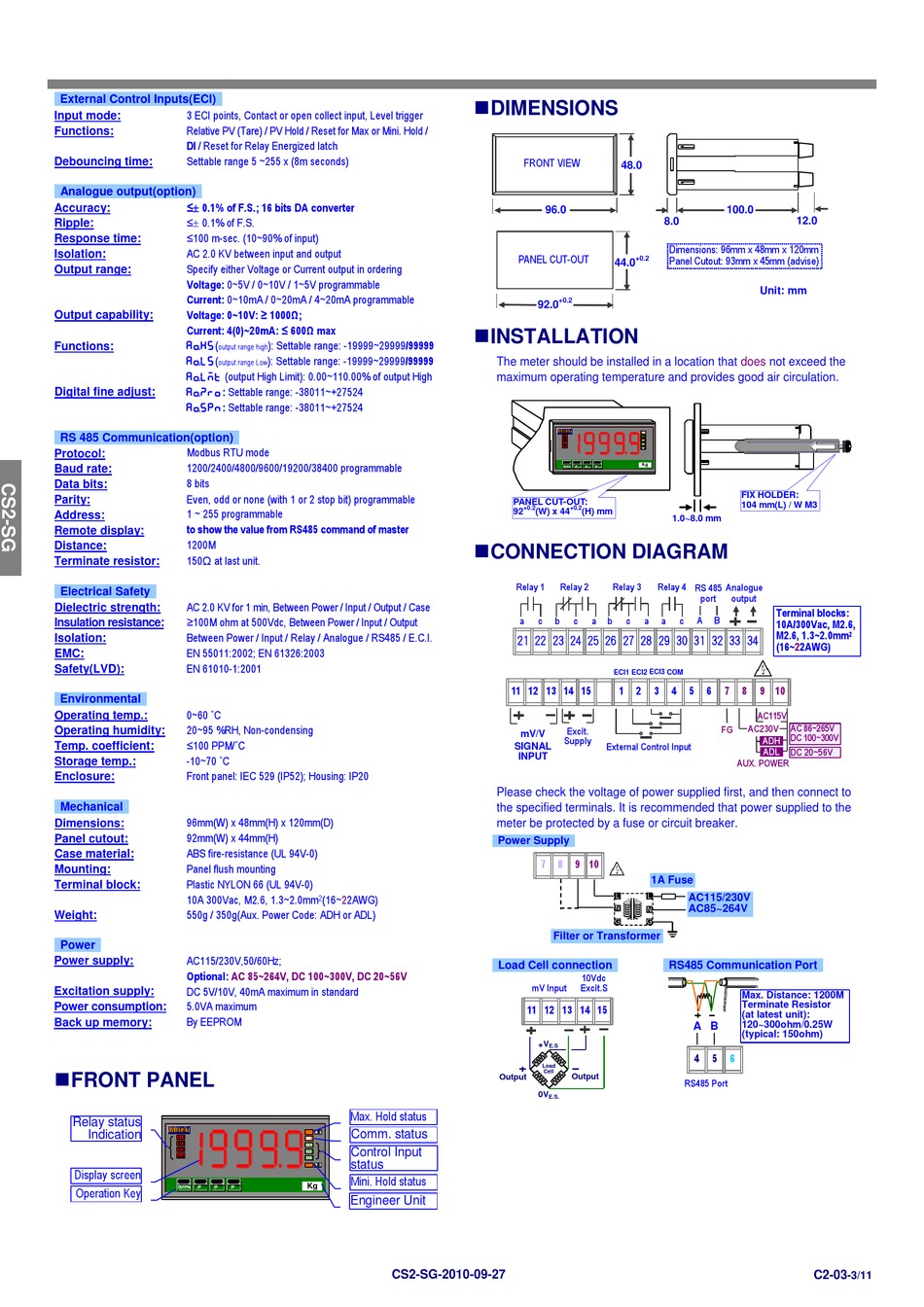

Installation; Connection Diagram - ADTEK CS2-SG Manual

External Control Inputs(ECI)
3 ECI points, Contact or open collect input, Level trigger
Input mode:
Relative PV (Tare) / PV Hold / Reset for Max or Mini. Hold /
Functions:
DI / Reset for Relay Energized latch
Settable range 5 ~255 x (8m seconds)
Debouncing time:
Analogue output(option)
≤ 0.1% of F.S.; 16 bits DA converter
Accuracy:
≤ 0.1% of F.S.
Ripple:
≤100 m-sec. (10~90% of input)
Response time:
AC 2.0 KV between input and output
Isolation:
Specify either Voltage or Current output in ordering
Output range:
Voltage: 0~5V / 0~10V / 1~5V programmable
Current: 0~10mA / 0~20mA / 4~20mA programmable
Voltage: 0~10V: ≥ 1000Ω;
Output capability:
Current: 4(0)~20mA: ≤ 600Ω max
aOhs(
Functions: output range high
aOls(
output range Low
aOlmt (output High Limit): 0.00~110.00% of output High
aOzro: Settable range: -38011~+27524
Digital fine adjust:
aOspn: Settable range: -38011~+27524
RS 485 Communication(option)
Modbus RTU mode
Protocol:
1200/2400/4800/9600/19200/38400 programmable
Baud rate:
8 bits
Data bits:
Even, odd or none (with 1 or 2 stop bit) programmable
Parity:
1 ~ 255 programmable
Address:
to show the value from RS485 command of master
Remote display:
1200M
Distance:
150Ω at last unit.
Terminate resistor:
Electrical Safety
AC 2.0 KV for 1 min, Between Power / Input / Output / Case
Dielectric strength:
≥100M ohm at 500Vdc, Between Power / Input / Output
Insulation resistance:
Between Power / Input / Relay / Analogue / RS485 / E.C.I.
Isolation:
EN 55011:2002; EN 61326:2003
EMC:
EN 61010-1:2001
Safety(LVD):
Environmental
0~60 ˚C
Operating temp.:
20~95 %RH, Non-condensing
Operating humidity:
≤100 PPM/˚C
Temp. coefficient:
-10~70 ˚C
Storage temp.:
Front panel: IEC 529 (IP52); Housing: IP20
Enclosure:
Mechanical
96mm(W) x 48mm(H) x 120mm(D)
Dimensions:
92mm(W) x 44mm(H)
Panel cutout:
ABS fire-resistance (UL 94V-0)
Case material:
Panel flush mounting
Mounting:
Plastic NYLON 66 (UL 94V-0)
Terminal block:
10A 300Vac, M2.6, 1.3~2.0mm
550g / 350g(Aux. Power Code: ADH or ADL)
Weight:
Power
AC115/230V,50/60Hz;
Power supply:
Optional:
DC 5V/10V, 40mA maximum in standard
Excitation supply:
5.0VA maximum
Power consumption:
By EEPROM
Back up memory:

FRONT PANEL
Relay status
Indication
R L1
RL2
2
RL3
RL4
Display screen
? ?
ENT/FN
Operation Key
): Settable range: -19999~29999/99999
): Settable range: -19999~29999/99999
2 (16~22AWG)
AC 85~264V, DC 100~300V, DC 20~56V
Max. Hold status
M.H
Comm. status
C O M
CI11
Control Input
CI2
CI3
status
M.H
Mini. Hold status
? Kg
Engineer Unit
CS2-SG-2010-09-27

DIMENSIONS
FRONT VIEW
48.0
96.0
PANEL CUT-OUT
+0.2
44.0
+0.2
92.0


INSTALLATION

The meter should be installed in a location that
maximum operating temperature and provides good air circulation.
C O M
R
L1 RL
C
R 2
C I1
2
R L
1 C I
3 L
2 I
4
3
Kg
? ? ?
ENT/ F N
PANEL CUT-OUT:
+0.2 +0.2
92 (W) x 44 (H) mm


CONNECTION DIAGRAM

Relay 3
Relay 1 Relay 2
b c a
a c b c a
21 22 23 24 25 26 27 28
ECI1 ECI2
11 12 13 14 15 1 2
Excit.
mV/V
Supply
External Control Input
SIGNAL
INPUT
Please check the voltage of power supplied first, and then connect to
the specified terminals. It is recommended that power supplied to the
meter be protected by a fuse or circuit breaker.
Power Supply
7 8 9 10
L L
N
N
G G
Filter or Transformer
Load Cell connection
10Vdc
mV Input Excit.S
11 12 13 14 15
+ V
E.S
.
Load
Cell
Output Output
0V
E.S.
100.0
12.0
8.0
Dimensions: 96mm x 48mm x 120mm
Panel Cutout: 93mm x 45mm (advise)
Unit: mm
does not exceed the
FIX HOLDER:
104 mm(L) / W M3
1.0~8.0 mm
Relay 4 RS 485 Analogue
port output
Terminal blocks:
A B
a c
10A/300Vac, M2.6,
M2.6, 1.3~2.0mm
29 30 31 32 33 34
(16~22AWG)
ECI3 COM
3 4 5 6 7 8 9 10
AC115V
AC230V AC 86~265V
FG
DC 100~300V
ADH
ADL DC 20~56V
AUX. POWER
1A Fuse
AC115/230V
AC85~264V
RS485 Communication Port
Max. Distance: 1200M
Terminate Resistor
(at latest unit):
120~300ohm/0.25W
A B
(typical: 150ohm)
4 5 6
RS485 Port
C2-03
2
-3/11
