ADTEK CS2-PR Quick Start Manual

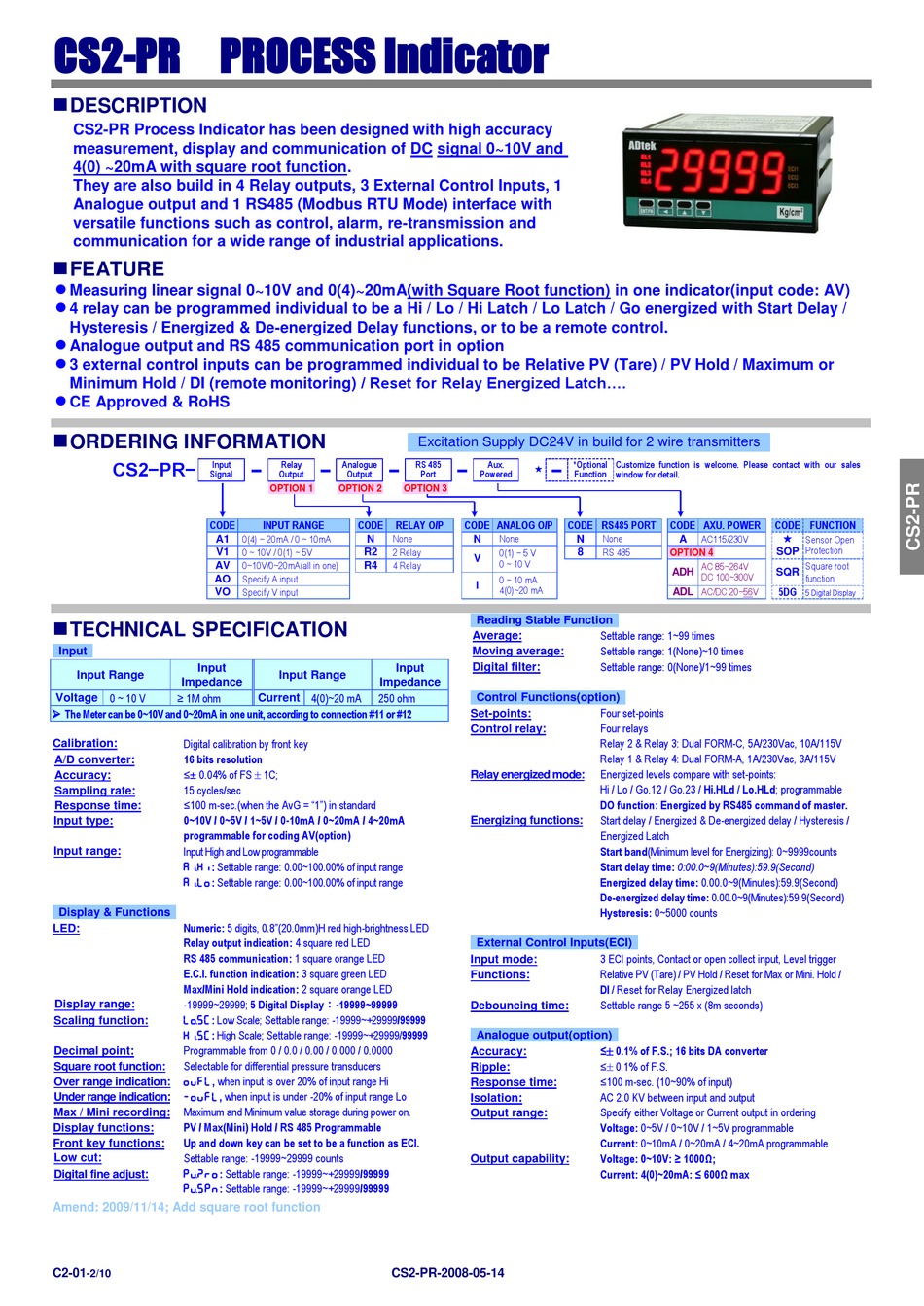

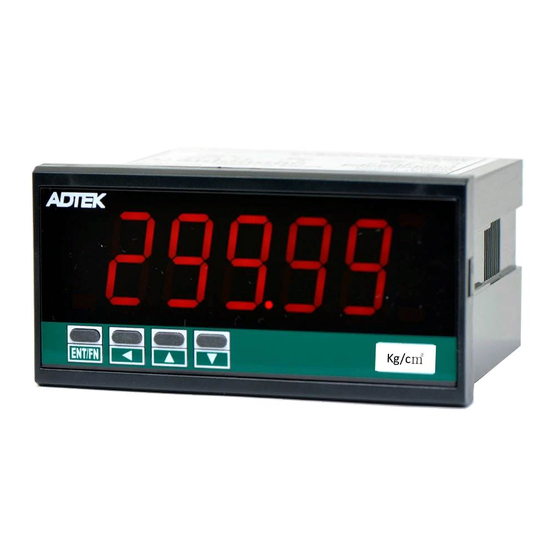

CS2-PR PROCESS Indicator

DESCRIPTION
CS2-PR Process Indicator has been designed with high accuracy
measurement, display and communication of DC signal 0~10V and
4(0) ~20mA with square root function.
They are also build in 4 Relay outputs, 3 External Control Inputs, 1
Analogue output and 1 RS485 (Modbus RTU Mode) interface with
versatile functions such as control, alarm, re-transmission and
communication for a wide range of industrial applications.

FEATURE
●
Measuring linear signal 0~10V and 0(4)~20mA(with Square Root function) in one indicator(input code: AV)
●
4 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch / Go energized with Start Delay /
Hysteresis / Energized & De-energized Delay functions, or to be a remote control.
●
Analogue output and RS 485 communication port in option
●
3 external control inputs can be programmed individual to be Relative PV (Tare) / PV Hold / Maximum or
Minimum Hold / DI (remote monitoring) / Reset for Relay Energized Latch....
●
CE Approved & RoHS

ORDERING INFORMATION
CS2−PR− Input
Signal
CODE
A1
V1
AV
AO
VO

TECHNICAL SPECIFICATION
Input
Input
Input Range
Impedance
Voltage 0 ~ 10 V ≥ 1M ohm
 The Meter can be 0~10V and 0~20mA in one unit, according to connection #11 or #12
Digital calibration by front key
Calibration:
16 bits resolution
A/D converter:
≤± 0.04% of FS  1C;
Accuracy:
15 cycles/sec
Sampling rate:
≤100 m-sec.(when the AvG = "1") in standard
Response time:
0~10V / 0~5V / 1~5V / 0-10mA / 0~20mA / 4~20mA
Input type:
programmable for coding AV(option)
Input High and Low programmable
Input range:
aIhi: Settable range: 0.00~100.00% of input range
aIlo: Settable range: 0.00~100.00% of input range
Display & Functions
Numeric: 5 digits, 0.8"(20.0mm)H red high-brightness LED
LED:
Relay output indication: 4 square red LED
RS 485 communication: 1 square orange LED
E.C.I. function indication: 3 square green LED
Max/Mini Hold indication: 2 square orange LED
-19999~29999; 5 Digital Display：-19999~99999
Display range:
lOsc: Low Scale; Settable range: -19999~+29999/99999
Scaling function:
hIsc: High Scale; Settable range: -19999~+29999/99999
Programmable from 0 / 0.0 / 0.00 / 0.000 / 0.0000
Decimal point:
Selectable for differential pressure transducers
Square root function:
ovfl, when input is over 20% of input range Hi
Over range indication:
-ovfl, when input is under -20% of input range Lo
Under range indication:
Maximum and Minimum value storage during power on.
Max / Mini recording:
PV / Max(Mini) Hold / RS 485 Programmable
Display functions:
Up and down key can be set to be a function as ECI.
Front key functions:
Settable range: -19999~29999 counts
Low cut:
pVzro: Settable range: -19999~+29999/99999
Digital fine adjust:
pVspn: Settable range: -19999~+29999/99999
Amend: 2009/11/14; Add square root function
C2-01
-2/10
− Relay − Analogue − RS 485
Output Output
OPTION 1 OPTION 2 OPTION 3
INPUT RANGE CODE RELAY O/P
0(4) ~ 20mA / 0 ~ 10mA None
N
0 ~ 10V / 0(1) ~ 5V 2 Relay
R2
0~10V/0~20mA(all in one) 4 Relay
R4
Specify A input
Specify V input
Input
Input Range
Impedance
Current 4(0)~20 mA 250 ohm
CS2-PR-2008-05-14
Excitation Supply DC24V in build for 2 wire transmitters
− Aux. − *Optional

Port Powered Function
CODE ANALOG O/P CODE RS485 PORT
None
N N
0(1) ~ 5 V
8
V
0 ~ 10 V
0 ~ 10 mA
I
4(0)~20 mA
Reading Stable Function
Average:
Moving average:
Digital filter:
Control Functions(option)
Set-points:
Control relay:
Relay energized mode:
Energizing functions:
External Control Inputs(ECI)
Input mode:
Functions:
Debouncing time:
Analogue output(option)
Accuracy:
Ripple:
Response time:
Isolation:
Output range:
Output capability:
Customize function is welcome. Please contact with our sales
window for detail.
CODE AXU. POWER CODE FUNCTION
None AC115/230V
A
RS 485
OPTION 4
AC 85~264V
ADH
DC 100~300V
AC/DC 20~56V
ADL
Settable range: 1~99 times
Settable range: 1(None)~10 times
Settable range: 0(None)/1~99 times
Four set-points
Four relays
Relay 2 & Relay 3: Dual FORM-C, 5A/230Vac, 10A/115V
Relay 1 & Relay 4: Dual FORM-A, 1A/230Vac, 3A/115V
Energized levels compare with set-points:
Hi / Lo / Go.12 / Go.23 / Hi.HLd / Lo.HLd; programmable
DO function: Energized by RS485 command of master.
Start delay / Energized & De-energized delay / Hysteresis /
Energized Latch
Start band(Minimum level for Energizing): 0~9999counts
Start delay time: 0:00.0~9(Minutes):59.9(Second)
Energized delay time: 0.00.0~9(Minutes):59.9(Second)
De-energized delay time: 0.00.0~9(Minutes):59.9(Second)
Hysteresis: 0~5000 counts
3 ECI points, Contact or open collect input, Level trigger
Relative PV (Tare) / PV Hold / Reset for Max or Mini. Hold /
DI / Reset for Relay Energized latch
Settable range 5 ~255 x (8m seconds)
≤ 0.1% of F.S.; 16 bits DA converter
≤ 0.1% of F.S.
≤100 m-sec. (10~90% of input)
AC 2.0 KV between input and output
Specify either Voltage or Current output in ordering
Voltage: 0~5V / 0~10V / 1~5V programmable
Current: 0~10mA / 0~20mA / 4~20mA programmable
Voltage: 0~10V: ≥ 1000Ω;
Current: 4(0)~20mA: ≤ 600Ω max

Sensor Open
Protection
SOP
Square root
SQR
function
5DG
5 Digital Display
