8.8.2 Cuspidor
8.9 Water and air quick-connectors
User's manual

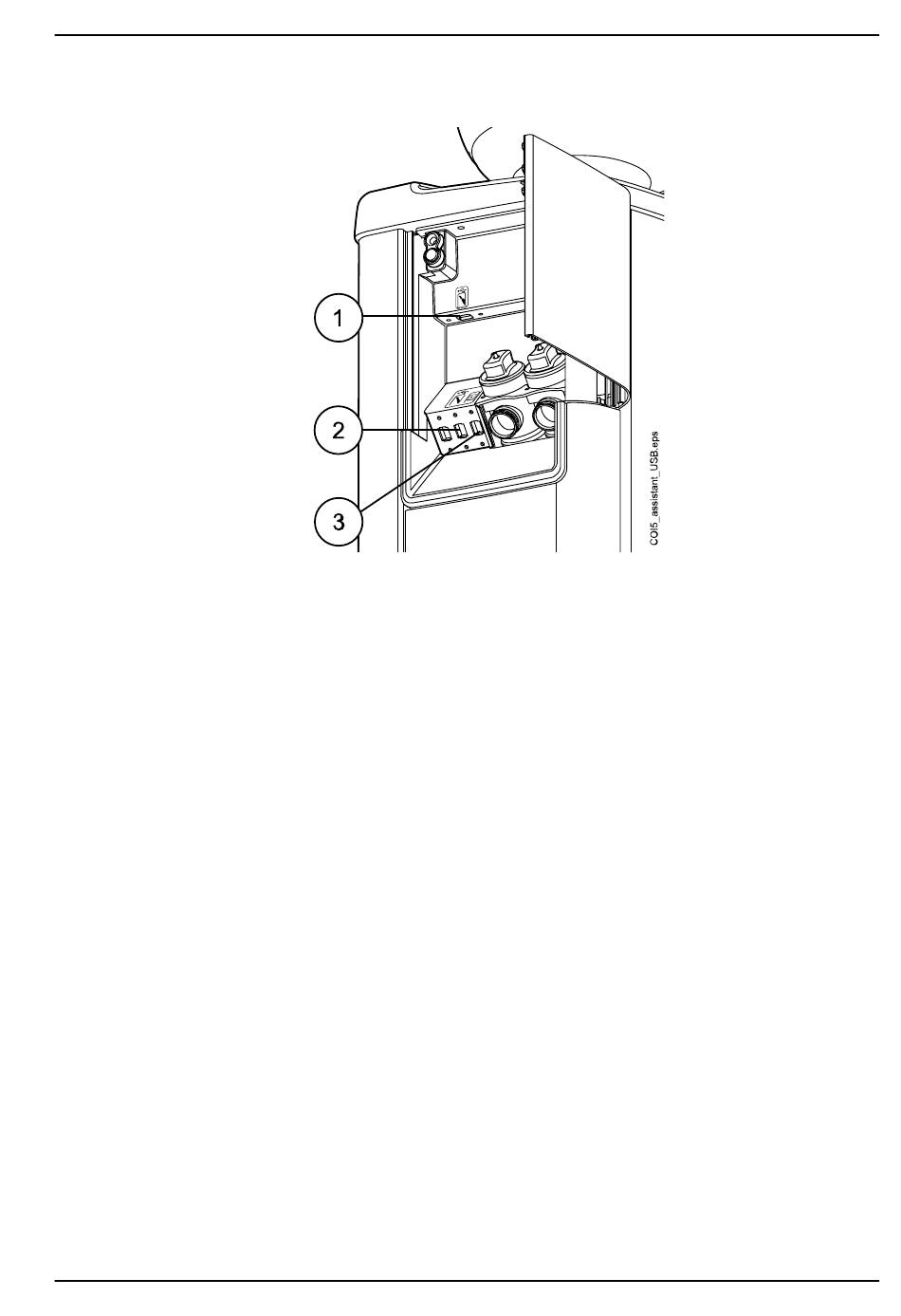

There are three optional USB ports on the cuspidor.
1. USB port for connecting the intraoral scanner
2. USB port for connecting the intraoral camera or for USB memory stick
Connect only intraoral cameras supplied by Planmeca to the USB port.
3. USB port for charging the tablet
The water and air quick-connectors can be used with external devices.
When you connect a device to the quick-connector, water/air flows to the
device.
The water and air quick-connectors are located at the rear of the unit base.
8 Planmeca Compact i dental unit
Planmeca Compact i
31
