8.12 Wiring Configuration for the Encoder

The direction of the encoder, identified by looking into the
shaft end, is determined by which order the pulses enter
the drive. See Illustration 8.6.
•
Clockwise (CW) direction means channel A is 90
electrical degrees before channel B.
•
Counterclockwise (CCW) direction means channel
B is 90 electrical degrees before A.
A
B
8 8
A
B

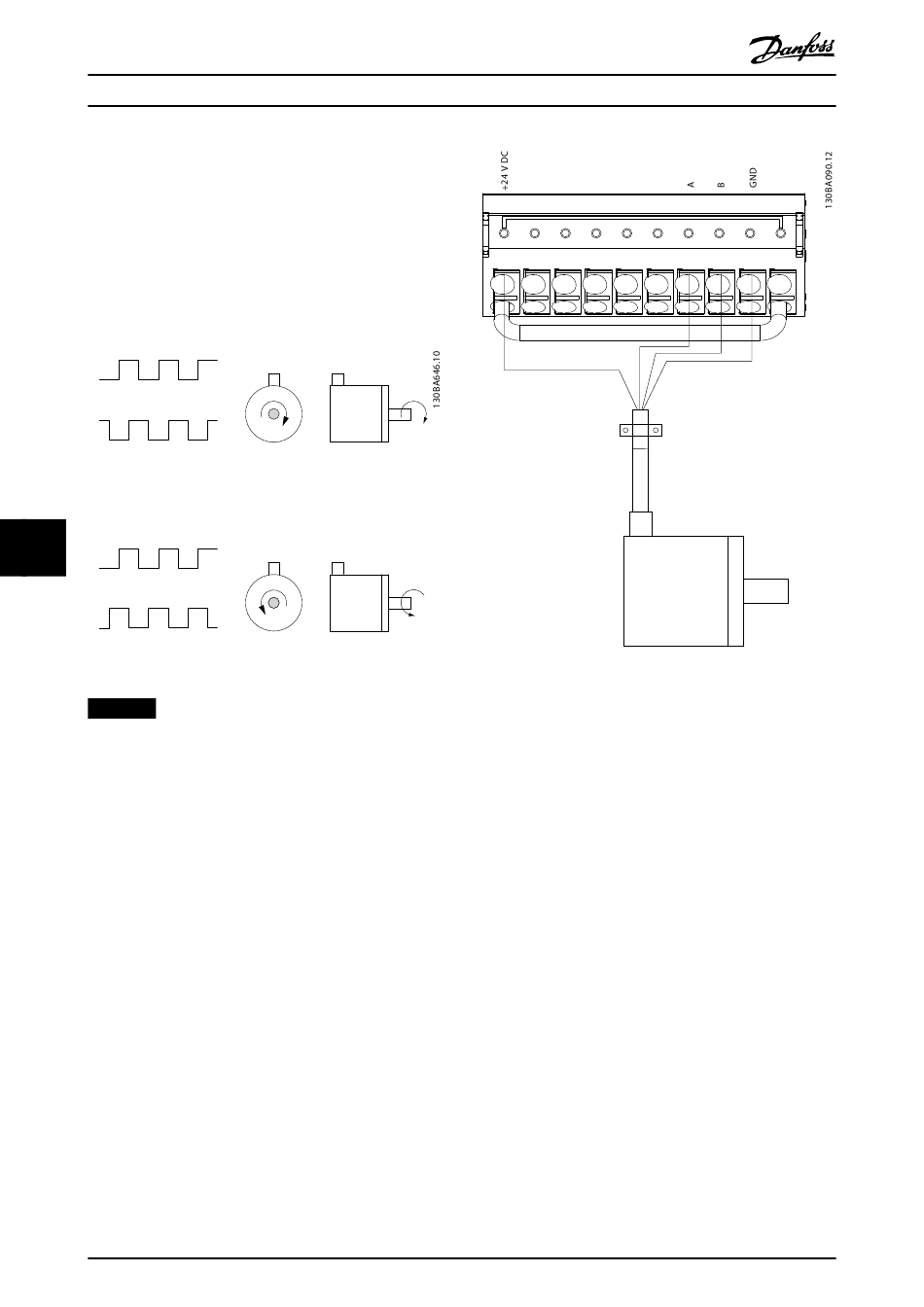

Illustration 8.6 Determining Encoder Direction
NOTICE
Maximum cable length 5 m (16 ft).
78
VLT® AutomationDrive FC 302
CW
CCW
Danfoss A/S © 09/2018 All rights reserved.
12 13 18 19 27 29
24 V or 10–30 V encoder
Illustration 8.7 Wire Configuration for the Encoder
32 33 20 37
