Danfoss VLT AutomationDrive FC 302 Operating Manual page 40

90–315 kw, enclosure size d1h–d8h
Hide thumbs Also See for VLT AutomationDrive FC 302:
Table of Contents

Advertisement

Electrical Installation
VLT® AutomationDrive FC 302
1
2
5
5
M10
M10
15 (0.6)
15 (0.6)
19 (0.8)
18 (0.7)
35 (1.4)
38 (1.5)
1
Mains terminals
2
Motor terminals

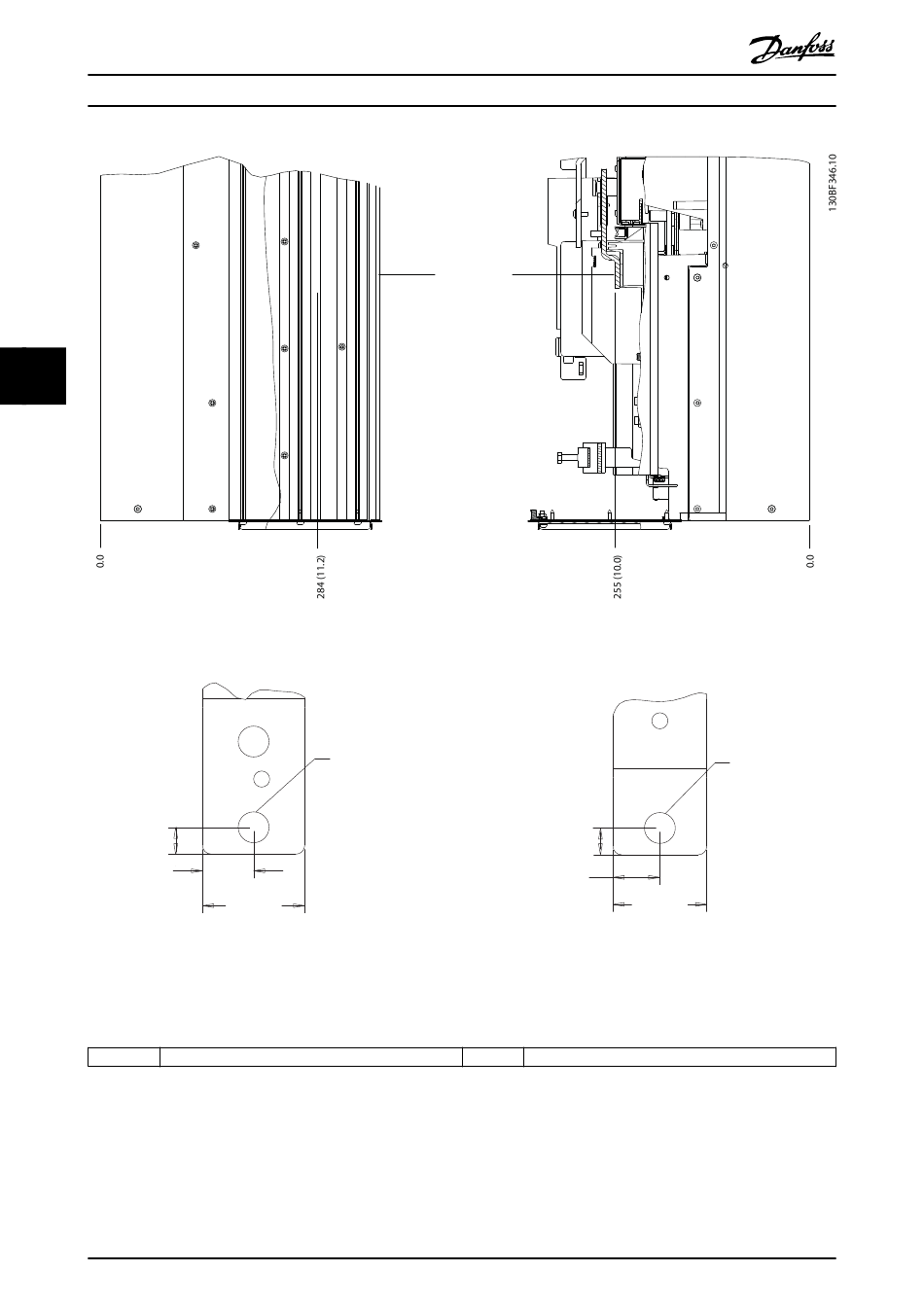

Illustration 5.10 D2h Terminal Dimensions (Side Views)
38
Danfoss A/S © 09/2018 All rights reserved.
MG34U502
