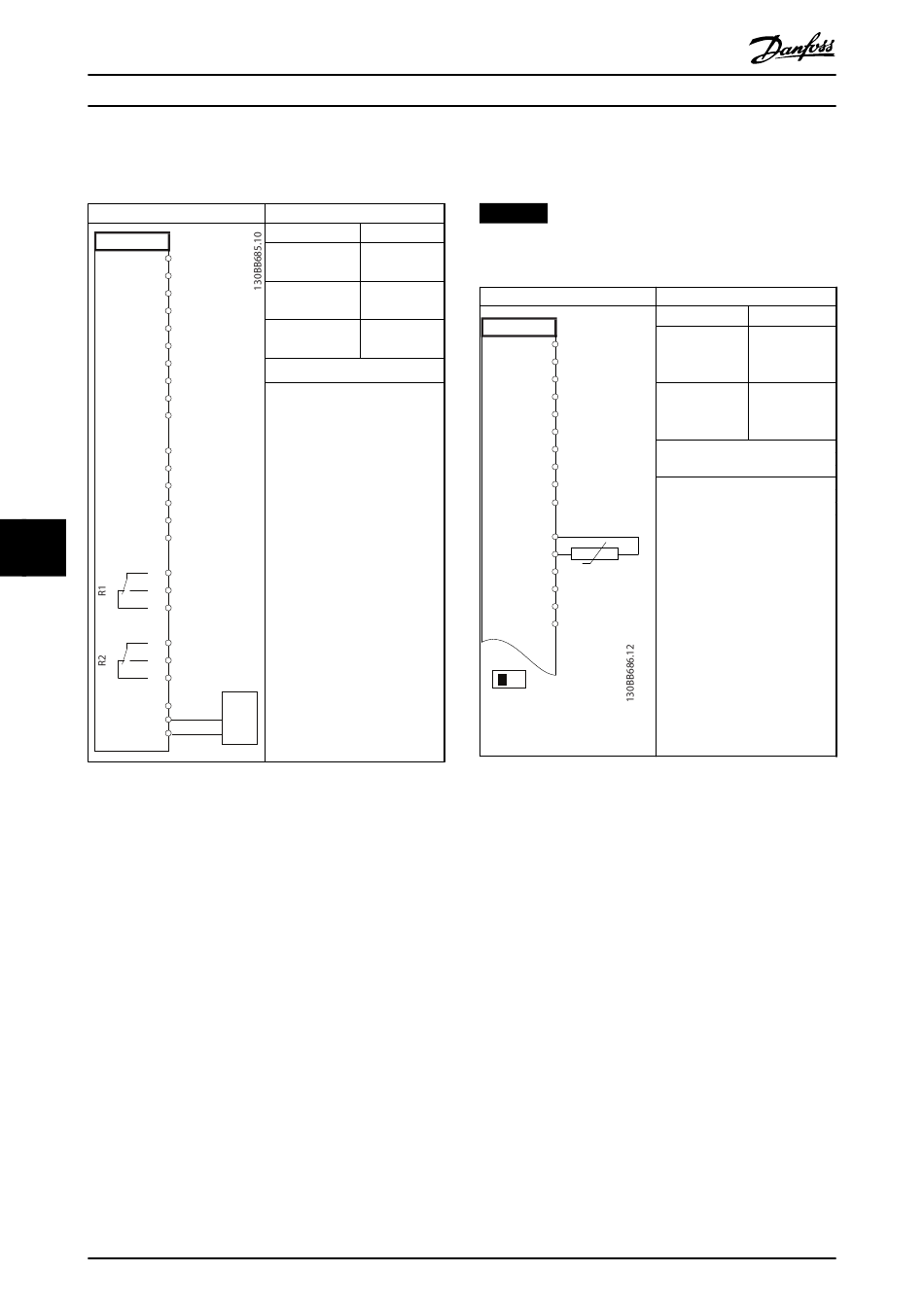

8.8 Wiring Configuration for RS485 Network
Connection
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
8 8
COM
39
01
02
03
04
05
06
61
68
69
Table 8.11 Wiring Configuration for RS485 Network Connection
76
VLT® AutomationDrive FC 302
Parameters
Function Setting
Parameter 8-30 FC*
Protocol
Parameter 8-31 1*
Address
Parameter 8-32 9600*
Baud Rate
*=Default value
Notes/comments:
Select protocol, address, and
baud rate in the parameters.
RS-485
+
-
Danfoss A/S © 09/2018 All rights reserved.
8.9 Wiring Configuration for a Motor
Thermistor
NOTICE
Thermistors must use reinforced or double insulation to
meet PELV insulation requirements.
VLT
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN 37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 8.12 Wiring Configuration for a Motor Thermistor
Parameters
Function Setting
Parameter 1-90 [2] Thermistor
Motor Thermal trip
Protection
Parameter 1-93 [1] analog
Thermistor input 53
Source
*=Default value
Notes/comments:
If only a warning is wanted, set
parameter 1-90 Motor Thermal
Protection to [1] Thermistor
warning.
