Specifications
523 (20.6)

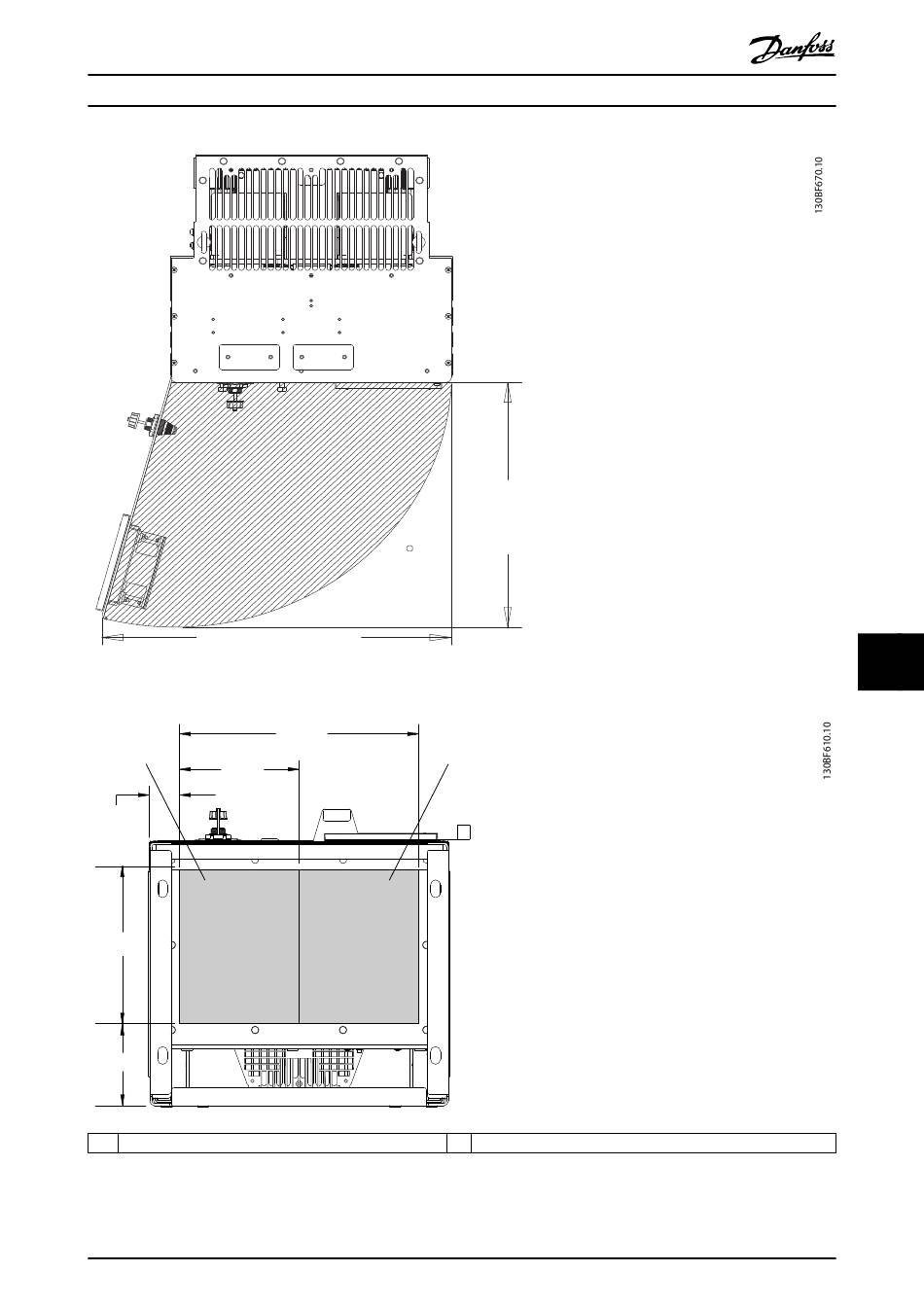

Illustration 10.41 Door Clearance for D8h
1
169 (6.6)
43 (1.7)
222 (8.7)
115 (4.5)
1 Mains side
Illustration 10.42 Gland Plate Dimensions for D8h
MG34U502
Operating Guide
105
337 (13.3)
2
2
