Mechanical Installation
Floor mounting the drive
To secure the pedestal to the floor (after attaching the
drive to the pedestal), use the following steps.
1. Fasten 4 M10 bolts in the mounting holes at the
bottom of the pedestal, securing it to the floor.
See Illustration 4.7.
2. Reposition the pedestal front cover plate, and
fasten with 4 M5 screws. See Illustration 4.6.
4 4
3. Slide the pedestal wall spacer behind the
mounting flange at the top of the drive. See
Illustration 4.6.
4. Fasten 2–4 M10 bolts in the mounting holes at
the top of the drive, securing it to the wall. Use 1
bolt for each mounting hole. The number varies
with enclosure size. See Illustration 4.6.
1
2
1 Mounting holes
2 Bottom of pedestal

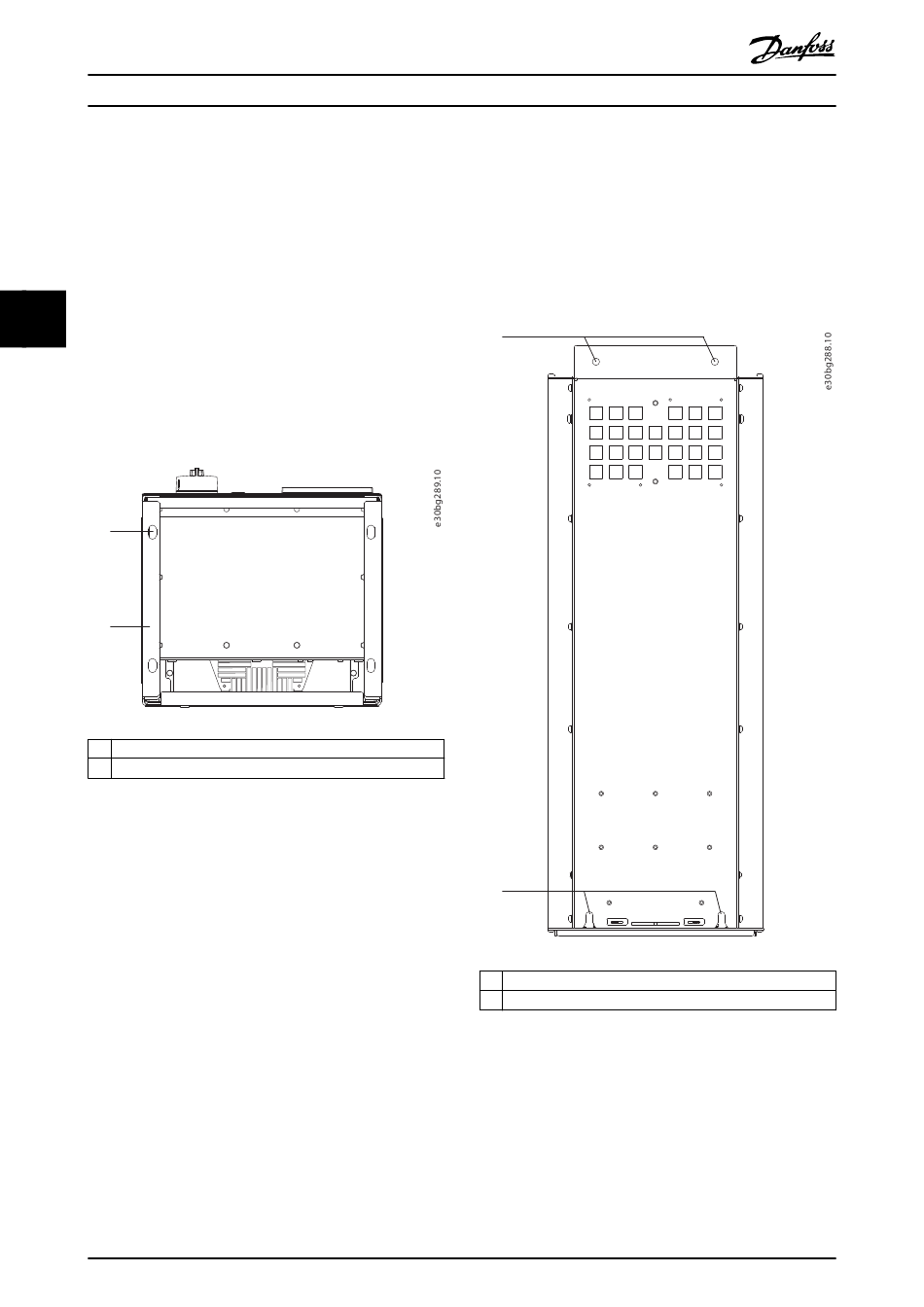

Illustration 4.7 Pedestal-to-floor Mounting Holes
22
VLT® AutomationDrive FC 302
Wall mounting the drive
To wall mount a drive, use the following steps. Refer to
Illustration 4.8.
1.
2.
3.
1
2
1
2
Illustration 4.8 Drive-to-wall Mounting Holes
Danfoss A/S © 09/2018 All rights reserved.
Fasten 2 M10 bolts in the wall to align with the
fastener slots at the bottom of drive.
Slide the fastener slots over the M10 bolts.
Tip the drive against the wall, and secure the top
with 2 M10 bolts in the mounting holes.
Top mounting holes
Lower fastener slots
