Product Overview

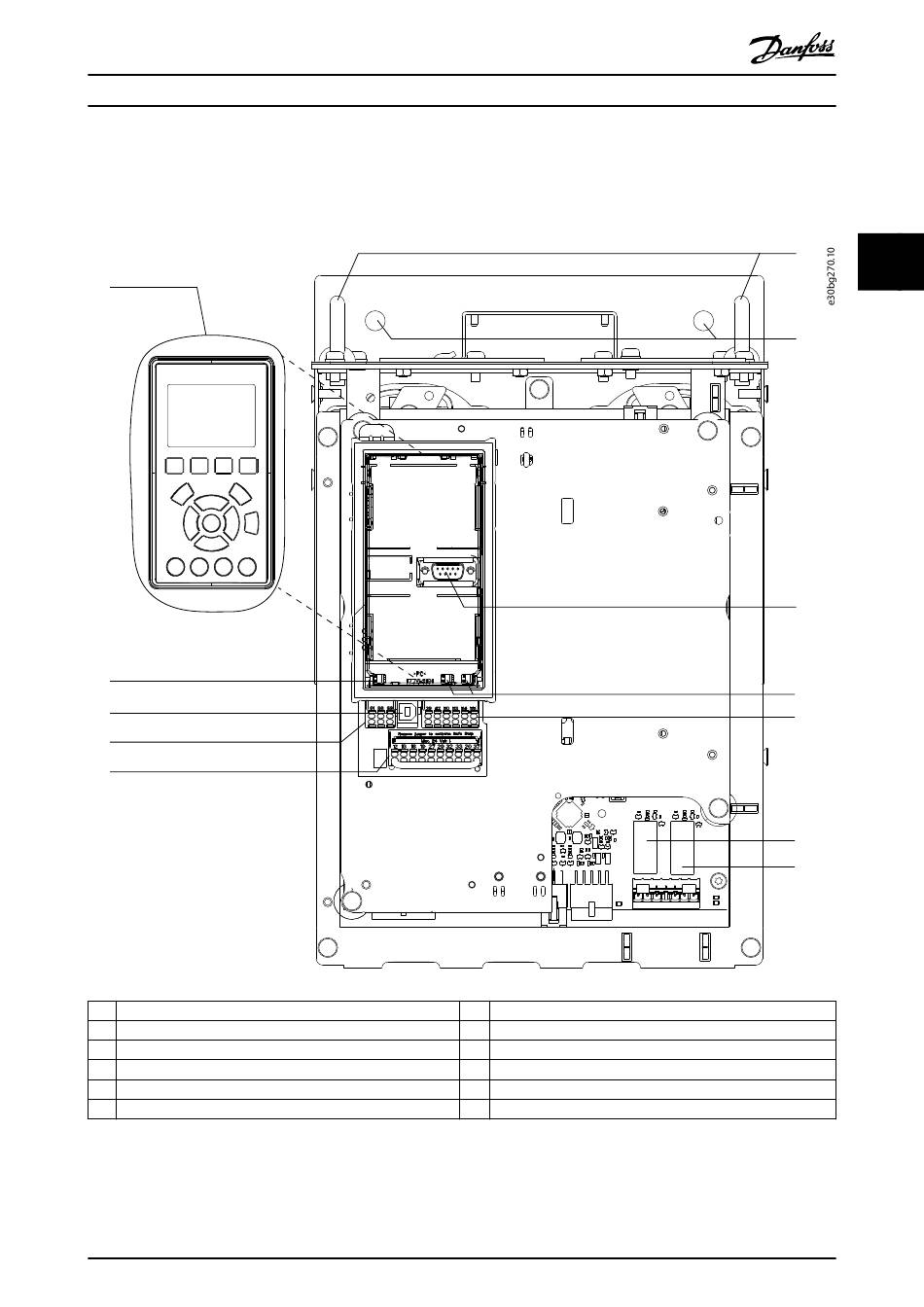

3.5 View of Control Shelf in D1h–D8h Drives
The control shelf holds the keypad, known as the local control panel or LCP. The control shelf also includes the control
terminals, relays, and various connectors.
1
2
3
4
5
1 Local control panel (LCP)
2 RS485 termination switch
3 USB connector
4 RS485 fieldbus connector
5 Digital I/O and 24 V supply
6 Lifting rings
Illustration 3.3 View of Control Shelf
MG34U502
Operating Guide
7 Mounting holes
8 LCP connector
9 Analog switches (A53, A54)
10 Analog I/O connector
11 Relay 1 (01, 02, 03) on power card
12 Relay 2 (04, 05, 06) on power card
Danfoss A/S © 09/2018 All rights reserved.
3 3
6
7
8
9
10
11
12
11
