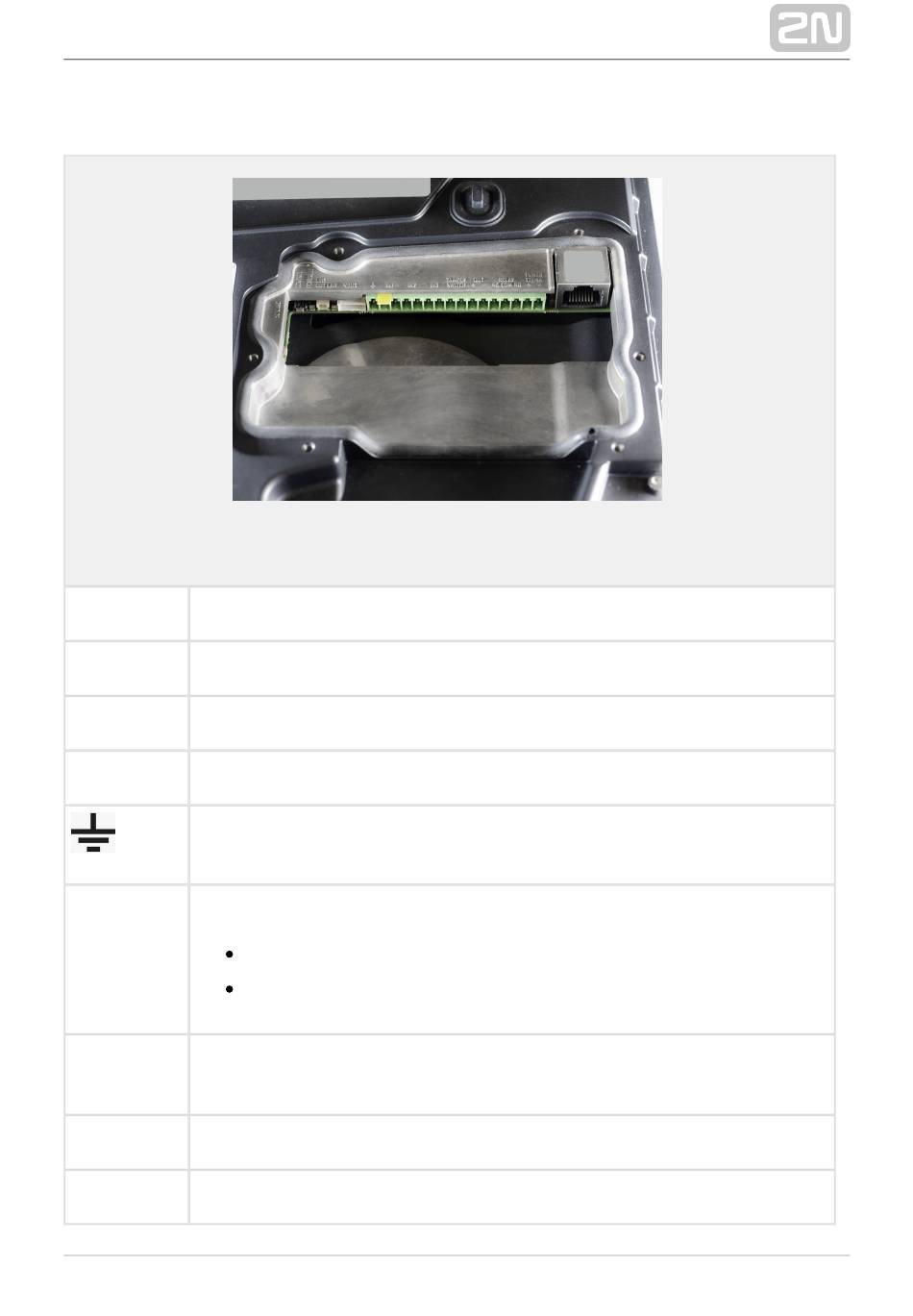

Main Unit Connectors
CONTROL Factory reset button
POWERLED Device status LED
LAN LAN connection status LED
VBUS Bus connector
Grounding terminal
IN1, IN2, IN3 Input terminals in passive / active mode (
TAMPER Security system connecting terminals (on the back side above the connectors)
SWITCH
OUT 12 V / 0.6 A DC active output
RELAY 30 V / 1 A AC/DC NO/NC contact terminals
2N TELEKOMUNIKACE a.s., www.2n.cz
Legend to the figure
OFF = open contact OR U
ON = closed contact OR U < 1.5 V
− 30 V to +30 V DC)
> 1.5 V
IN
IN
