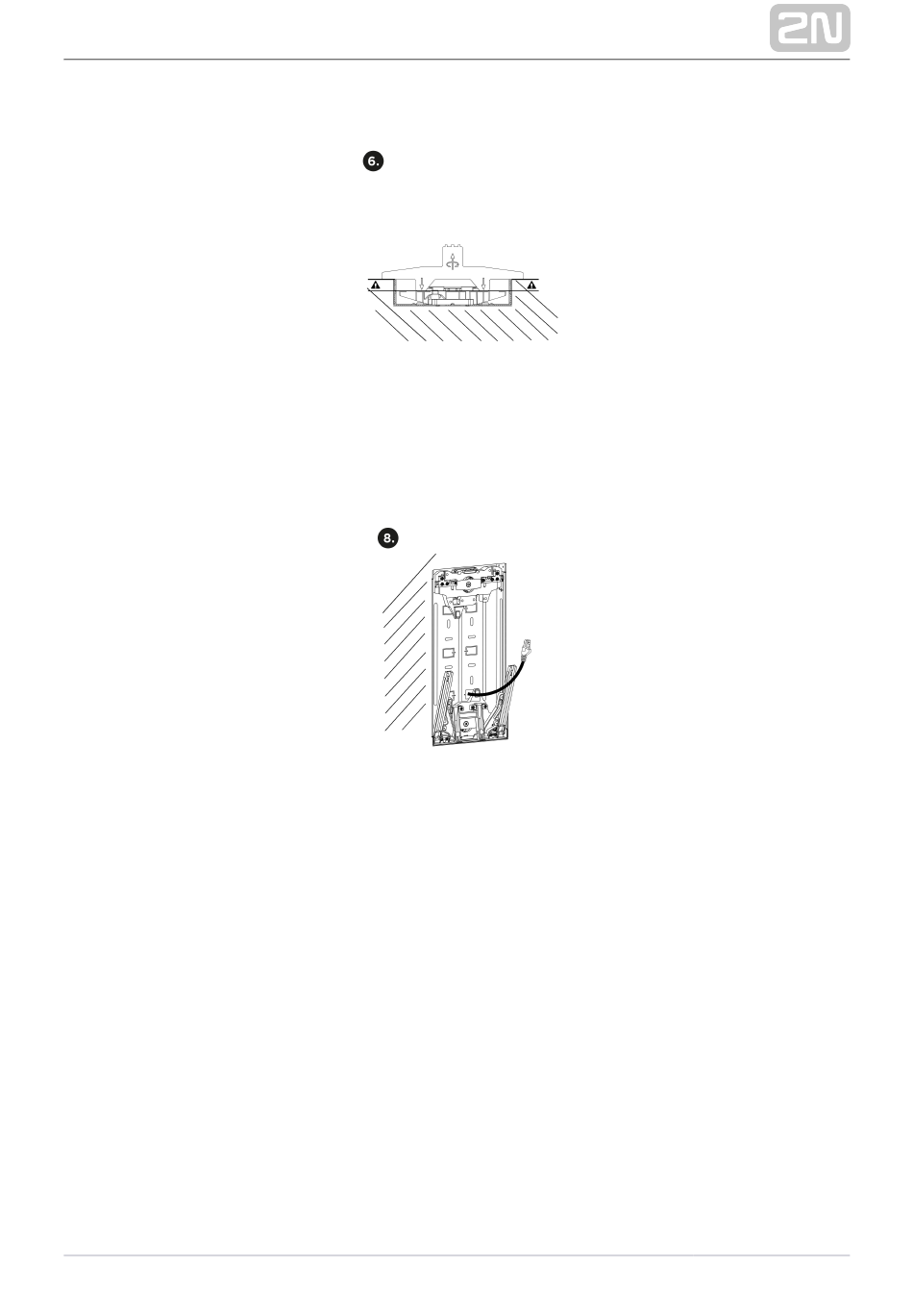

Make a hole of the size of 352 (h) x 167 (w) x 45 (d) mm for the mounting box
installation. It is supposed that all the required cables have been carried into the hole.
The recommended length of the accessible cables is 35 cm. Remove the selected
mounting box blank for cabling. Thread the cables through the selected box hole and
put the mounting box in the pre-prepared hole. Make sure that the mounting box hole
is deep enough and that the box edges are aligned with the wall surface. If the hole is
convenient, anchor the box using screws and dowels (1).
Insert the enclosed detents in the riveting nuts. Make sure that the tops of the detents
direct towards the box center against each other. The detent with 2 handles is
intended exclusively for the box bottom installation. Fit the detents with screws (2).
If the position of the detents seems to be too deep, untighten the screw to remove the
detent fixture (3), insert a levelling key in the levelling mechanism grooves and turn it
to adjust the required level (4). The levelling mechanism allows for a shift of up to 8
mm in height.
