Drill chassis anchoring holes on a proper place. Use the chassis itself as a template to
maintain the horizontal level and carry the cabling at the bottom edge of the cable
hole. The recommended length of the accessible cables is 35 cm (1).
Insert the dowels in the holes drilled and use the screws to anchor the chassis (2).
Put the brackets to the left and right sides of the support handle and fit their positions
using screws (3A).
Fit the lock counterparts to the upper chassis part, hang the handle with the brackets
to the bottom part (4B) and fit all the components using screws (3C).

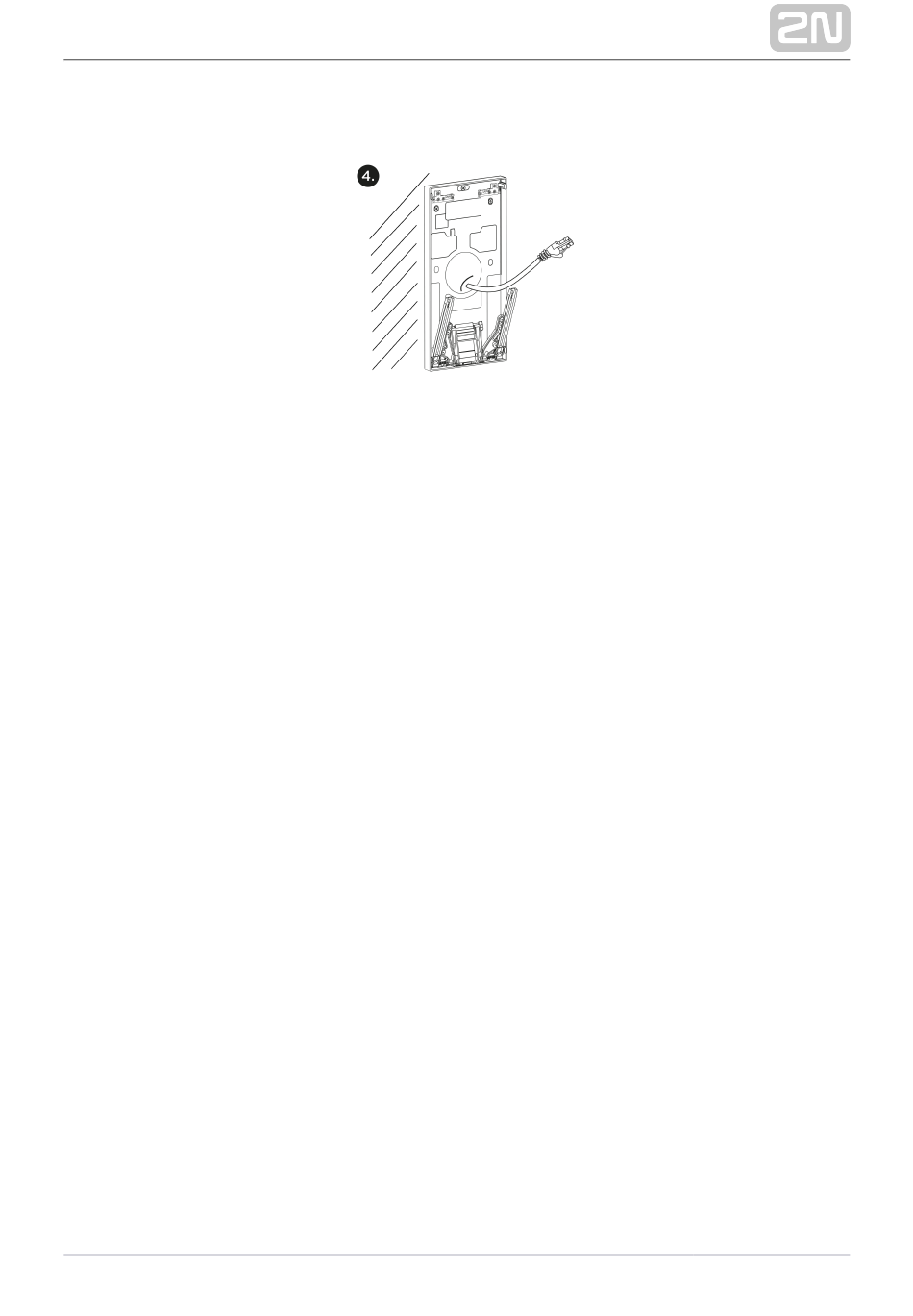

Now the chassis installation is complete (4).
