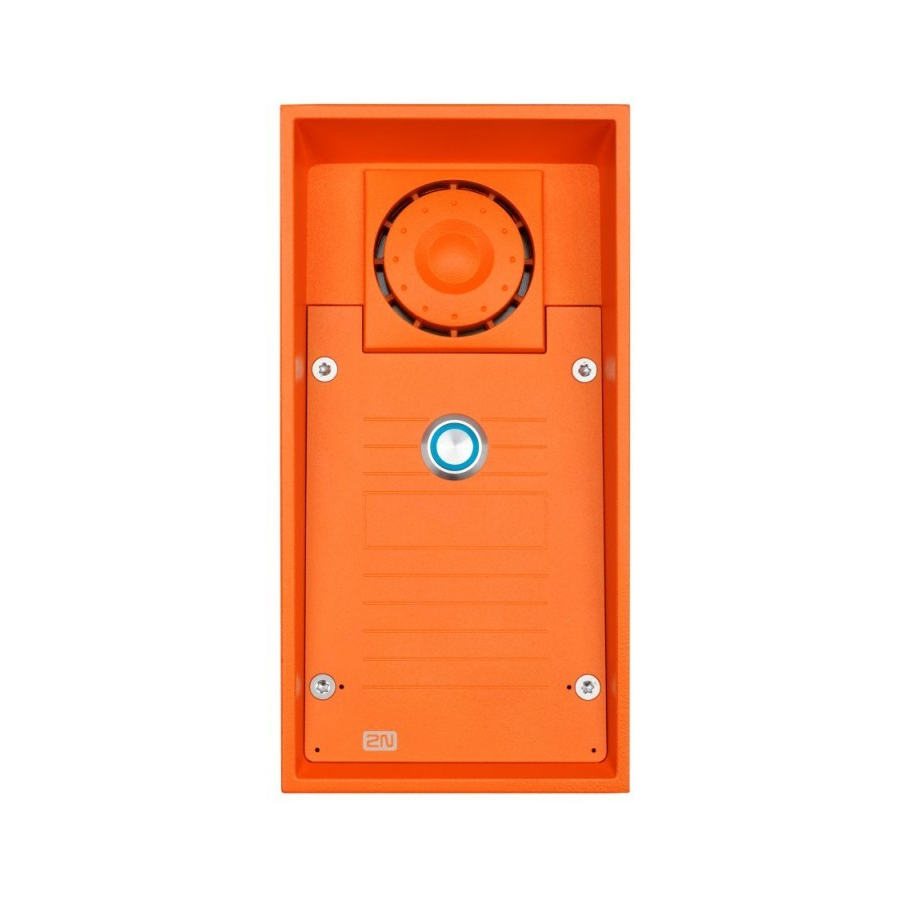

2N 9152101W Installation Manual

Emergency ip intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
2N IP Safety
Emergency IP Intercom
Installation Manual
Version:
2.13
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9152101W and is the answer not in the manual?

Questions and answers

Related Manuals for 2N 9152101W

Summary of Contents for 2N 9152101W

  • Page 1 ® 2N IP Safety Emergency IP Intercom Installation Manual Version: 2.13 www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www. faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...".
  • Page 3 The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All development, production and distribution processes of the company are managed by this standard and guarantee a high quality, technical level and professional aspect of all our products.

  • Page 4: Table Of Contents

    2.4 Extending Module Connection 3. Function and Use 3.1 Configuration 3.2 Maintenance 3.3 Downloads 4. Technical Parameters 4.1 General drawings 5. Supplementary Information 5.1 Troubleshooting 5.2 Directives, Laws and Regulations 5.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 4/85...

  • Page 5: Product Overview

    1. Product Overview Here is what you can find in this section: 1.1 Components and Associated Products 1.2 Terms and Symbols 2N TELEKOMUNIKACE a.s., www.2n.cz 5/85...
  • Page 6 LAN via a network cable and feed it from a 12 V power supply or your PoE supporting LAN. ® Configure IP Safety using your PC via any web browser. Use the ® ® Access Commander to manage extensive IP Safety systems easily and quickly. 2N TELEKOMUNIKACE a.s., www.2n.cz 6/85...
  • Page 7 Audio codecs (G.711, G.729, G.722, L16/16 kHz) HTTP server for configuration SNTP client for time synchronisation with server RTSP server for video streaming SMTP client for e-mail sending TFTP client for automatic configuration and firmware update 2N TELEKOMUNIKACE a.s., www.2n.cz 7/85...

  • Page 8: Components And Associated Products

    2 buttons with „INFO“ and „SOS“ labels 2N Part No. 9152102W 10 W loudspeaker extra robust version Axis Part No. 01354-001 control of two electric locks 2N TELEKOMUNIKACE a.s., www.2n.cz 8/85...
  • Page 9 Axis Part No. 01355-001 control of two electric locks possibility of connecting additional switch ® IP Safety units can wall mounted without requiring any additional accessories. Use the appropriate mounting box (see below) for plasterboard and flush mounting. 2N TELEKOMUNIKACE a.s., www.2n.cz 9/85...
  • Page 10 Axis Part No. 01356-001 Good to cover the edge of the intercom in flush or plasterboard installation. Brick flush mounting box 2N Part No. 9151001 Stainless steel Dimension: 132 x 223 x 83 mm Axis Part No. 01348-001 2N TELEKOMUNIKACE a.s., www.2n.cz 10/85...
  • Page 11 Plasterboard flush mounting box 2N Part No. 9151002 Dimension: 237 x 129 x 70 mm Hole: 237 x 118 mm Aixs Part No. 01349-001 2N TELEKOMUNIKACE a.s., www.2n.cz 11/85...
  • Page 12 Gooseneck stand Axis Part No. 01351-001 Height 120 cm (47 inch) to the top of the intercom 2N Part No. 9151007 Gooseneck stand double Axis Part No. 01550-001 Height 115 cm (45”) and 203 cm (80”) 2N TELEKOMUNIKACE a.s., www.2n.cz 12/85...
  • Page 13 2N Part No. 9151006 Installation adapter (US only) Axis Part No. 01352-001 2N Part No. 9151018 Security screws Axis Part No. 01345-001 An alternative that is safer than regular screws. Torx with a pin. Supplied with the appropriate handle. 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 14 91378375 WiFi version (second part no.) Axis Part No. 01668-001 ® 2N Part No. 91378375 The elegant internal touch panel, 2N Indoor Touch 2.0 , is suitable for all 2N IP intercoms . On the panel’s Axis Part No. 01670-001...
  • Page 15 2N Part No. 91378375WH WiFi version (second part no.) Axis Part No. 01669-001 ® 2N Part No. 91378376WH The elegant internal touch panel, 2N Indoor Touch , is suitable for all 2N IP intercoms . On the panel’s Axis Part No. 01671-001...
  • Page 16 Touchscreen and keyboard control. 2N Part No. 91378358 Grandstream GXV3275 VoIP telephone Axis Part No. 01421-001 GXV3275 is the successor to the popular GXV3175 model, which allows comfortable video calls in the IP network. Touchscreen control. 2N TELEKOMUNIKACE a.s., www.2n.cz 16/85...
  • Page 17 BEFO 11211MB with mechanical blocking 12 V / 230 mA DC low consumption Enables mechanically close or open the lock. When opened, the lock is open all the time. When closed, it behaves as standart electrical lock. 2N TELEKOMUNIKACE a.s., www.2n.cz 17/85...
  • Page 18 The failsafe lock is closed when electricity is switched on. When electricity is interrupted, the lock is opened. It contains a built-in contact to indicate whether the door is open or closed. FAQ: Electric locks – Difference between locks in 2N IP intercoms accesories 2N TELEKOMUNIKACE a.s., www.2n.cz 18/85...
  • Page 19 Stabilised 12 V / 2 A power supply needs to be used when no PoE is available. Part No. 932928 12 V transformer For 230 V mains voltage. For external power supply of the lock with 12 V AC voltage. 2N TELEKOMUNIKACE a.s., www.2n.cz 19/85...
  • Page 20 9137410E External IP Relay – 1 output Axis Part No. 01397-001 Standalone IP device which can be controlled by HTTP commands sent by 2N IP intercom , which can thus control devices on unlimited distance. 2N TELEKOMUNIKACE a.s., www.2n.cz 20/85...
  • Page 21 2N Part No. 9137411E External IP Relay – 4 outputs, PoE Axis Part No. 01398-001 Standalone IP device which can be controlled by HTTP commands sent by 2N IP intercom , which can thus control devices on unlimited distance. Part No. 9159013...
  • Page 22 2N Part No. 9159050 ® Induction Loop Axis Part No. 01391-001 An induction loop transmits sound wirelessly from 2N IP intercom to the earphones of people with hearing disabilities and enables them to hear and perceive sounds better. 2N Part No. 9159052 Stabilised 12 V / 2 A power supply needs to be used when no PoE is available.
  • Page 23 2N Part No. 9160501 AXIS A9188 Network I/O relay module Axis Part No. 0820-001 Lift control relay module for up to 8 floors 2N TELEKOMUNIKACE a.s., www.2n.cz 23/85...
  • Page 24 2N Part No. Enhanced Security 9137908 Axis Part No. 01379-001 2N Part No. Gold 9137909 Axis Part No. 01380-001 2N Part No. InformaCast 9137910 Axis Part No. 01381-001 2N Part No. 9137915 Axis Part No. 01382-001 2N TELEKOMUNIKACE a.s., www.2n.cz 24/85...
  • Page 25 2N Part No. Lift Module 9137916 Axis Part No. 02001-001 Refer to the Configuration Manual for 2N IP intercoms, Subs. 3.2 Function Licensing for details. For more accessories and particular advice please contact your local distributor of 2N products. 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 26: Terms And Symbols

    Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 26/85...

  • Page 27: Description And Installation

    2. Description and Installation Here is what you can find in this section: 2.1 Before You Start 2.2 Mechanical Installation 2.3 Electric Installation 2.4 Extending Module Connection 2N TELEKOMUNIKACE a.s., www.2n.cz 27/85...

  • Page 28: Before You Start

    1x Certificate of ownership Note Mounting frame is not included – it is sold separately as order no. 9152000. ® Bushing set is the same as for IP Force , but bushings are already mounted. 2N TELEKOMUNIKACE a.s., www.2n.cz 28/85...

  • Page 29: Mechanical Installation

    You can purchase the flush mounting box in advance and hire an installation professional to make the basic installation work. Moreover, the mounting box helps you align the intercom vertically (with a deviation of up to 2°). 2N TELEKOMUNIKACE a.s., www.2n.cz 29/85...
  • Page 30 The manufacturer's warranty shall be void for products damaged in this way! Note The microphone sound guides are normally loose after the front panel is removed! The screw is only used as a fall-out protection during installation. 2N TELEKOMUNIKACE a.s., www.2n.cz 30/85...
  • Page 31 Select the holes for cable supply. Insert the blanks into the other holes. Apply the cable bushings or a suitable sealant to prevent penetration of insects or water. You can also insert the small bushing in the intercom bottom hole. Put the frame on the intercom. 2N TELEKOMUNIKACE a.s., www.2n.cz 31/85...
  • Page 32 Flush Mounting – Thermally Insulated Wall What You Need: Longer screws (depending on the thermal insulation thickness) Hole: (112 x 220 x 70) mm Cut out the thermal insulation layer using the template (the same as for classic brick wall). 2N TELEKOMUNIKACE a.s., www.2n.cz 32/85...
  • Page 33 Note that the external side of the bricks gets damaged by cutting and the dowels cannot practically be fixed into the thin internal part of the bricks. Therefore, use the brick flush mounting box and follow the instructions included therein. 2N TELEKOMUNIKACE a.s., www.2n.cz 33/85...
  • Page 34 Plasterboard flush mounting box, Part No. 9151002 Hole: (118 x 237) mm Use the plasterboard flush mounting box and follow the instructions included therein. Wall Mounting What You Need: ® Just your IP Safety unit 2N TELEKOMUNIKACE a.s., www.2n.cz 34/85...
  • Page 35 Do not complete mounting until you have finished electrical installation – refer to Mounting Completion. Where cables lead along the surface, use the bushings included in the delivery. 2N TELEKOMUNIKACE a.s., www.2n.cz 35/85...
  • Page 36 Big bushing: for two cables of the diameter of 5–6 mm (UTP cable), or, upon insert replacement, for one thick cable/tube of the diameter of up to 14 mm. Small bushing: for one cable of the diameter of 5–8 mm. 2N TELEKOMUNIKACE a.s., www.2n.cz 36/85...
  • Page 37 1. Unscrew the big bushing nut completely. 2. Remove the sealing including the cover from the bushing. Cut either of the components as shown in the figures. 3. Put the bushing nut on the cable and insert the sealing. 2N TELEKOMUNIKACE a.s., www.2n.cz 37/85...
  • Page 38 5. Pull the cable connector though the bushing body into the intercom and clip it into the motherboard connector. 6. Move the sealing including the cover along the cable as far as the bushing body, or add a plug if necessary. 7. Replace and tighten the nut. 2N TELEKOMUNIKACE a.s., www.2n.cz 38/85...

  • Page 39: Electric Installation

    Factory Default Resetting (PCB version 555v5) Factory Default Resetting (PCB version 555v3 and higher) Factory Default Resetting (PCB version 555v2) Grounding Mounting Completion Available Switches Caution The device must be part of the electrical system of the building. 2N TELEKOMUNIKACE a.s., www.2n.cz 39/85...
  • Page 40 ® Picture shows the lay-out of connectors on the IP Safety printed circuit board (PCB). Cables, accessories and other system components are connected to connectors X1 through X22. ® IP Safety Connectors, PCB Version 555v2 2N TELEKOMUNIKACE a.s., www.2n.cz 40/85...
  • Page 41 ® IP Safety Connectors, PCB Version 555v3 2N TELEKOMUNIKACE a.s., www.2n.cz 41/85...
  • Page 42 X7 – Induction loop output. Connector type JST SHR-02V-S. X8 – Extending module (RFID card reader or additional switch) X10 – Buttons 1 through 4 X11 – LAN X12 – Servicing connector X13 – Keypad module 2N TELEKOMUNIKACE a.s., www.2n.cz 42/85...
  • Page 43 X19 – 12 V / 1 A DC power input LED1/2 – System status indicators LED3 – LAN connection activity indicator Output wiring diagram for Relay terminals Wiring diagram for the controlled device’s electric circuit closing 2N TELEKOMUNIKACE a.s., www.2n.cz 43/85...
  • Page 44 Wiring diagram for the controlled device’s electric circuit opening 2N TELEKOMUNIKACE a.s., www.2n.cz 44/85...
  • Page 45 PoE 802.3af (Class 0–12.95 W) technology and can be supplied directly from the LAN via compatible network elements. If your LAN ® in incompatible, insert the PoE injector, Part No. 91758100E, between 2N IP Safety and the nearest network element.
  • Page 46 The device automatically announces the current IP address. Note The delay after pressing RESET till the first light and sound signalling is set to 15–35 s depending on the 2N IP intercom/answering unit model used. ® 24 s is the valid value for IP Safety HW version 8.
  • Page 47 (approx. for another 3 s). Wait until the green LED goes off and the red LED goes on again and the acoustic signal can be heard (approx. for another 3 s). Release the RESET button. 2N TELEKOMUNIKACE a.s., www.2n.cz 47/85...
  • Page 48 Wait until the green LED goes off and the red LED goes on again and the acoustic signal can be heard (approx. for another 3 s). Wait until the red LED goes off and the acoustic signal can be heard (approx. for another 3 s). Release the RESET button. 2N TELEKOMUNIKACE a.s., www.2n.cz 48/85...
  • Page 49 Press the RESET button shortly (< 1 s) to restart the system without changing configuration. Note The time interval between the short press of RESET and reconnection ® after restart is 25–50 s for IP Safety depending on the HW version. 2N TELEKOMUNIKACE a.s., www.2n.cz 49/85...
  • Page 50 Reconnect the power supply and wait for a start signalling sound. Disconnect the device from the power supply. Move the short-circuit jumper on connector X6 into the Normal operation position. Reconnect the power supply. The device will be reset to factory default. 2N TELEKOMUNIKACE a.s., www.2n.cz 50/85...
  • Page 51 Configuration jumpers X6, PCB version 555v2: Normal operation Default setup 2N TELEKOMUNIKACE a.s., www.2n.cz 51/85...
  • Page 52 For proper grounding you need a cable of the minimum cross-section of 4 mm2. Connect the cable to the connector in the bottom part of the intercom. The connector is enclosed to the delivery. 2N TELEKOMUNIKACE a.s., www.2n.cz 52/85...
  • Page 53 (lights, e.g.). (Part No. Output Active switch output 9 up to 13 V DC depending on power supply (PoE: 9151010) 9 V; adaptor: power supply voltage minus 1 V), max 600 mA. 2N TELEKOMUNIKACE a.s., www.2n.cz 53/85...
  • Page 54 For this way of protection we recommend a diode 1 A / 1000 V (e.g., 1N4007, 1N5407, 1N5408) connected antiparallel to the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 54/85...

  • Page 55: Overvoltage Protection

    2N device wiring may be exposed to atmospheric effects resulting in overvoltage that may subsequently damage any devices installed outside the building, on its outer wall or roof. Overvoltage may damage devices connected to these wires and installed inside the building as well.
  • Page 56 OVP = overvoltage protection 2N TELEKOMUNIKACE a.s., www.2n.cz 56/85...

  • Page 57: Extending Module Connection

    (to prevent a theft, e.g.). It is recommended to use the tamper switch. ® FAQ: Tamper switch – How to install it into the 2N IP Force 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 58 (4). As the tamper switch shares the relay output (NO and NC) terminals, you cannot use the RELAY2 output with the tamper switch together. Place front panel back and tighten all four screws. 2N TELEKOMUNIKACE a.s., www.2n.cz 58/85...
  • Page 59 Module settings: Refer to the Configuration Manual for details. 2N TELEKOMUNIKACE a.s., www.2n.cz 59/85...
  • Page 60 The Security Relay is designed for any 2N IP intercom model with firmware versions 1.15 and higher. It significantly enhances security of the connected electric lock as it prevents lock opening by forced intercom tampering. 2N TELEKOMUNIKACE a.s., www.2n.cz 60/85...
  • Page 61 (typically behind the door). The device is powered and controlled via this two-wire cable and so can be added to an existing installation. Thanks to its compact dimensions, the device can be installed into a standard mounting box. 2N TELEKOMUNIKACE a.s., www.2n.cz 61/85...
  • Page 62 To the passive output in series with the external power supply. The device also supports a Departure button connected between the ‘PB’ and ‘- HeliosIP/IP Intercom’ terminals. Press the Departure button to activate the output for 5 seconds. 2N TELEKOMUNIKACE a.s., www.2n.cz 62/85...
  • Page 63 (the green LED is blinking). Caution In case of resetting the factory default settings on a device with a version of firmware 2.18 or higher it is necessary to reprogram the ® Security Relay using the instructions above. 2N TELEKOMUNIKACE a.s., www.2n.cz 63/85...
  • Page 64 ® FAQ: 2N Security Relay – what it is and how to use it with 2N IP intercom? Connection: Induction Loop ® Induction Loop (Part No. 9159050 – Induction loop amplifier for 2N IP intercom Part No. 9159054 – Induction loop amplifier without...
  • Page 65 B connector. Connect the special cable to the intercom and connect the power supply to the mains. You can place the mated A and B connectors into the 2N IP intercom cover. The connectors help you connect stripped cables. Open the connector by pushing a thin screwdriver onto the white spots at its front and close the connector by sliding the movable part through a side gap.
  • Page 66 Output short-circuit resistance: unlimited time Frequency characteristics: 100 Hz – 5 KHz ±3 dB Temperature range: -20 – +50 °C Covering: IP65 (with round cable of 5–10 mm diameter) Dimensions: 144 x 100 x 31 mm Weight: 0.3 kg 2N TELEKOMUNIKACE a.s., www.2n.cz 66/85...

  • Page 67: Function And Use

    3. Function and Use ® In this section we describe the basic and extending functions of the 2N IP Safety product. Here is what you can find in this section: 3.1 Configuration 3.2 Maintenance 3.3 Downloads 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 68: Configuration

    IP Safety in the static IP ® address mode. Refer to the Configuration manual for 2N IP intercoms for 2N Safety configuration details. If your device remains inaccessible (you have forgotten the IP address, or the LAN configuration has changed, for example), change the LAN settings using the buttons on the device.
  • Page 69 Note Be sure to press the button sequence within thirty seconds after the sound signal for security reasons. Up to 2 s intervals are allowed between the presses. 2N TELEKOMUNIKACE a.s., www.2n.cz 69/85...
  • Page 70 The 15 times 1 sequence must be entered within 30 seconds after the first sound signal for security reasons. The inter-digit delay may be 2 s at most. The static IP address mode will be switched into the dynamic IP address mode and vice versa upon restart. 2N TELEKOMUNIKACE a.s., www.2n.cz 70/85...

  • Page 71: Maintenance

    We recommend using cleaning wipes designed for IT / electronic items. Warning Avoid peroxide-based cleaners. ® IP Safety models of Part Nos. 9152101 , 9152102 and 9152101M may be cleaned with WAP high pressure washers. 2N TELEKOMUNIKACE a.s., www.2n.cz 71/85...
  • Page 72 ® IP Safety contains no environmentally harmful components. When the product's service life is exhausted and you would like to dispose of it please do so in accordance with applicable legal regulations. 2N TELEKOMUNIKACE a.s., www.2n.cz 72/85...

  • Page 73: Downloads

    3.3 Downloads Software ® Network Scanner 2N TELEKOMUNIKACE a.s., www.2n.cz 73/85...

  • Page 74: Technical Parameters

    Audio stream Protocols: RTP / RTSP Codecs: G.711, G.729, G.722, L16/16 kHz Video stream Protocols: RTP / RTSP / HTTP Codecs: H.263, H.263+, H.264, MPEG-4, M-JPEG IP camera function: Yes, ONVIF v2.4 profile S compatible 2N TELEKOMUNIKACE a.s., www.2n.cz 74/85...
  • Page 75 Low quality: QVGA (320 x 240), 10 fps, quality 70: 435 kbps with headers Medium quality: VGA (640 x 480), 15 fps, quality 85: 506 kbps High quality: SXGA (1280 x 960), 15 fps, quality 95: 8 Mbps 2N TELEKOMUNIKACE a.s., www.2n.cz 75/85...
  • Page 76 242 x 136 x 83 mm incl. frame Weight: netto max. 2 kg / brutto max. 2,5 kg Covering level: IP65 , IP69K (91521xxxW) Resistance level: IK10 UL294 levels Attack, Security, Line Security – Level I Endurance – Level IV 2N TELEKOMUNIKACE a.s., www.2n.cz 76/85...

  • Page 77: General Drawings

    4.1 General drawings Surface mounting 2N TELEKOMUNIKACE a.s., www.2n.cz 77/85...
  • Page 78 Flush mounting Plasterboard mounting Flush mounting with box 2N TELEKOMUNIKACE a.s., www.2n.cz 78/85...

  • Page 79: Supplementary Information

    5. Supplementary Information Here is what you can find in this section: 5.1 Troubleshooting 5.2 Directives, Laws and Regulations 5.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 79/85...

  • Page 80: Troubleshooting

    5.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz 2N TELEKOMUNIKACE a.s., www.2n.cz 80/85...

  • Page 81: Directives, Laws And Regulations

    Consult the dealer or an experienced radio/TV technician for help Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 81/85...
  • Page 82 2N TELEKOMUNIKACE a. s. is not liable neither for any limitation of such a product’s functionality, nor for any damage, loss or injury relating to such a potential limitation of functionality.

  • Page 83: General Instructions And Cautions

    The consumer shall, at its own expense, obtain software protection of the product. The manufacturer shall not be held liable and responsible for any damage incurred as a result of the use of deficient or substandard security software. 2N TELEKOMUNIKACE a.s., www.2n.cz 83/85...
  • Page 84 Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 84/85...
  • Page 85 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v2.13 2N TELEKOMUNIKACE a.s., www.2n.cz 85/85...
