62 4.10: Batch settings mode
Call notification area in the footer for one high priority call
In this example, pop-up notification is disabled and notification for lines is enabled. The call notification
area in the footer displays an incoming high priority call. The lower portion of the call indicator in the
footer displays the high priority call color and the top of the indicator shows the button background
color. These colors are the same as the associated button for line 1002-1 in the button sheet.

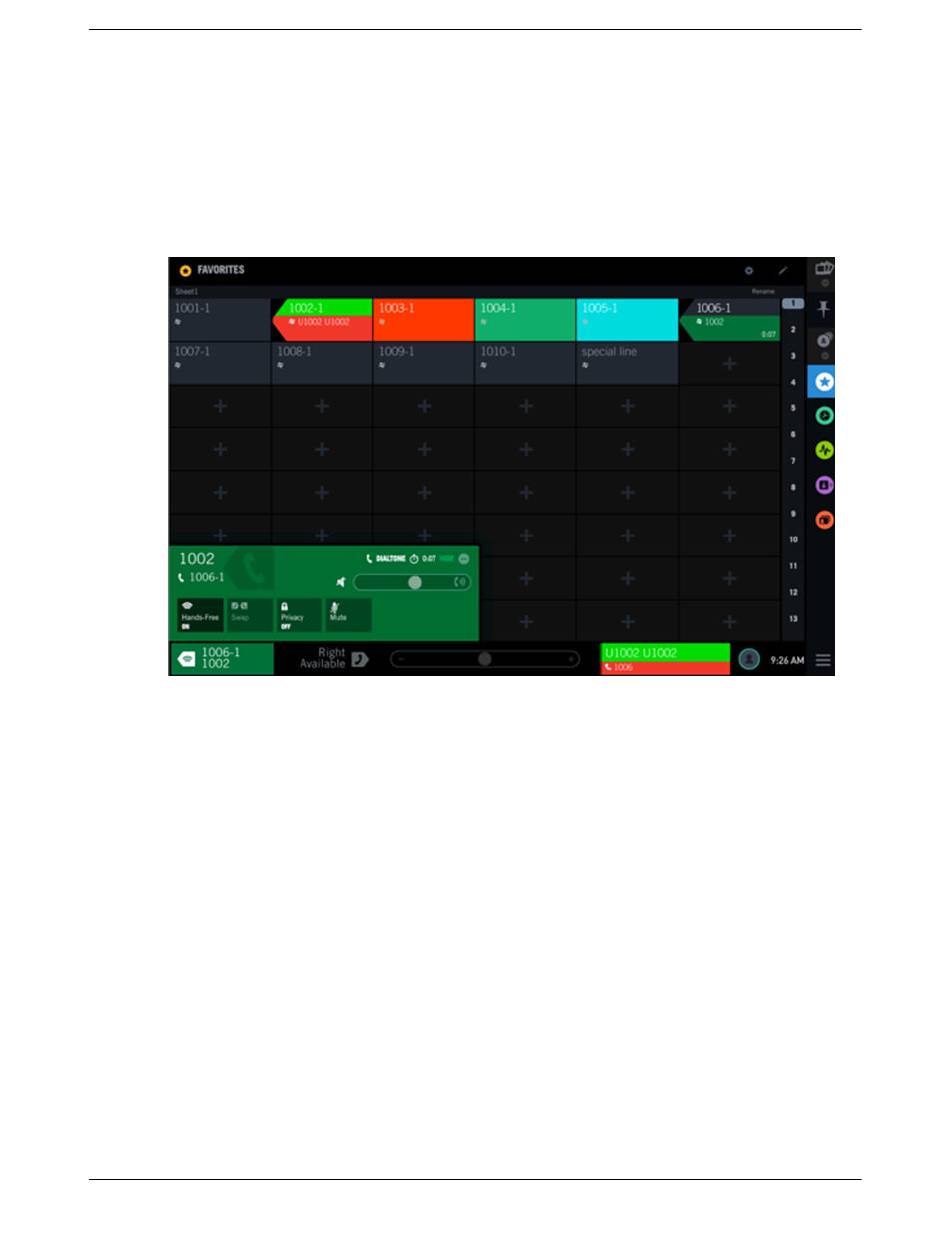

Figure 39: Call notification footer area – single high priority call
Call notification footer area for multiple incoming calls with the same priority
This example shows the color displayed in the call notification footer area when three low priority calls
are pending. The indicator displays only the color assigned to low priority calls (orange) and the number
of pending calls. The associated buttons for these calls, 1003-1, 1005-1, and 1009-1, are shown in the
button sheet. If the calls were all high priority calls, the indicator in the footer would display only the
high priority call color.
