1
Introducing IQ/MAX TOUCH
1.1

IQ/MAX TOUCH turret

The IQ/MAX TOUCH turret, the successor to the IQ/MAX turret, offers traders the latest in high-speed
voice communications technology.
The primary user interface of the IQ/MAX TOUCH turret is a large touch screen area which can display
up to three applications simultaneously. This unit is called the Primary Module. An IQ/MAX TOUCH
turret can be paired with a second unit, an Expansion Module, that increases the total number of
simultaneous applications to six. The Expansion Module is designed and recommended to be positioned
to the left when facing the Primary Module. The user interface allows traders to customize their work
area to meet their needs, while keeping core call and handset management features available at all times.

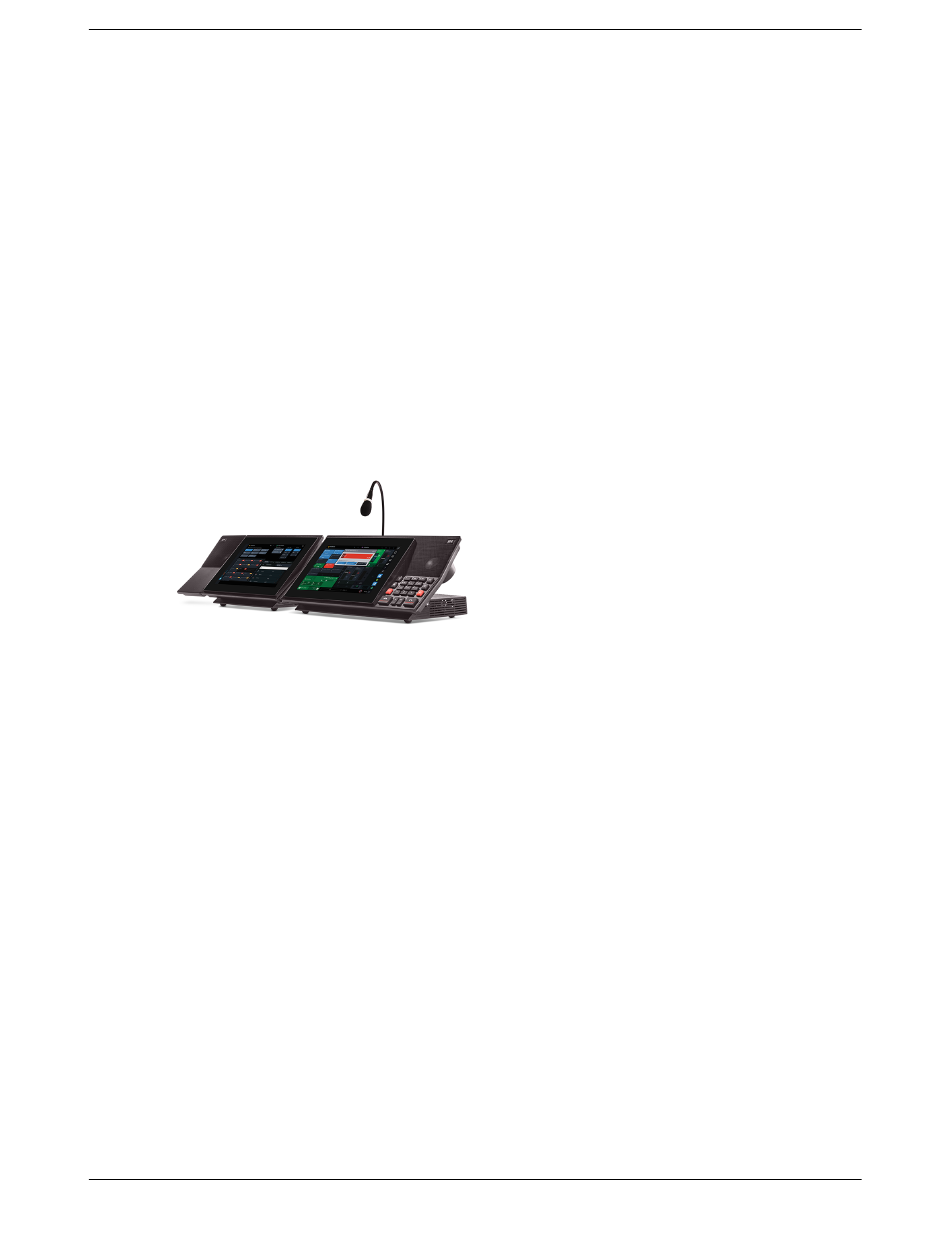

Figure 1: IQ/MAX TOUCH turret
Turret features and functionality are implemented in applications (apps), which can be started, resized,
rearranged, and closed, as needed by the trader. Each screen of a turret can run one, two, or three apps at
a time. When more than one app is run at a time, they are tiled vertically across the screen. Apps can be
run at full screen, half screen, or third screen sizes.
The apps are managed through intuitive drag and drop gestures, using a Navigation Bar (Navbar), which
is always present on the screen.
The IQ/MAX TOUCH turret provides the following key features and functionality:
•
A touch screen user interface.
•
Core applications, including Favorites, Directory, Call History, Speakers, and Activity Monitor.
•
A Primary Module that can be paired with an Expansion Module to increase the number of running
applications from three to six.
•
An external speaker that can be added in addition to the internal speaker on the Primary Module.
•
Customizable work area, enabling you to arrange up to three applications per module to suit your
needs. Some applications can have up to three copies (clones) open at once. The customization can be
saved and stored in a Snapshot.
•
Speakers application that supports up to 32 channels.
IQ/MAX Sync provides turret users with a Soft Client that can be used to manage a turret from a laptop
or desktop computer.
For detailed information about the Primary Module, the Expansion Module, and other IQ/MAX TOUCH
turret hardware components, see the IQ/MAX TOUCH Turret Hardware Installation Manual.
