152 10.6: Set up speaker channels

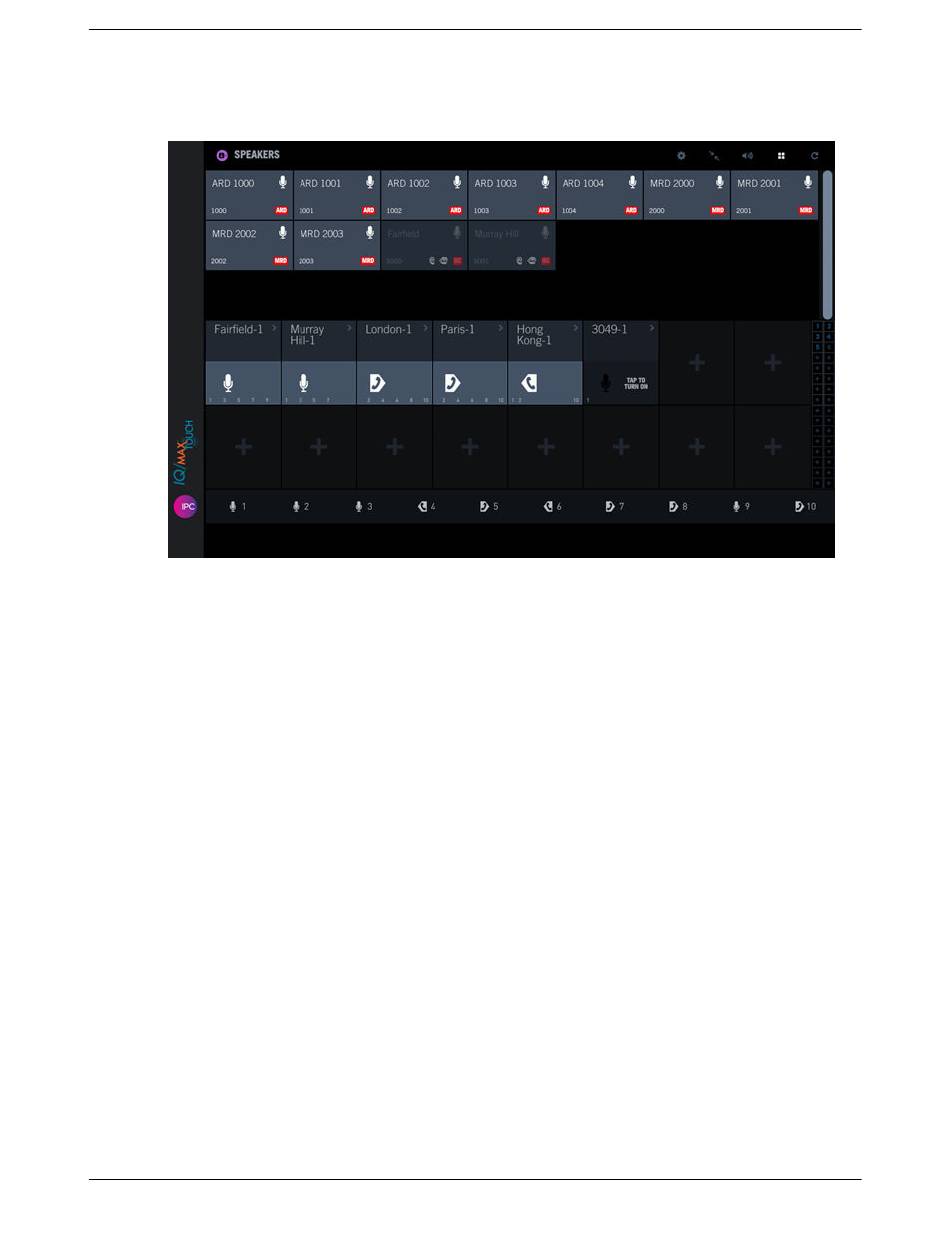

Figure 69: Speakers directory
10.6.1.2 Assign or replace a speaker channel from Speakers directory
Assign a line to an empty speaker channel or replace a speaker channel assignment from Speakers
directory. You can assign a line to the first available speaker channel or select a speaker channel to be
assigned.
For background information, see
1. Tap the Speakers icon in the Navbar.
The Speakers application is displayed. See
2. To assign a line to the first available speaker channel:
a) Tap the
Speakers directory
The Speakers directory is displayed.
b) Tap an entry in Speakers directory. Swipe to scroll through the list as needed.
The line is assigned to the first available speaker channel.
3. To assign a line to an empty speaker channel that you select:
a) Tap the
+
The contextual menu is displayed.
b) Tap
Add from Speaker Directory
The Speakers directory is displayed.
c) Tap an entry in Speakers directory that you want to assign to the empty speaker channel.
The line is assigned to the speaker channel.
4. To replace a speaker channel assignment:
a) Select a speaker channel to be replaced.
b) Tap the
>
The contextual menu is displayed.
August 26, 2019
Speakers directory
icon in the Speakers application header bar.
icon on a speaker channel, which denotes an empty speaker channel.
.
icon in the speaker label of the selected speaker channel.
on page 150.
Speakers on a hard turret on page 128 for an illustration.
