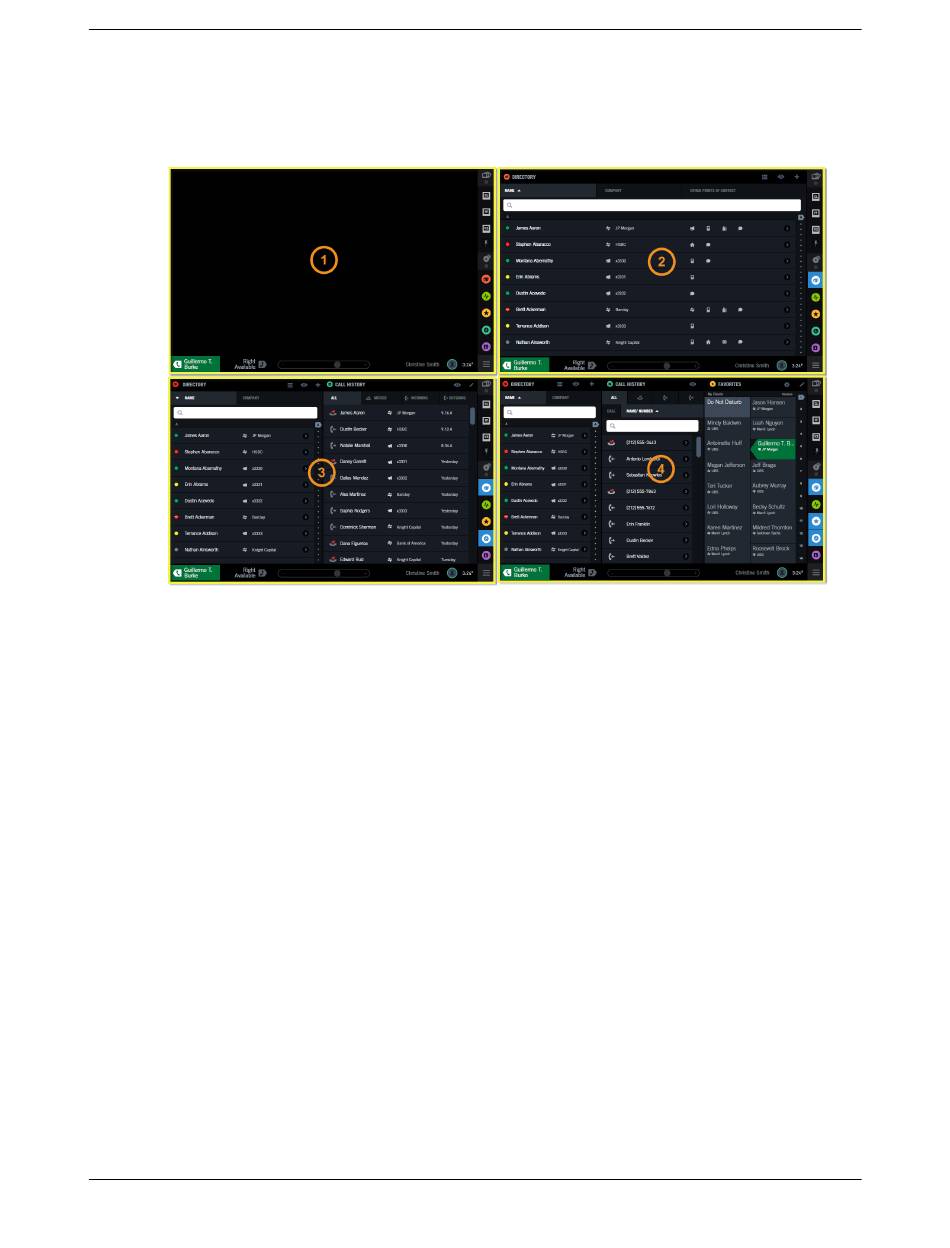

Figure 8: Four views of the screen (no applications, full size, half size, and third size) on a Primary
Module
A default snapshot is provided, and is displayed when you log on. This default snapshot can be removed.
On a Primary Module, when you log on and have no snapshots defined, the screen will show no
applications.
Views and Expansion Module
If your IQ/MAX TOUCH is also equipped with an Expansion Module, the screen of the Expansion
Module can also contain up to three applications.
With an Expansion Module, you can close all applications on one screen as long as one application is
running on the other screen.
2.3.2

Positioning guide

The positioning guide is invoked when you tap or drag to open an application from the navbar or drag an
open application using the application's header bar.
Depending upon the number of IQ/MAX TOUCH modules, how many applications are currently
displayed, and what screen location you drag an application to, the positioning guide provides possible
location options.
If no application is displayed on the screen, you can place any one application full size on the screen.
You can also position up to two more applications to the left or right of that application. The positioning
guide also allows you to replace an open application and move applications around. When the
positioning guide appears, the applications beneath it are no longer viewable.
The following figure illustrates the positioning guide when two applications are running on a Primary
Module and you start to drag over a third. If you keep dragging, the positioning guide indicates when
you are in the position to add the application to the middle or to the left of the current applications or if
you are in a position to replace a current application.
IPC Proprietary
2.3: Application area
IQ/MAX TOUCH Turret User Guide
25
Unigy 4.3
